Transmission Connector Layout





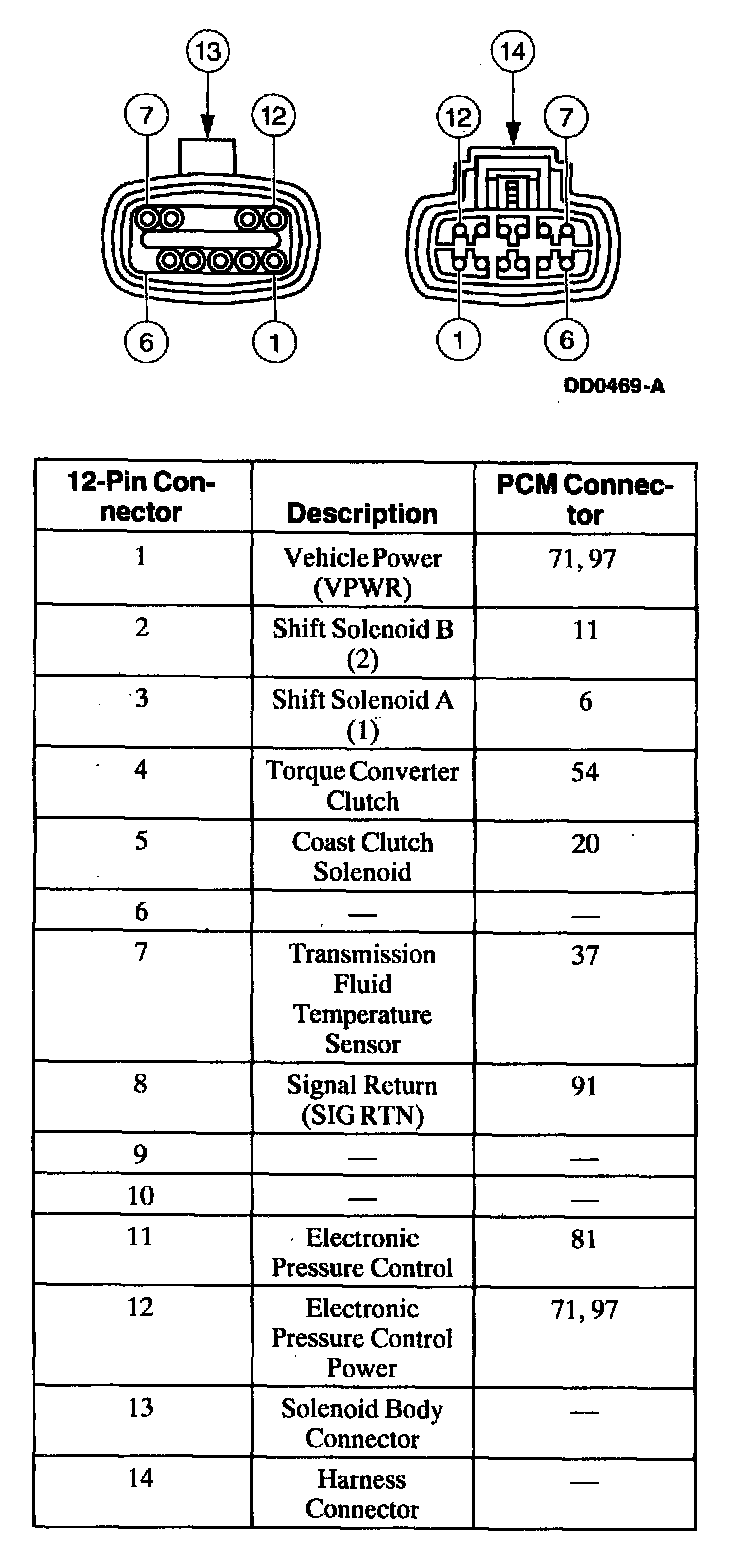

Transmission Vehicle Harness Connector





Digital Transmission Range (TR) Sensor Connector








Output Shaft Speed (OSS) Sensor Harness Connector








Turbine Shaft Speed Sensor (TSS) Harness Connector
