Test A: Speed Control Is Inoperative

A1:

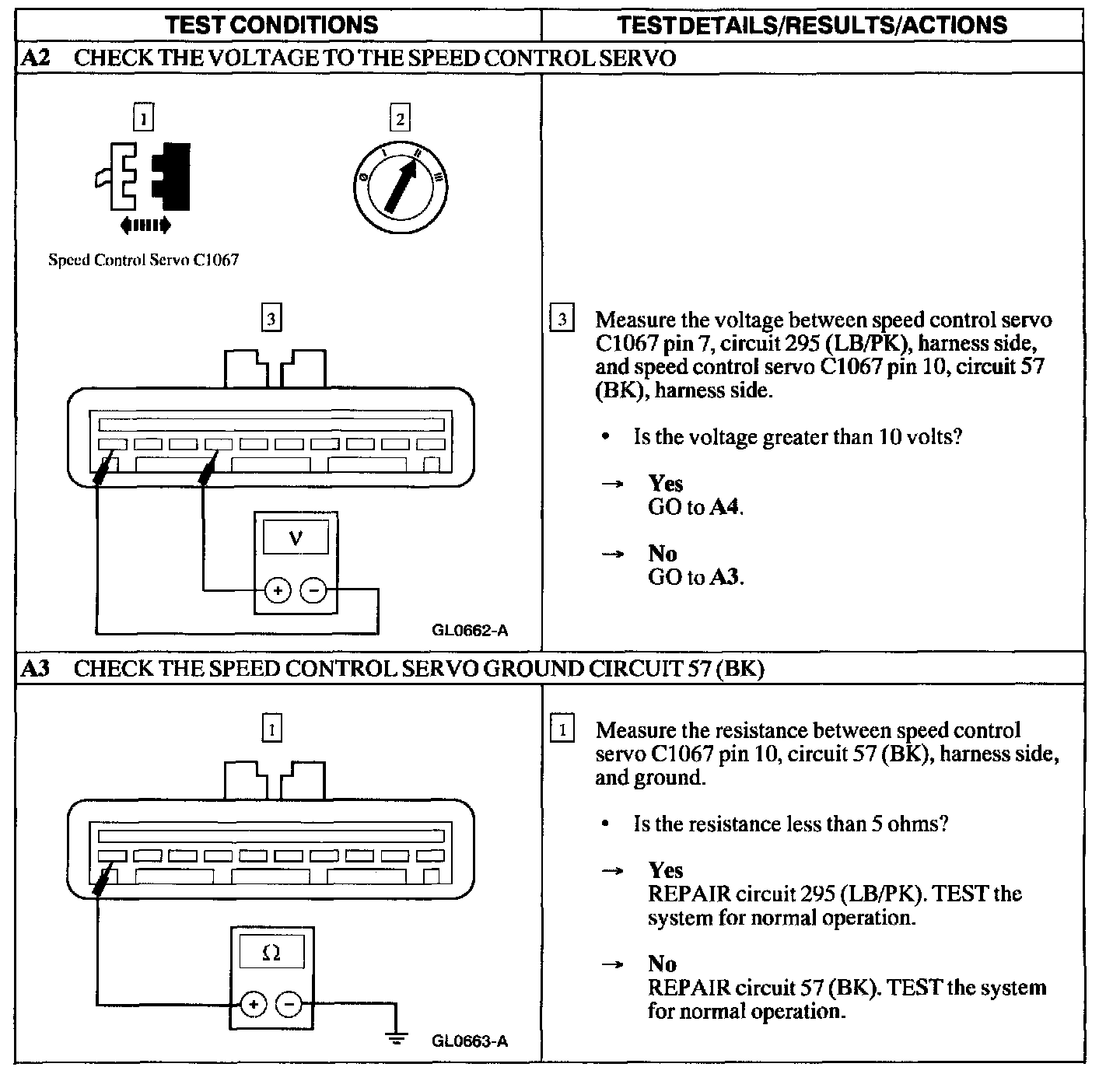

A2 - A3:

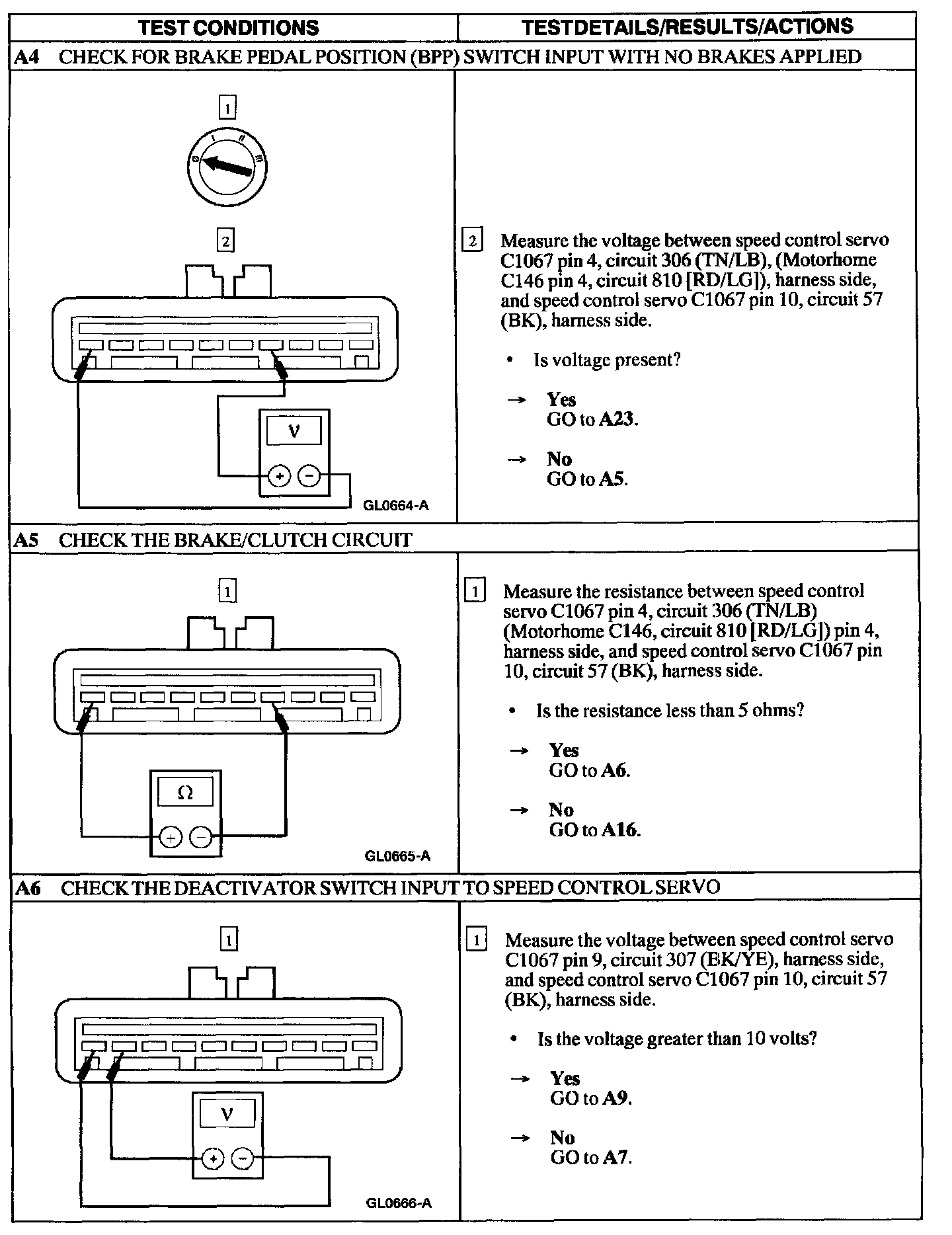

A4 - A6:

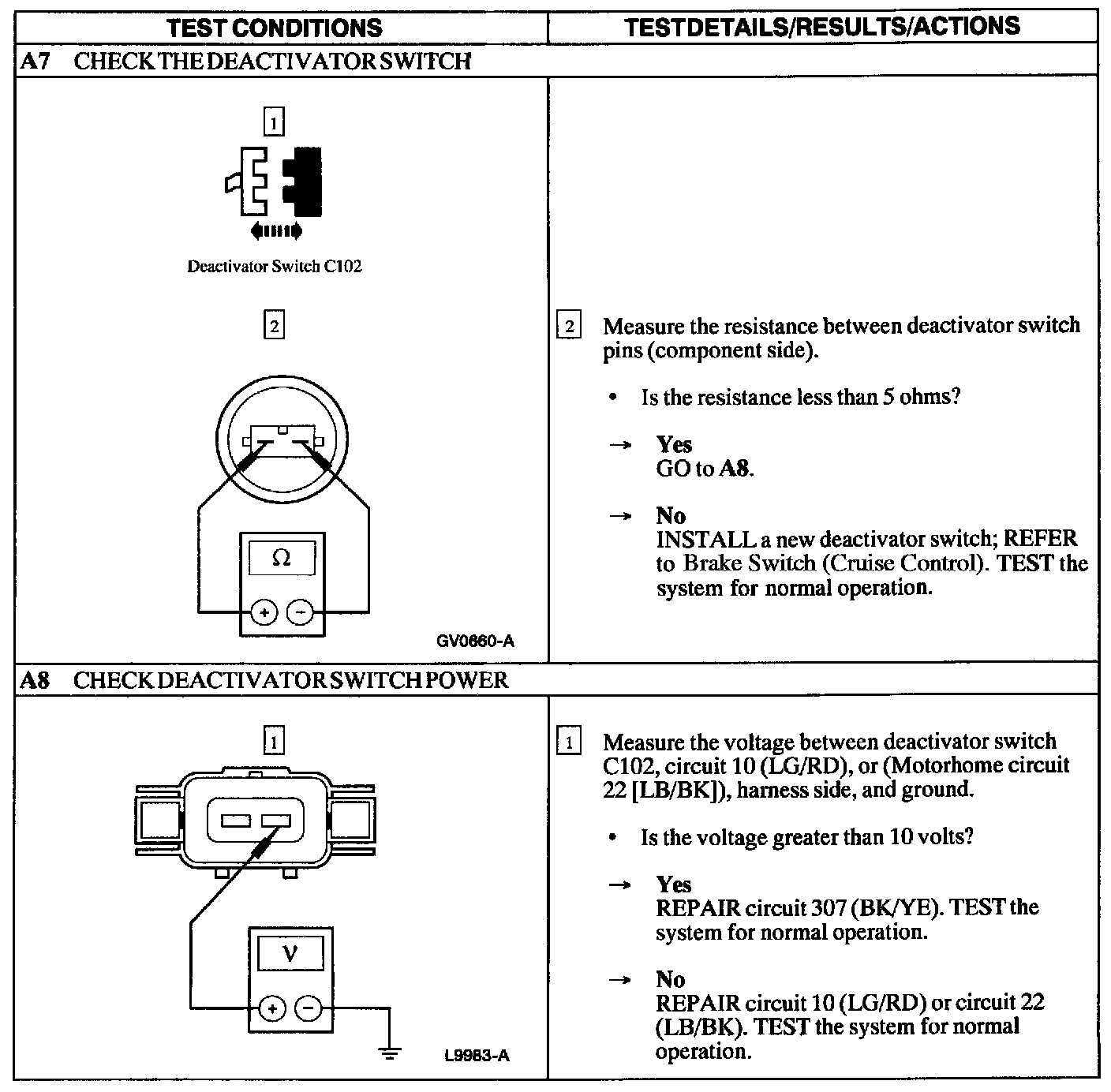

A7 - A8:

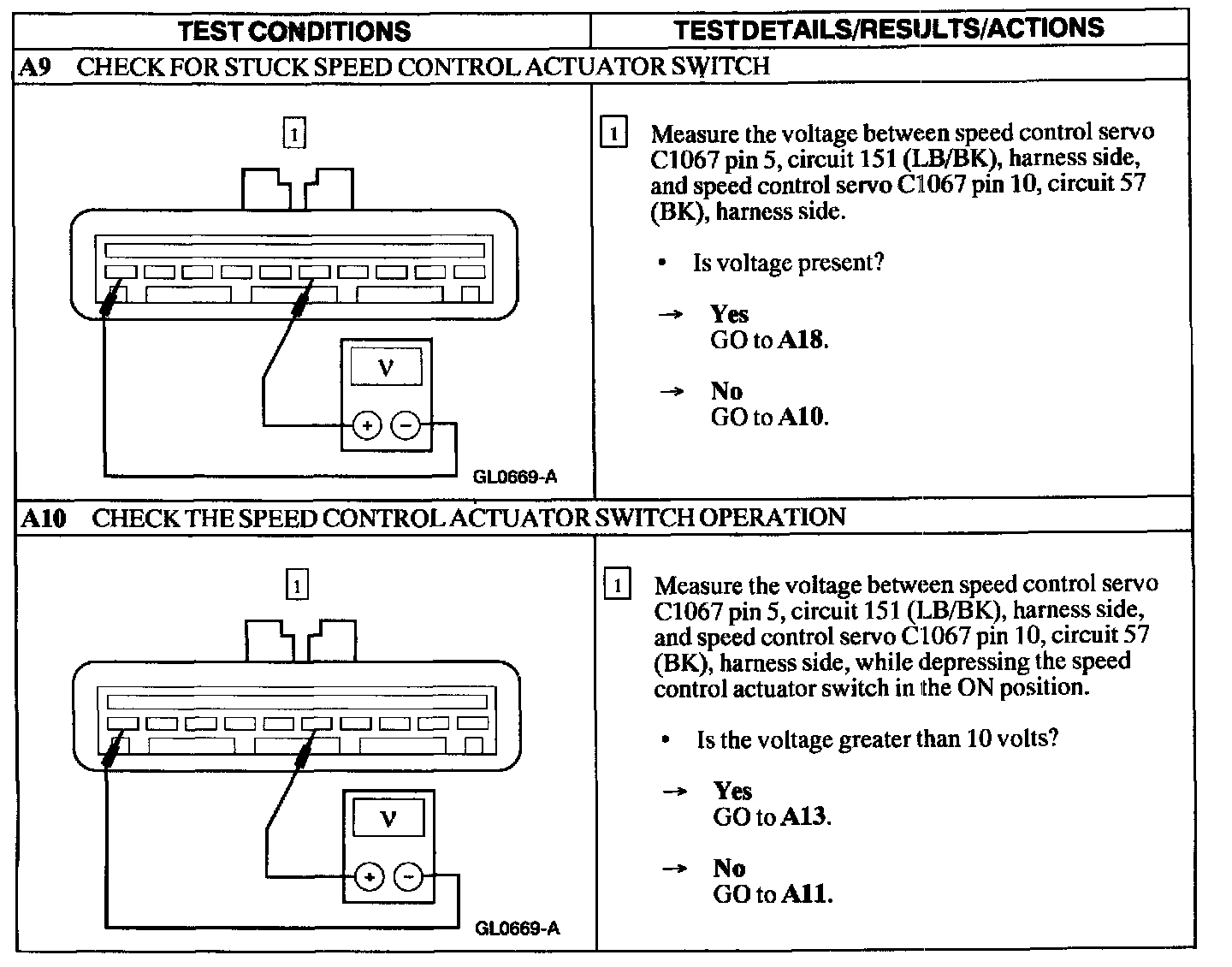

A9 - A10:

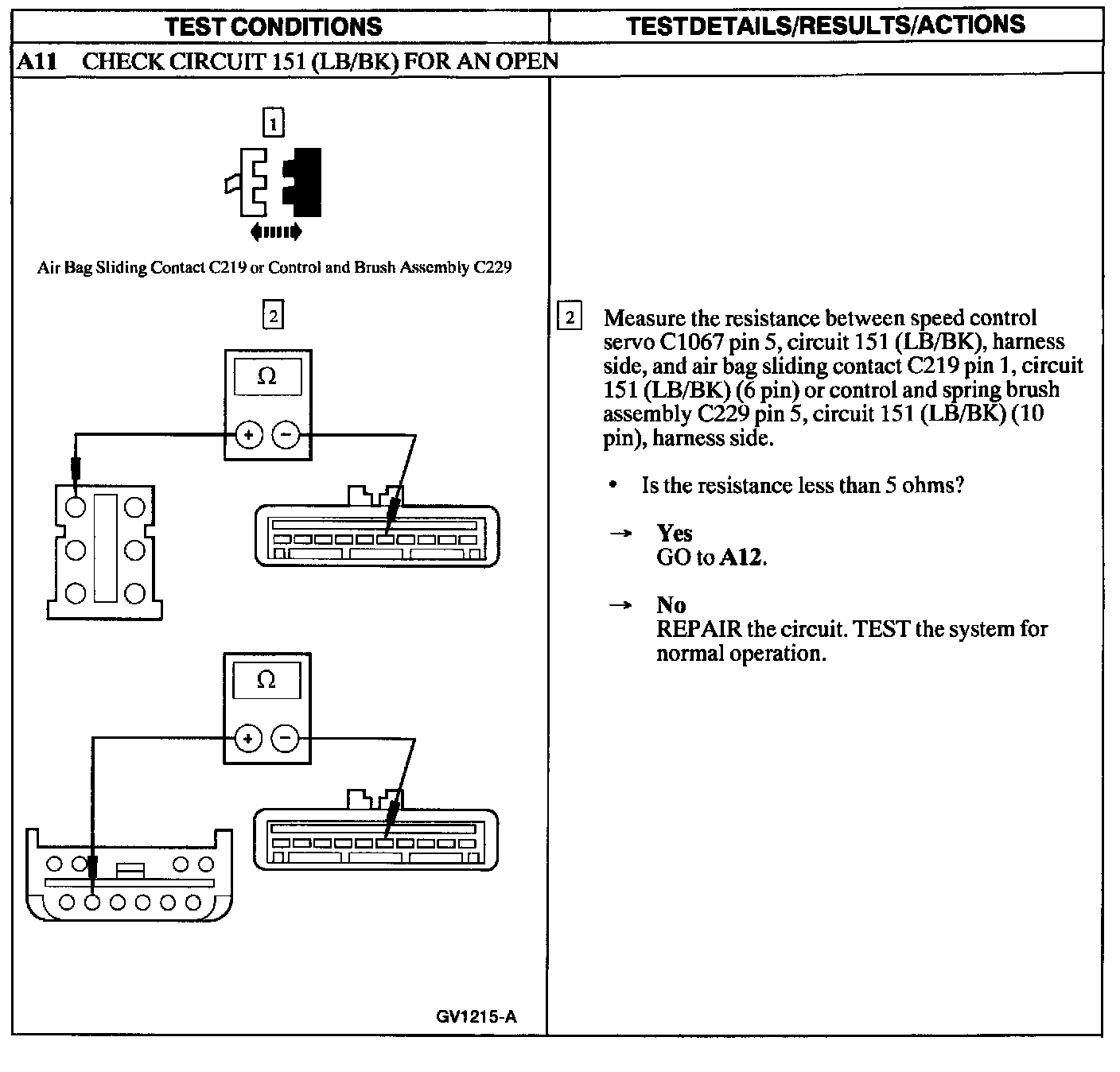

A11:

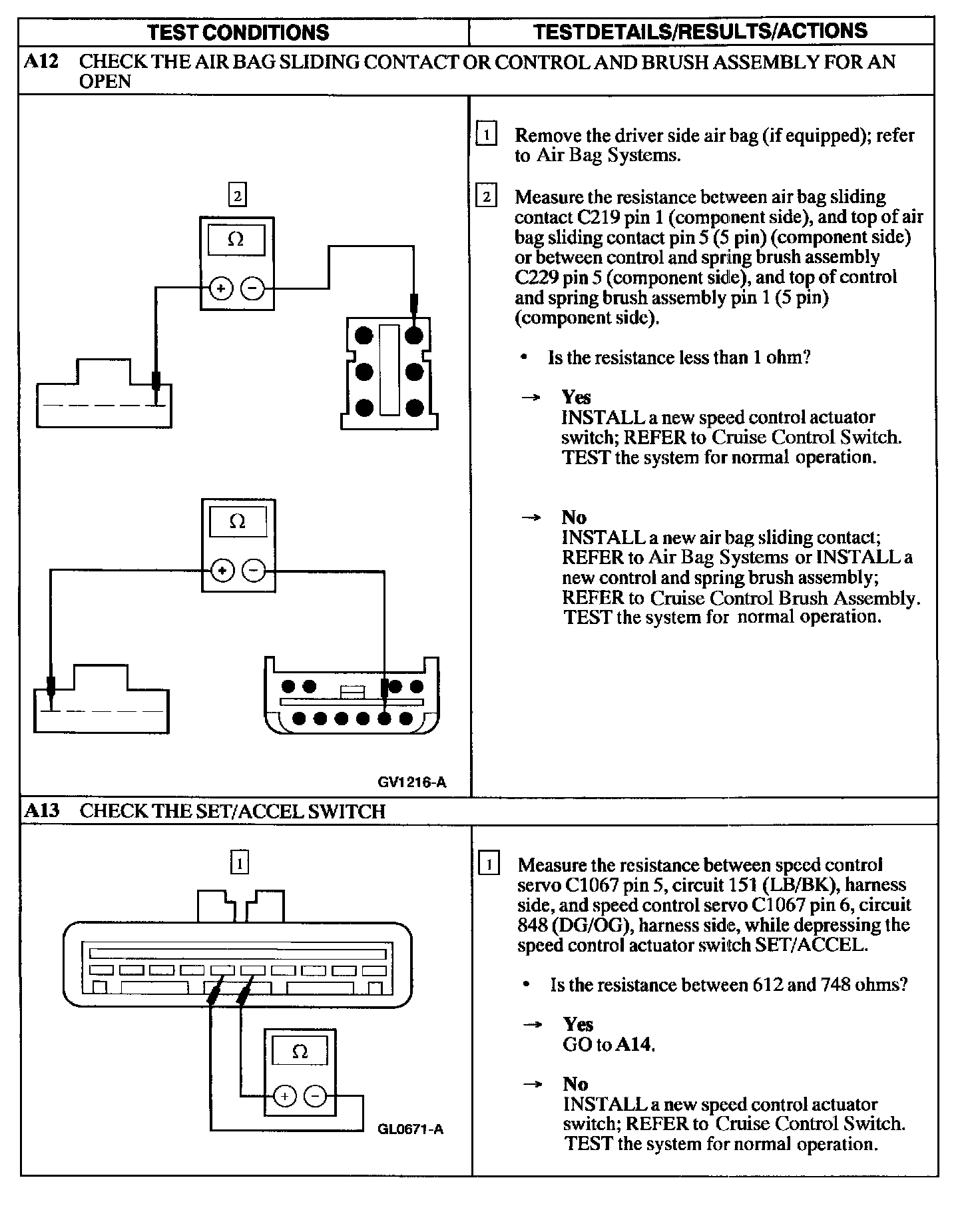

A12 - A13:

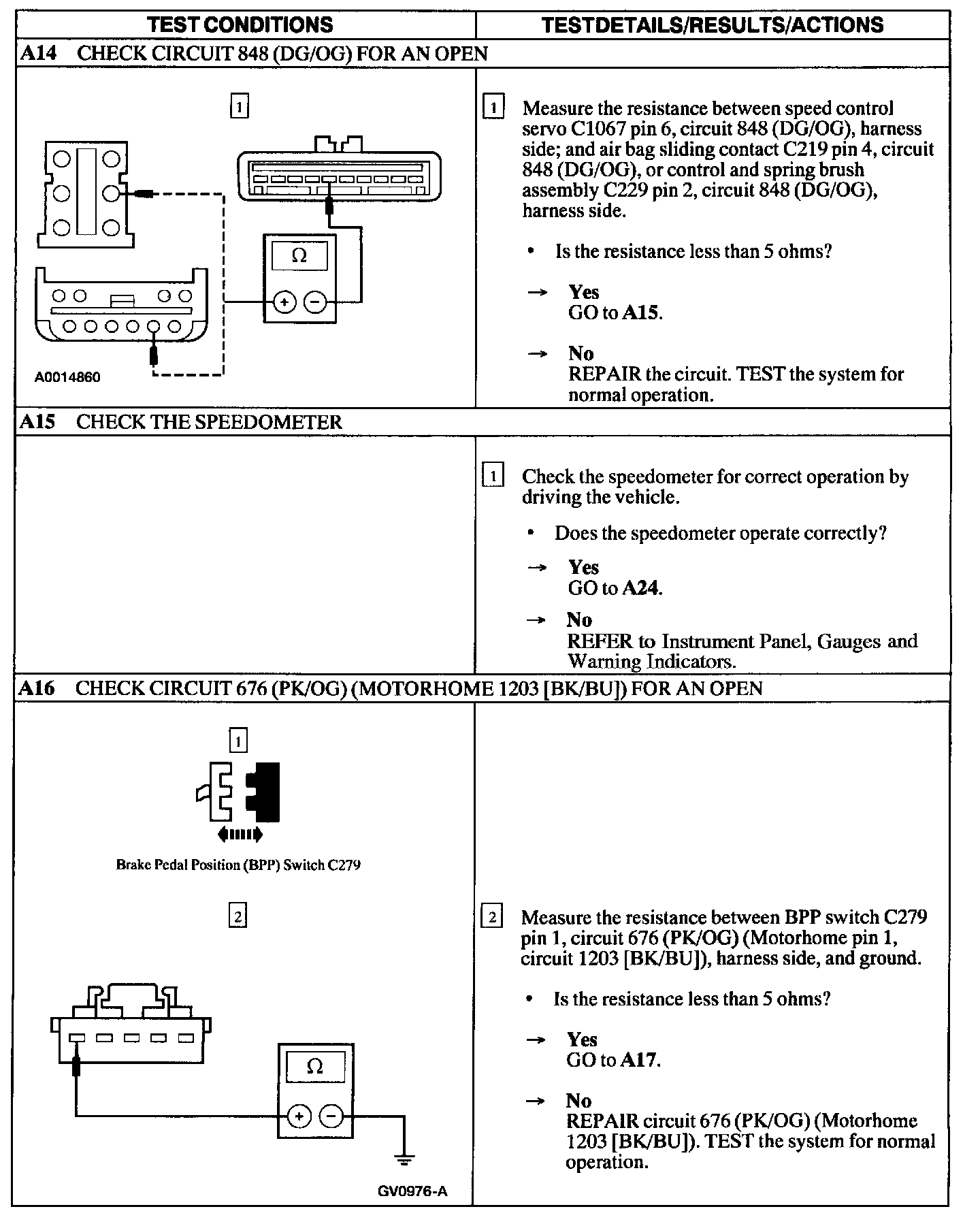

A14 - A16:

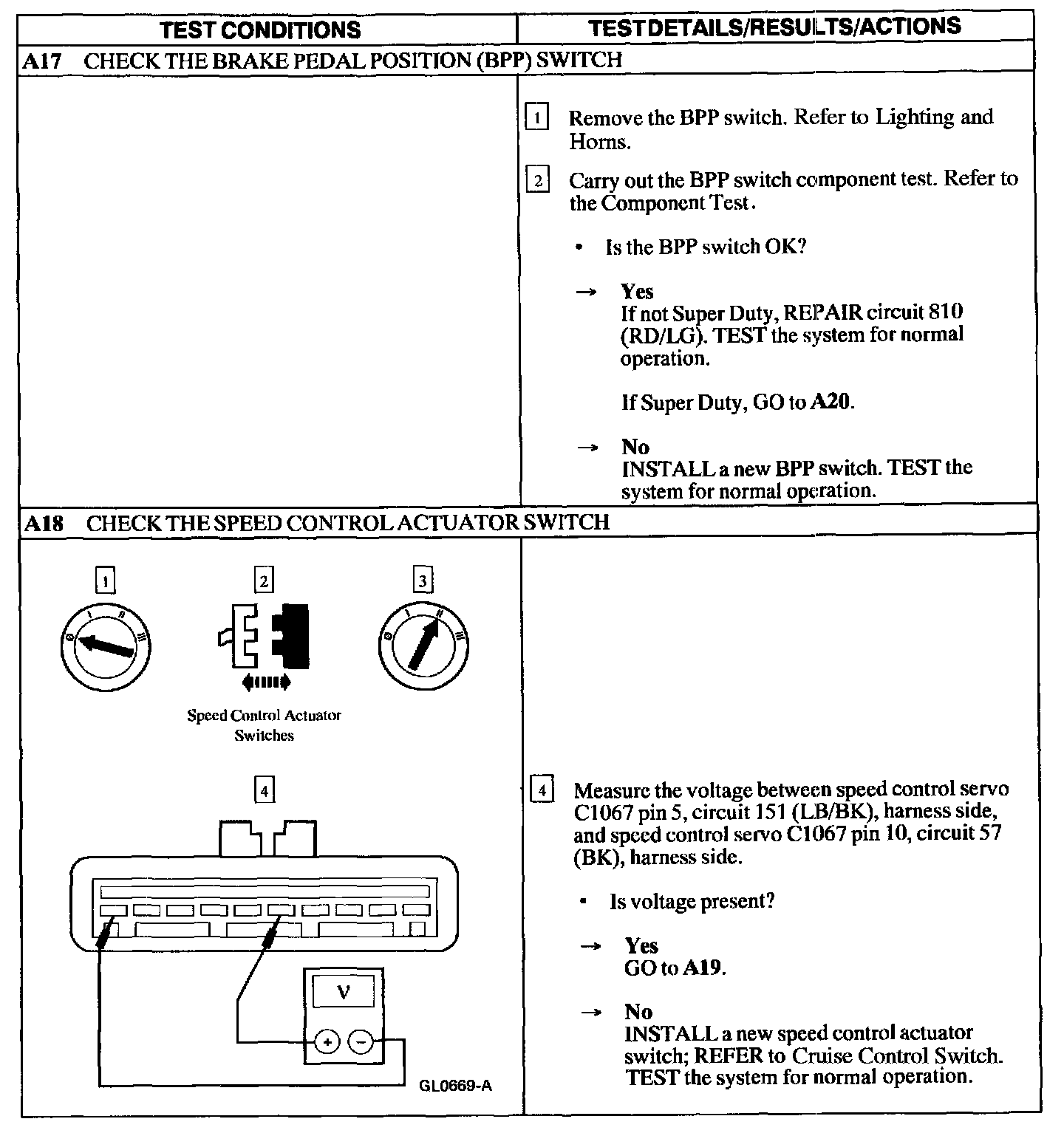

A17 - A18:

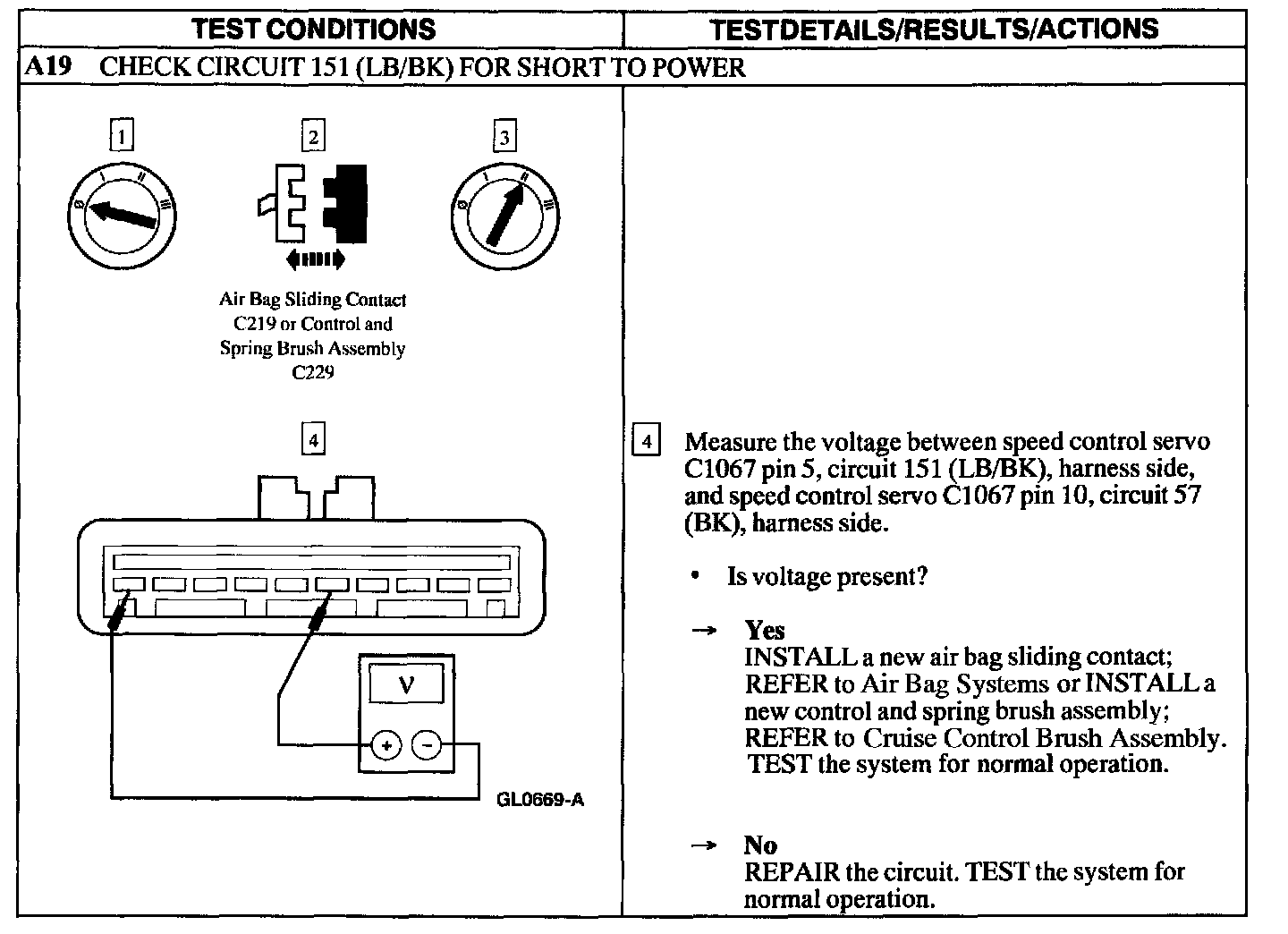

A19:

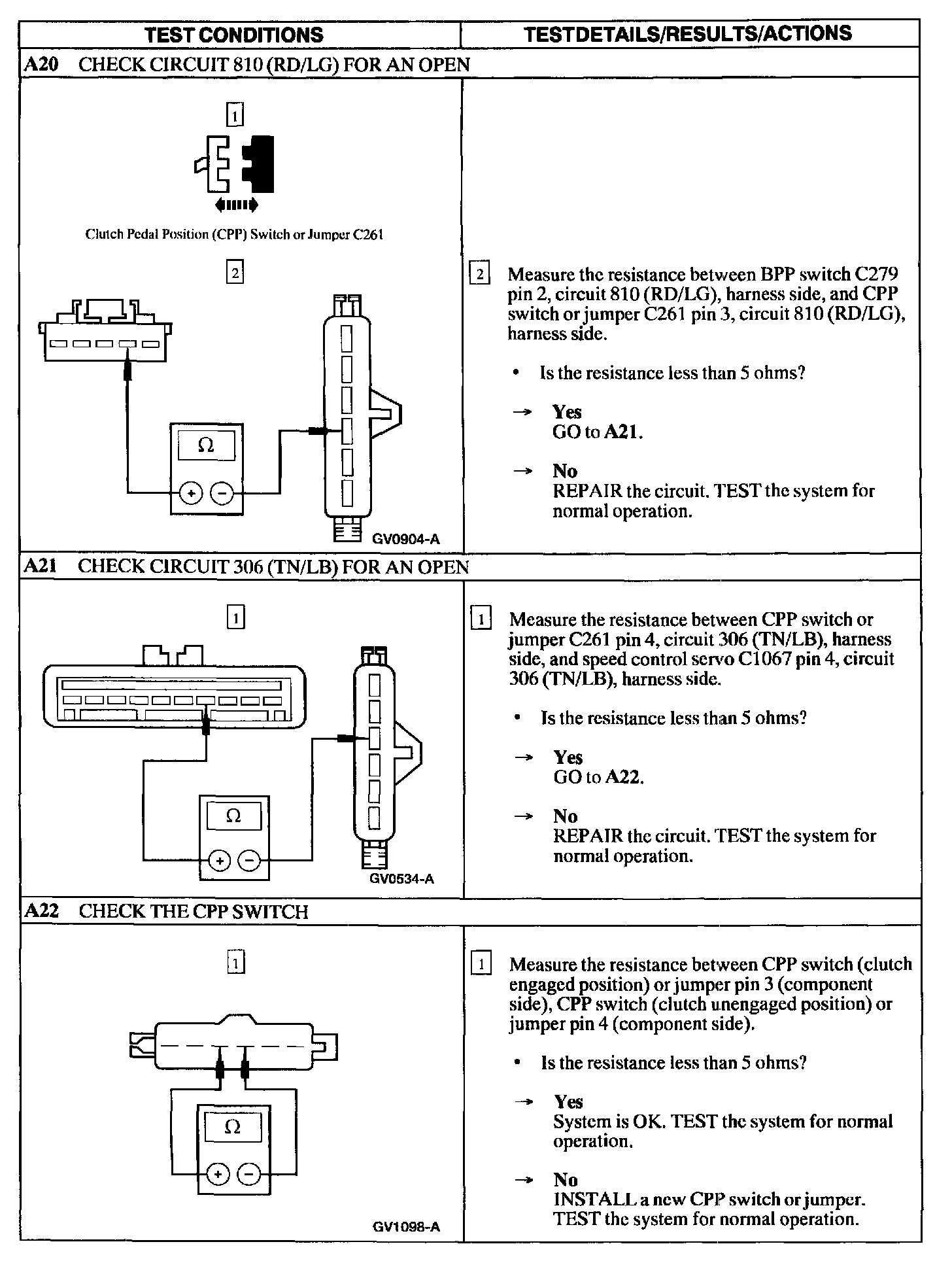

A20 - A22:

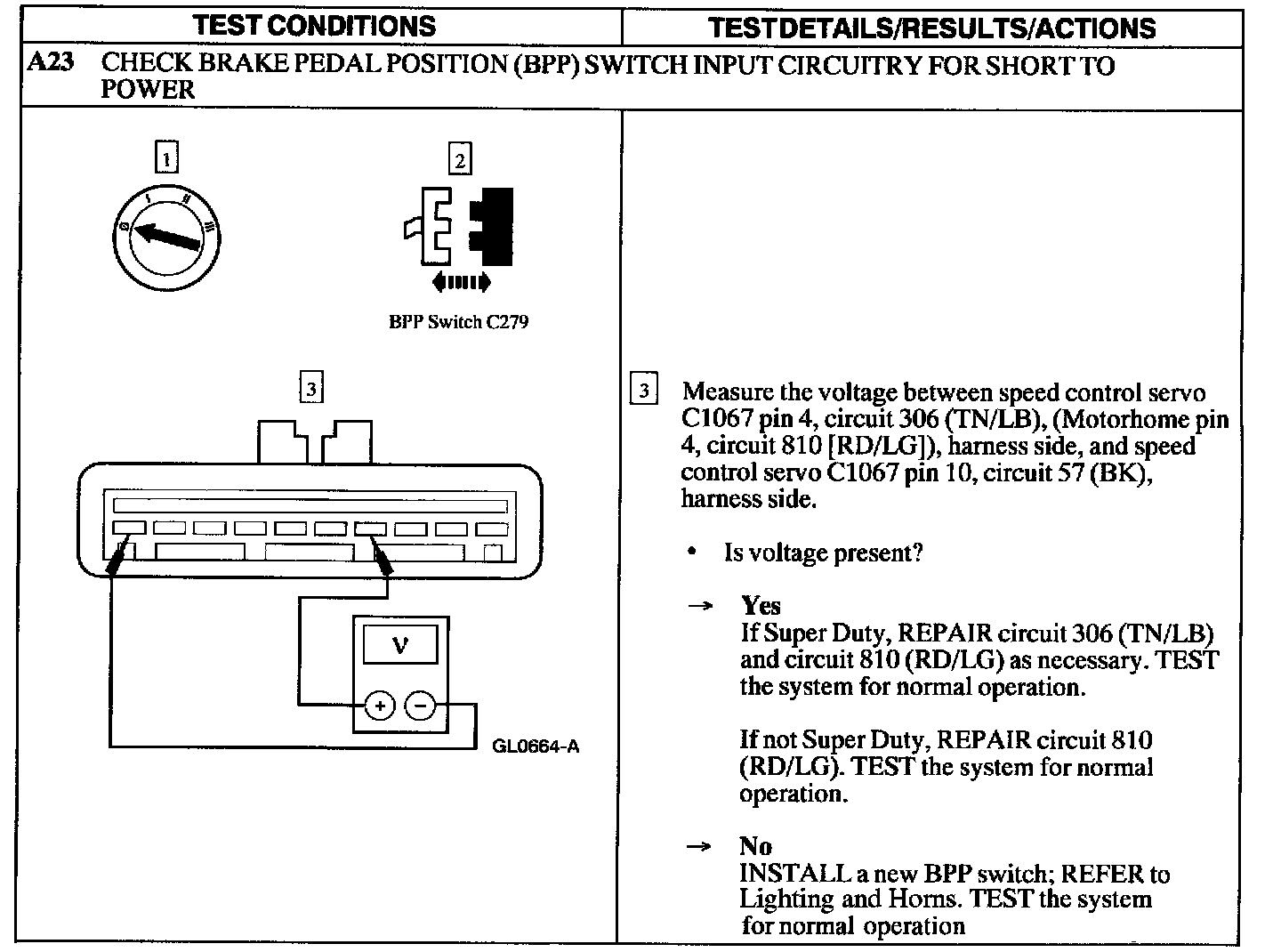

A23:

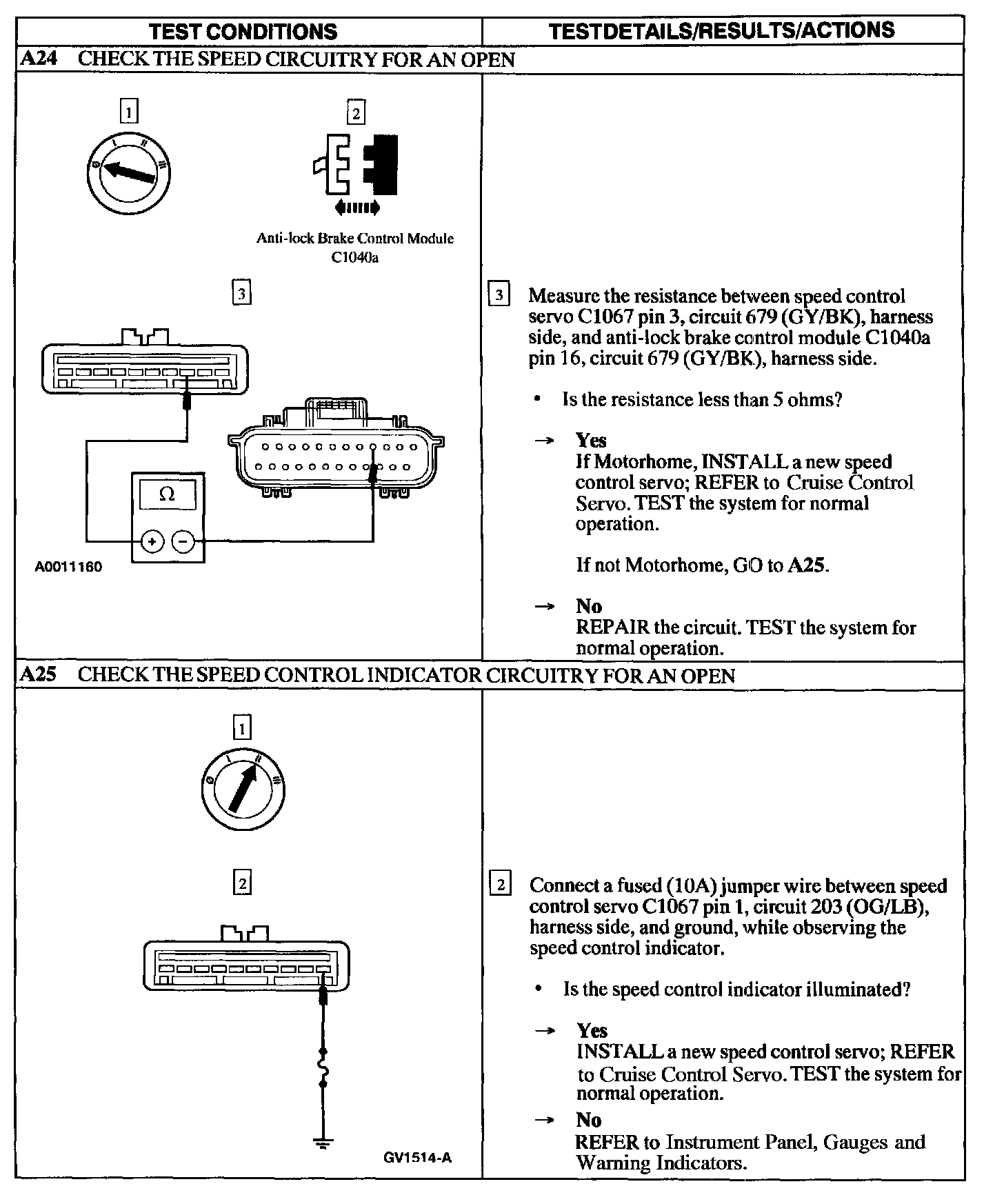

A24 - A25:
