Symptom Chart

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

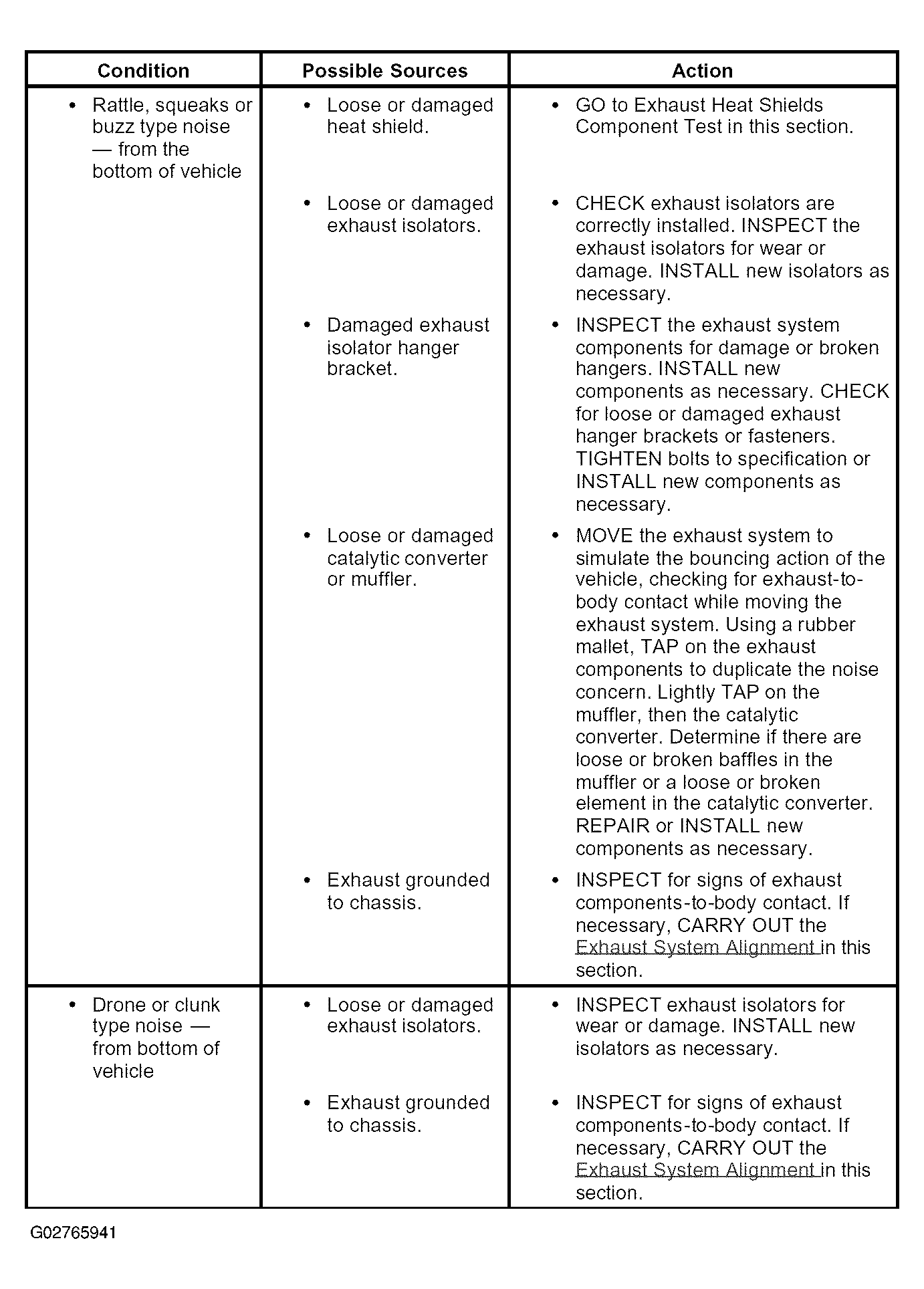

Fig 1: Symptom Chart (1 Of 3)
G02765941Courtesy of FORD MOTOR CO.

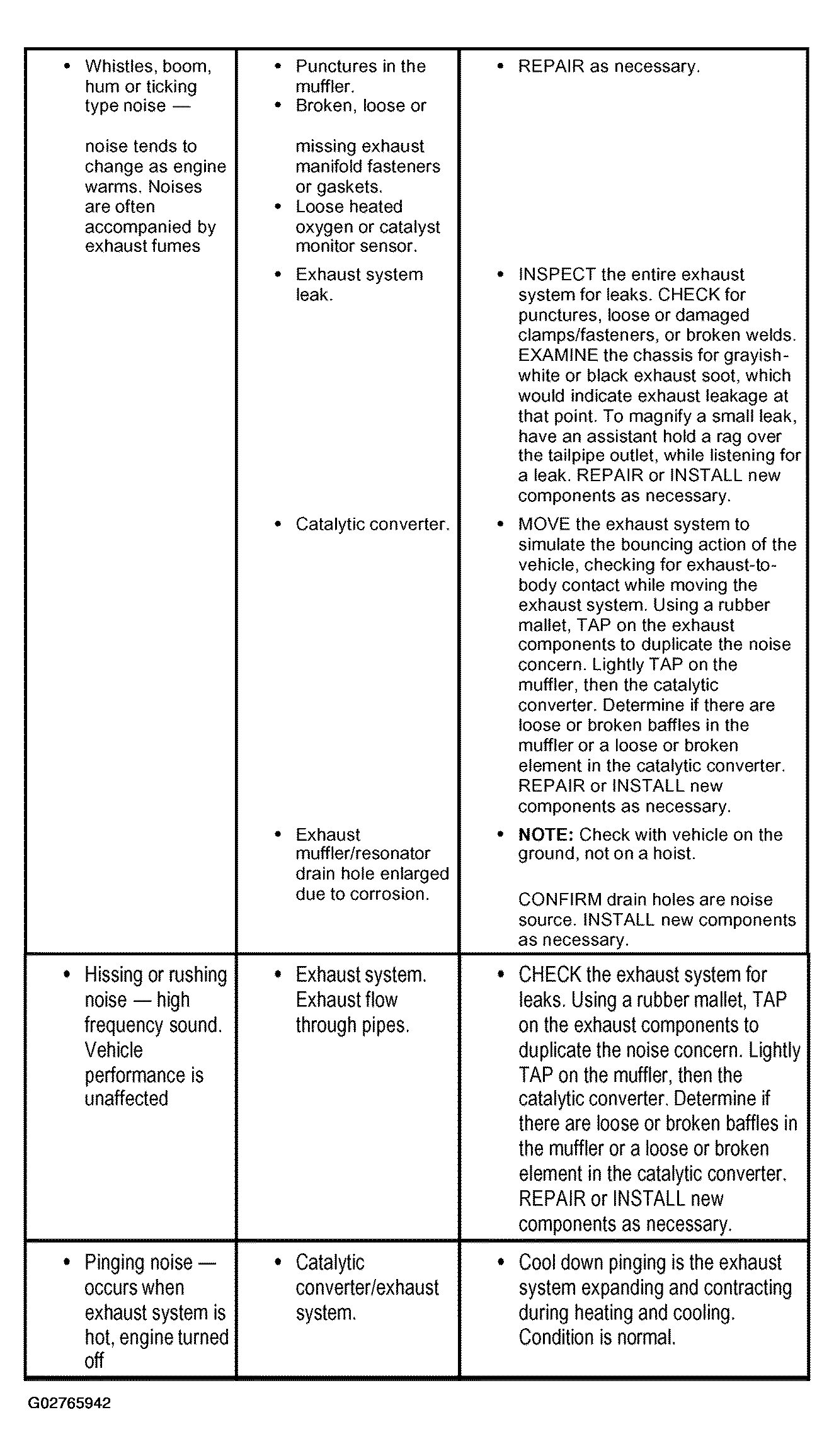

Fig 2: Symptom Chart (2 Of 3)
G02765942Courtesy of FORD MOTOR CO.

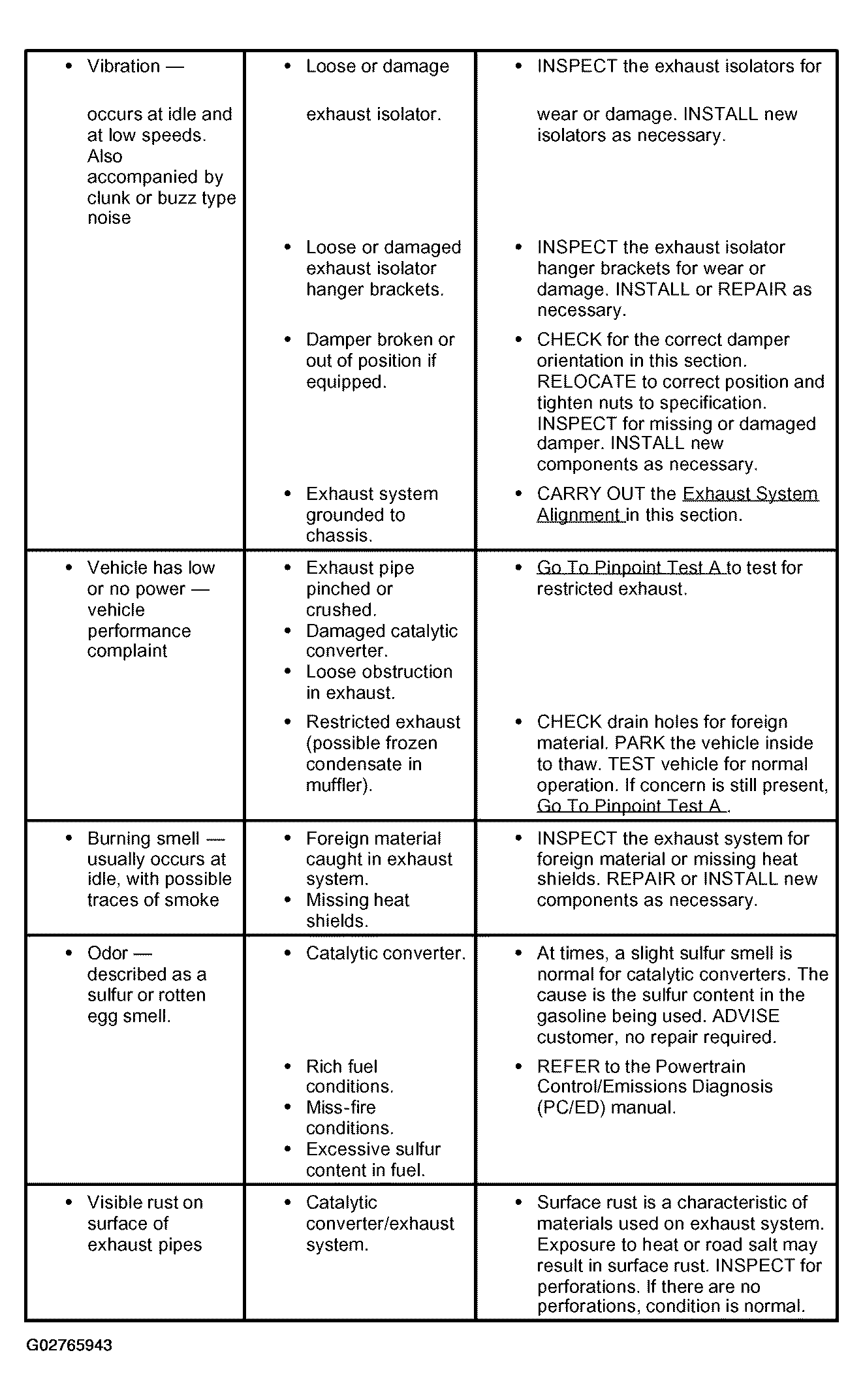

Fig 3: Symptom Chart (3 Of 3)
G02765943Courtesy of FORD MOTOR CO.
