Item 42: Center Support Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Align the center support screw hole with correct case hole.

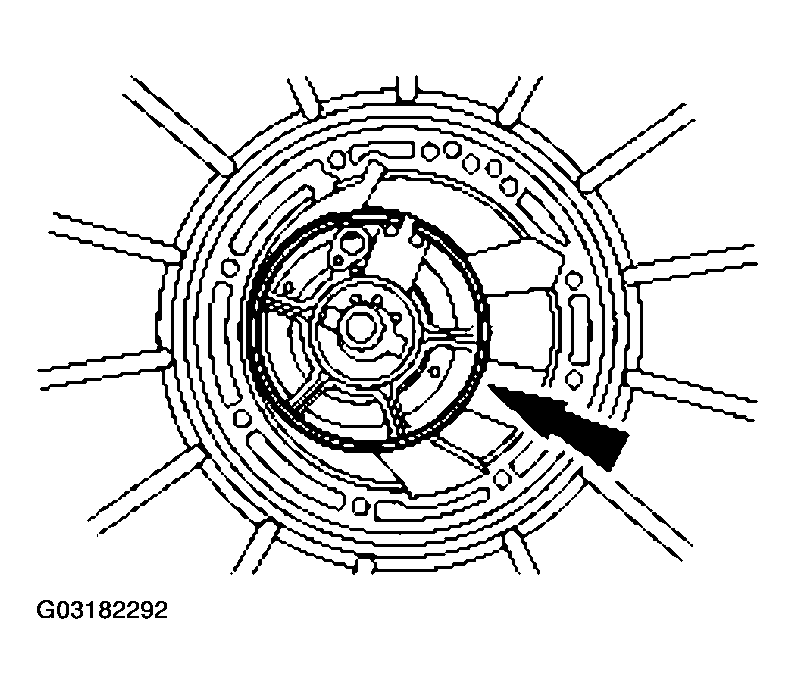

    Fig 1: Installing Center Support
    G03182292Courtesy of FORD MOTOR CO.
  1. Install the center support.
