Stoplamp Switch

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration and table.

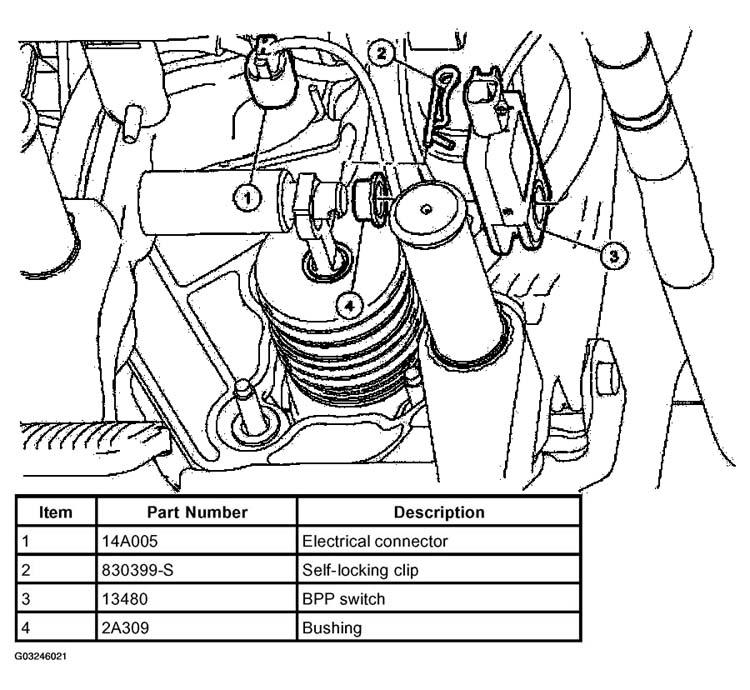

    Fig 1: Stoplamp Switch Components Removal Sequence
    G03246021Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
