Upper Clockspring Connector

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

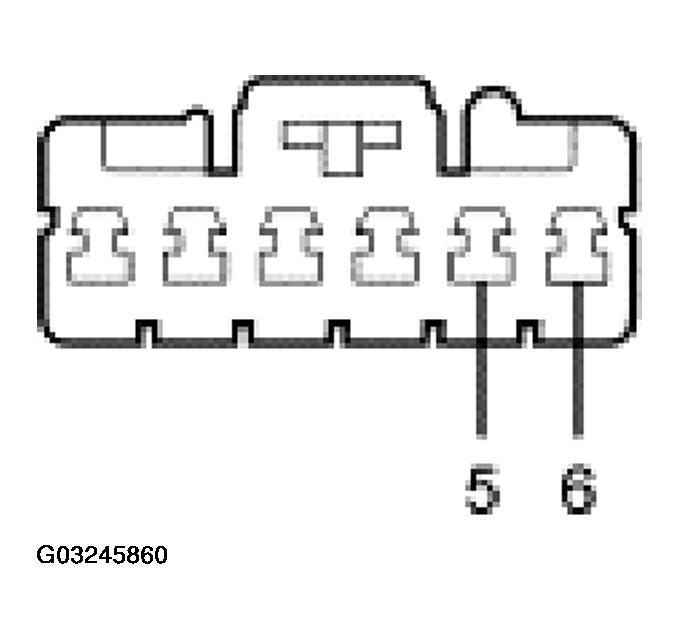

UPPER CLOCKSPRING CONNECTOR

G03245860
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
5 1205 (BK) ground Less than 5 ohms between the steering wheel control switch and the clockspring.
6 595 (LB/RD) steering wheel audio control switches signal Less than 5 ohms between the steering wheel control switches and the clockspring. Greater than 10,000 ohms between the steering wheel control switch and ground.
