Slave Cylinder: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
    • Position the clutch slave cylinder to the transmission and install the bolts.

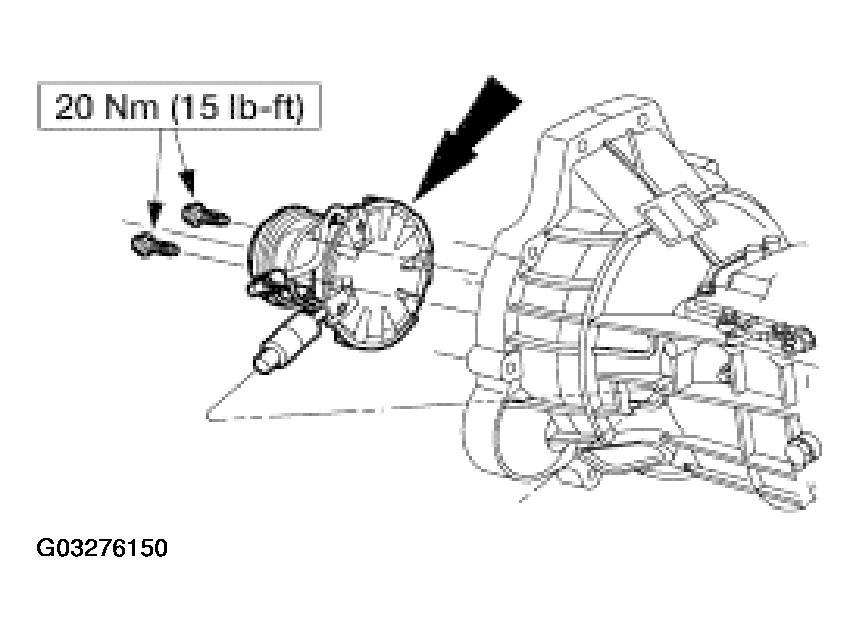

      Fig 1: Positioning Clutch Slave Cylinder To Transmission
      G03276150Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION .
  3. Depress and release the clutch pedal five full strokes.
