Removal And Installation: Fender

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlamp assembly. For additional information, refer to EXTERIOR LIGHTING - LS .
Remove the wheel and tire.
Remove the bumper cover. For additional information, refer to FRONT BUMPER .
Position the rocker moulding aside. For additional information, refer to MOULDINGS .

To remove individual components, only carry out the following steps.

COMPONENTS REMOVING STEPS

Component	Steps
Front fender front splash shield	1-4
Front fender rear splash shield	3,5-7
Fender insulator	3,5-8
Fender	1-14

Remove the components in the order listed in the following illustration and table.

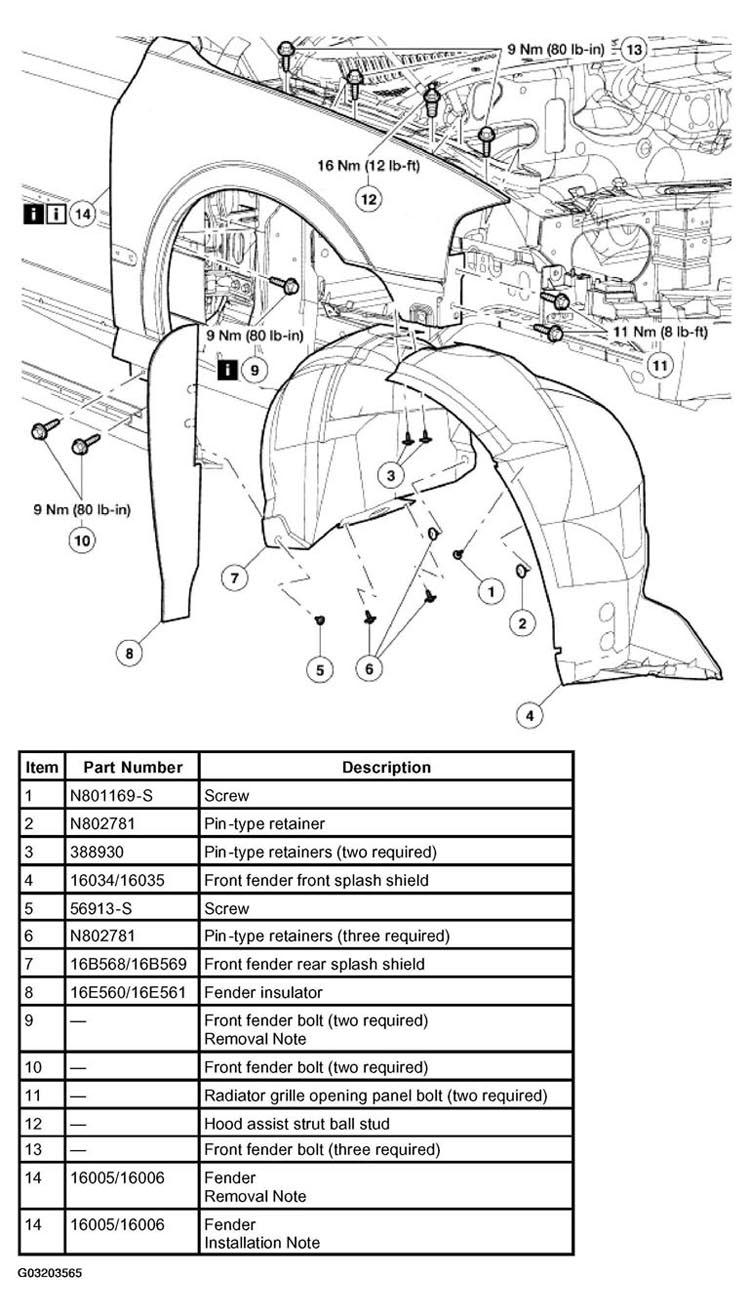

Fig 1: Identifying Fender Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Item 9: Front Fender Bolt Removal Note

Remove the inner fender bolts.

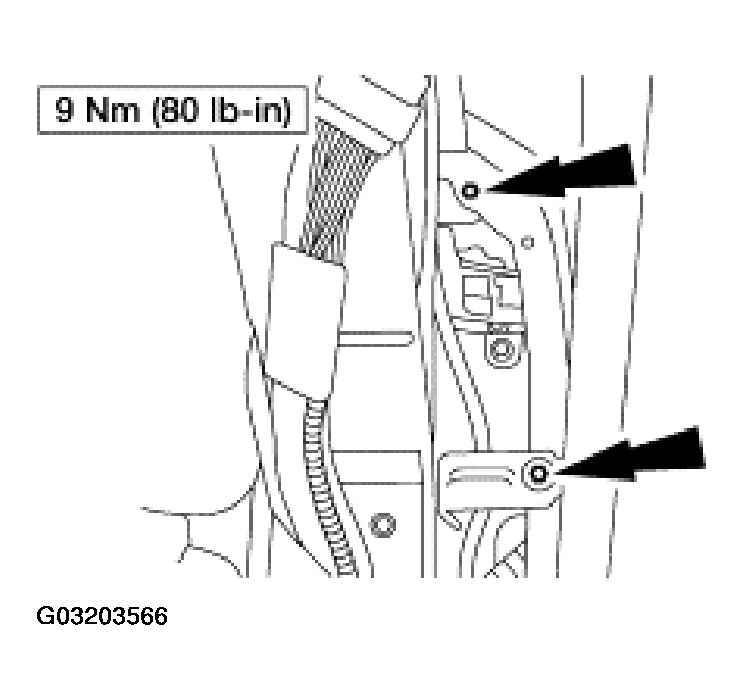

Fig 2: Removing Inner Fender Bolts
Courtesy of FORD MOTOR CO.

Item 14: Fender Removal Note

Release the harness locator from the fender.

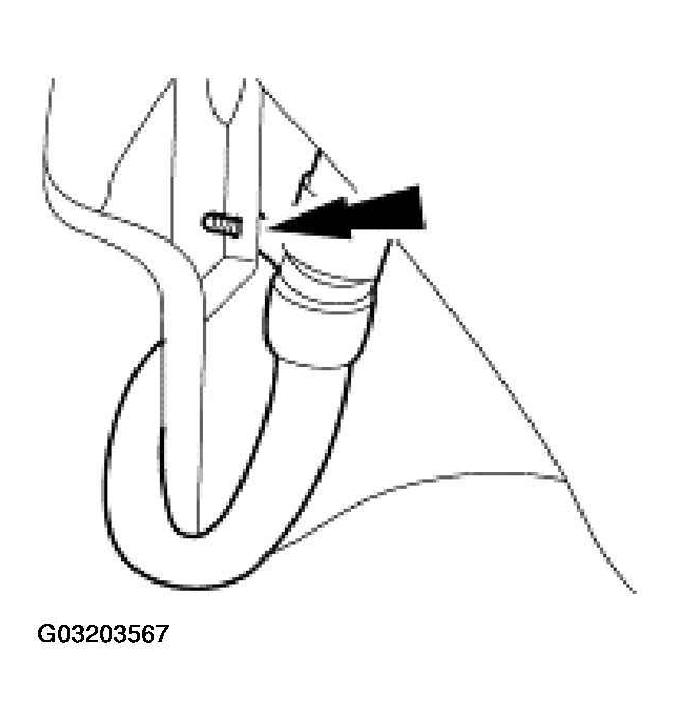

Fig 3: Releasing Harness Locator From Fender
Courtesy of FORD MOTOR CO.

Item 14: Fender Installation Note

Adjust the fender as needed.
