Subwoofer Amplifier C466b
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

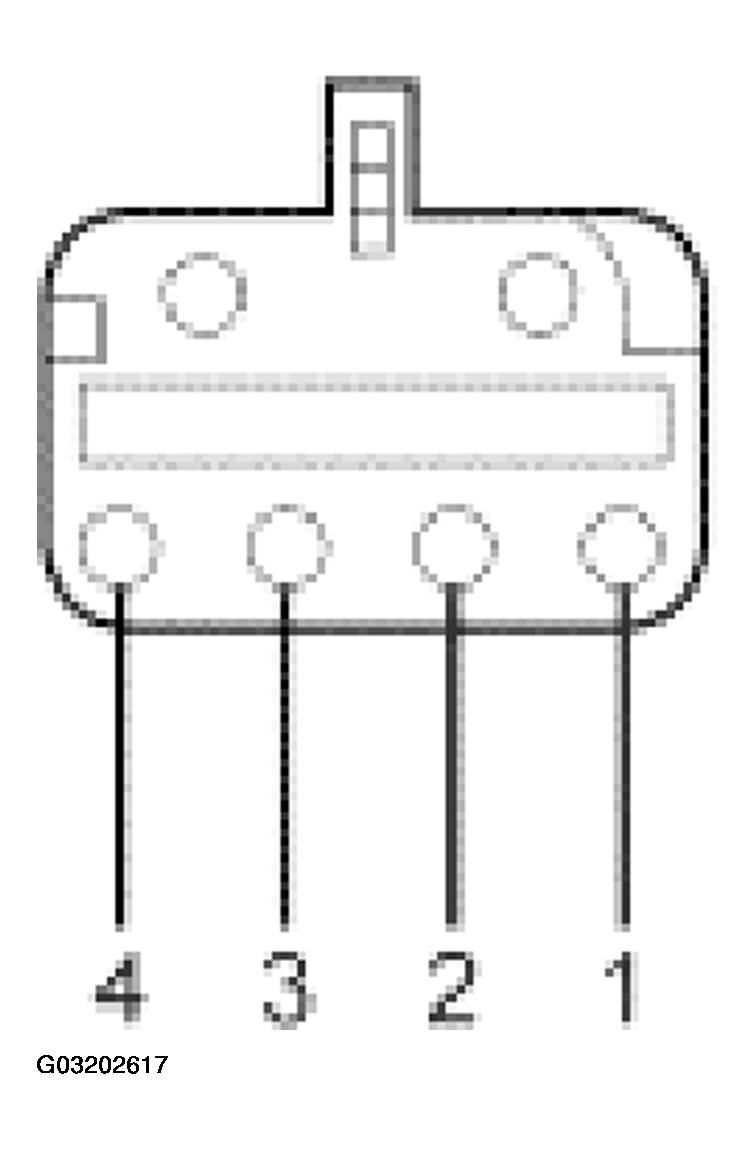

SUBWOOFER AMPLIFIER C466B CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-MD21 (WH/BU) right subwoofer speaker audio output | Less than 5 ohms between the right subwoofer speaker and the subwoofer amplifier. Greater than 10,000 ohms between the right subwoofer speaker and ground. |
| 2 | 10-MD21 (GY/VT) right subwoofer speaker audio return | Less than 5 ohms between the right subwoofer speaker and the subwoofer amplifier. Greater than 10,000 ohms between the right subwoofer speaker and ground. |
| 3 | 8-MD22 (WH/GN) left subwoofer speaker audio output | Less than 5 ohms between the left subwoofer speaker and the subwoofer amplifier. Greater than 10,000 ohms between the left subwoofer speaker and ground. |
| 4 | 10-MD22 (GY/OG) left subwoofer speaker audio return | Less than 5 ohms between the left subwoofer speaker and the subwoofer amplifier. Greater than 10,000 ohms between the left subwoofer speaker and ground. |
