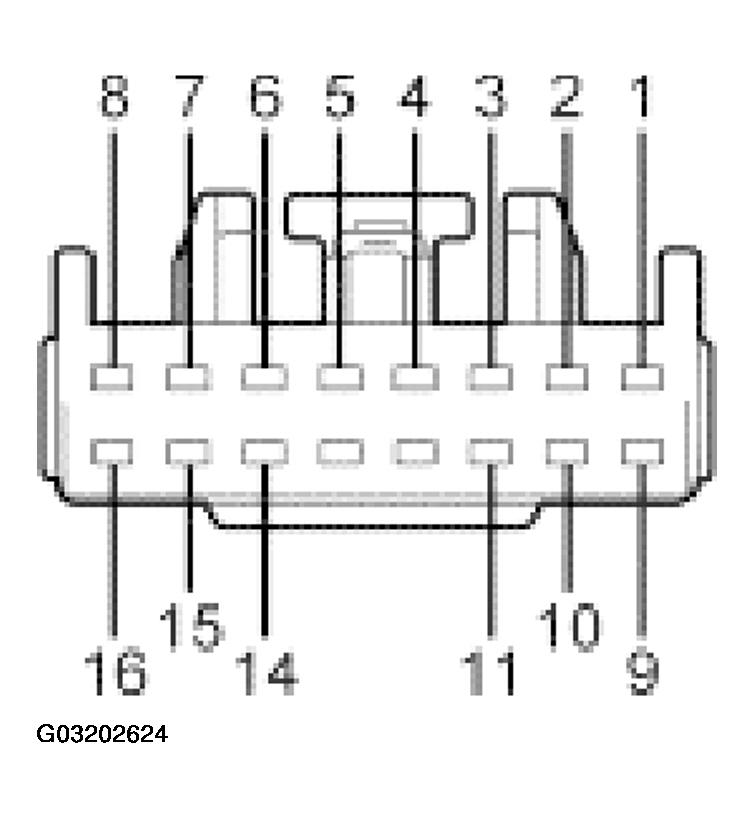

AUDIO AMPLIFIER C4208B CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-MD18(WH) RR speaker output | Less than 5 ohms between the audio amplifier and the speaker and greater than 10,000 ohms between the audio amplifier and ground. |
| 2 | 10-MD18(GY) RR speaker return | Less than 5 ohms between the audio amplifier and the speaker and greater than 10,000 ohms between the audio amplifier and ground. |
| 3 | 8-MD17 (WH/RD) RF speaker output | Less than 5 ohms between the audio amplifier and the speaker and greater than 10,000 ohms between the audio amplifier and ground. |
| 4 | 10-MD17 (GY/RD) RF speaker return | Less than 5 ohms between the audio amplifier and the speaker and greater than 10,000 ohms between the audio amplifier and ground. |
| 5 | 8-MD11 (WH/VT) LR speaker output | Less than 5 ohms between the audio amplifier and the speaker and greater than 10,000 ohms between the audio amplifier and ground. |
| 6 | 10-MD11 (GY/WH) LR speaker return | Less than 5 ohms between the audio amplifier and the speaker and greater than 10,000 ohms between the audio amplifier and ground. |
| 7 | 8-MD10 (WH/BK) LF speaker output | Less than 5 ohms between the audio amplifier and the speaker and greater than 10,000 ohms between the audio amplifier and ground. |
| 8 | 10-MD10 (GY/BK) LF speaker return | Less than 5 ohms between the audio amplifier and the speaker and greater than 10,000 ohms between the audio amplifier and ground. |
| 9 | 31-MD27A(BK/WH) audio amplifier ground | Less than 5 ohms between the audio amplifier and ground. |
| 10 | 31-MD27B (BK/WH) audio amplifier ground | Less than 5 ohms between the audio amplifier and ground. |
| 11 | 31-MD27C(BK/WH) audio amplifier ground | Less than 5 ohms between the audio amplifier and ground. |
| 14 | 30-MD27A (RD/WH) B+ battery feed | Greater than 10 volts between the audio amplifier and ground. |
| 15 | 30-MD27B (RD/WH) B+ battery feed | Greater than 10 volts between the audio amplifier and ground. |
| 16 | 30-MD27C (RD/WH) B+ battery feed | Greater than 10 volts between the audio amplifier and ground. |
