Pinpoint Test A: No Communication With The Anti-Lock Brake System (ABS) Module

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

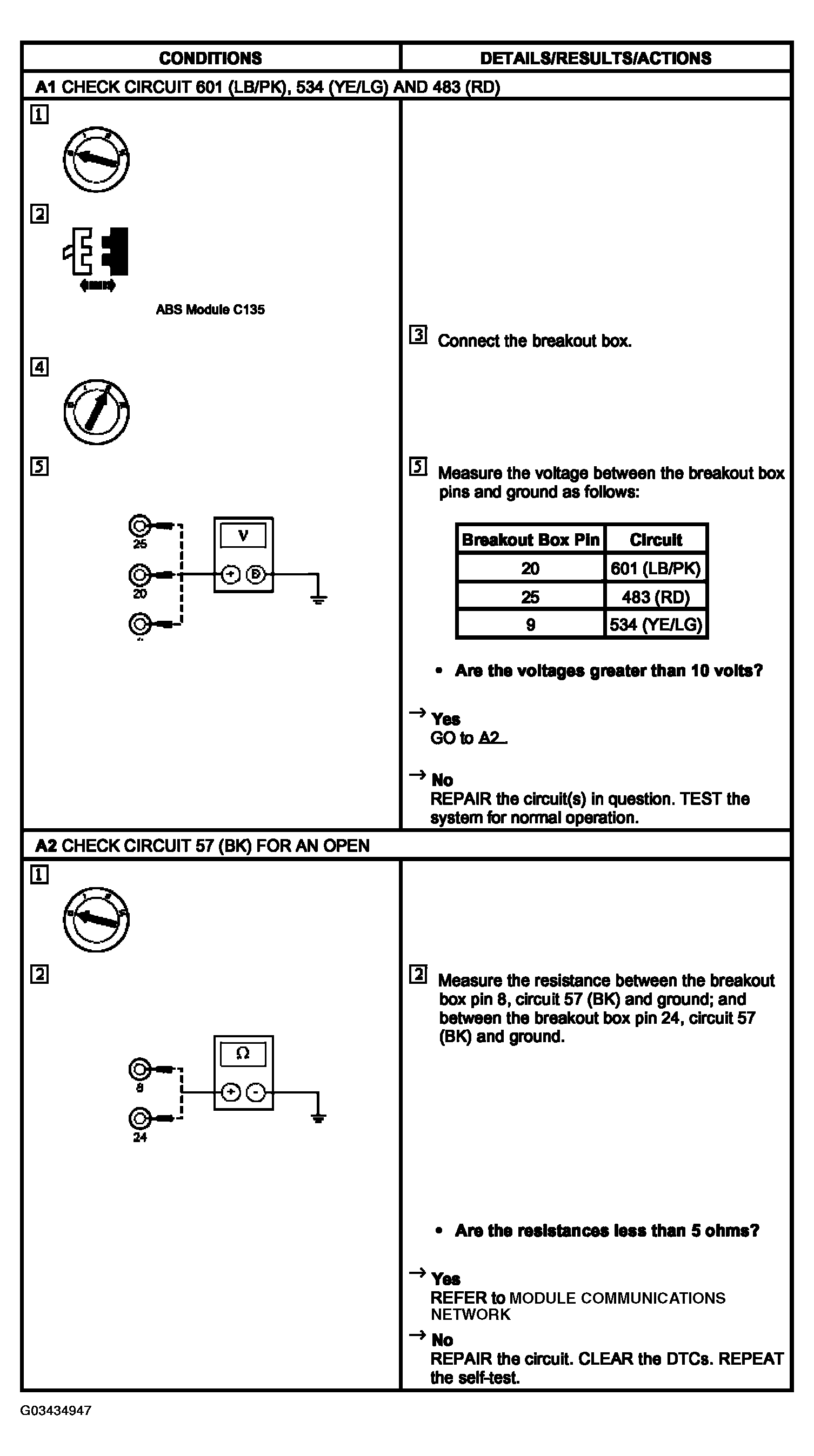

Fig 1: Pinpoint Test A: No Communication With Anti-Lock Brake System (ABS) Module
G03434947Courtesy of FORD MOTOR CO.
