Lower Control Arm: Removal
WARNING: This page is about a different car, the 2004 Ford Escape, 2003 Ford Escape, and 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

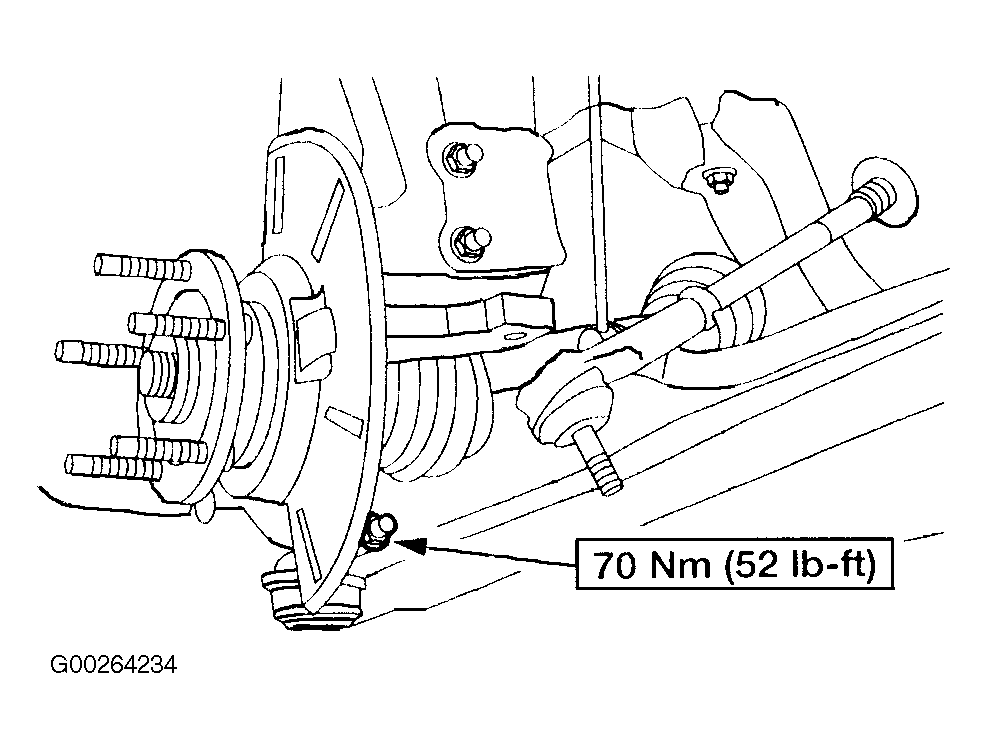

- Raise and support vehicle. Remove wheel assembly. Remove nut and pinch bolt securing lower ball joint to knuckle. See Figure
. Separate steering knuckle from lower ball joint.

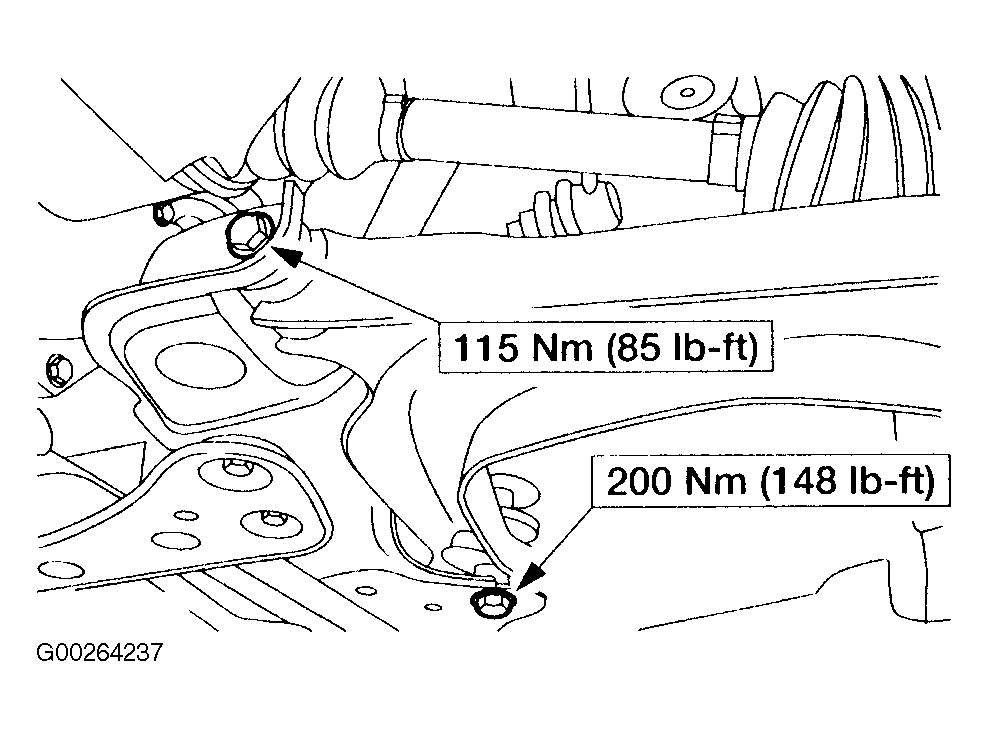

- Support subframe. Remove lower control arm bolts. See Fig 1
. Remove lower control arm.
Courtesy of FORD MOTOR CO.
