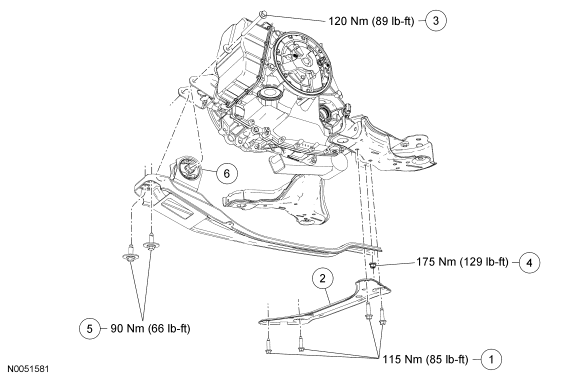

Transaxle Support Insulator - Lower, Front: Notes
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W500644 |
Cross brace retaining bolts |
| 2 |
- |
Cross brace |
| 3 |
W500743 |
Front engine support through bolt |
| 4 |
W710553-S440 |
Engine support cross brace nut |
| 5 |
W706899 |
Engine support cross brace bolts |
| 6 |
6E037 |
Engine support crossmember |
