Tie Rod - Inner: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Left side shown, right side similar.

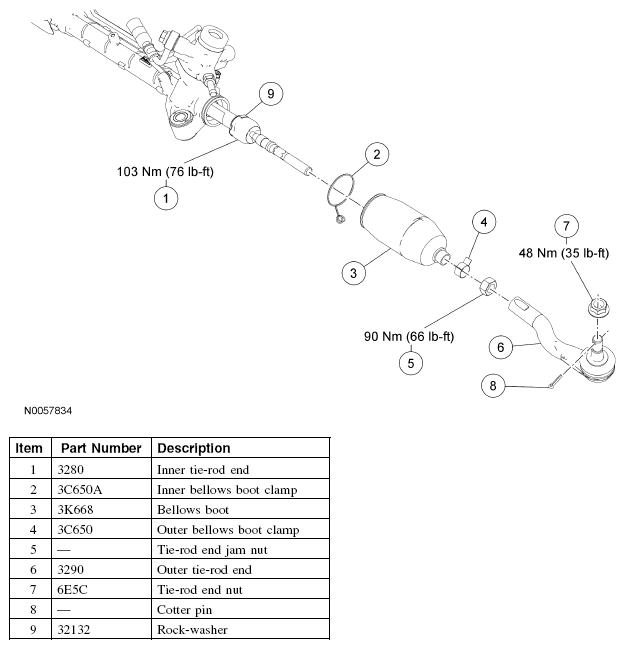

Fig 1: Identifying Tie Rod Remove/Install Components - Inner
G04679852Courtesy of FORD MOTOR CO.
