Power Steering Pump - 2.3L: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL CHART

Item Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada) MERCON®

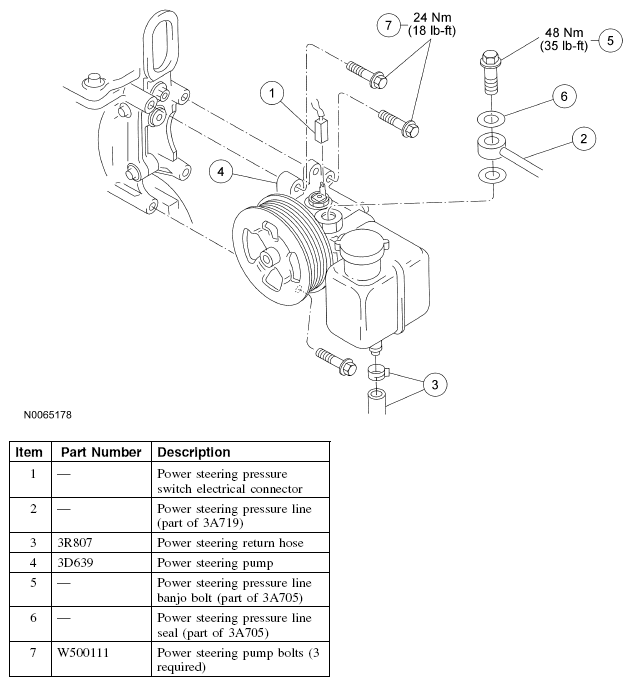

Fig 1: Identifying Power Steering Pump Remove/Install Components (2.3L)
G04679833Courtesy of FORD MOTOR CO.
