Pump Assembly: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Alignment Pins, Transmission Main Control Body 307-127 (T94P-77000-P)
Courtesy of FORD MOTOR CO.	Depth Micrometer 303-D026 (D80P-4201-A)
Courtesy of FORD MOTOR CO.	Shim Selection Gauge 307-300 (T94P-77000-Q)

MATERIAL

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada)	MERCON® V

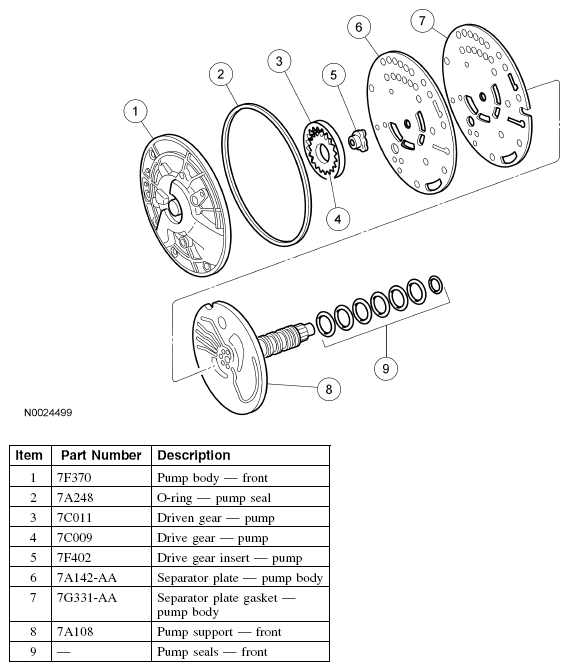

Fig 1: Exploded View Of Pump Assembly Components

Courtesy of FORD MOTOR CO.
