AX4S

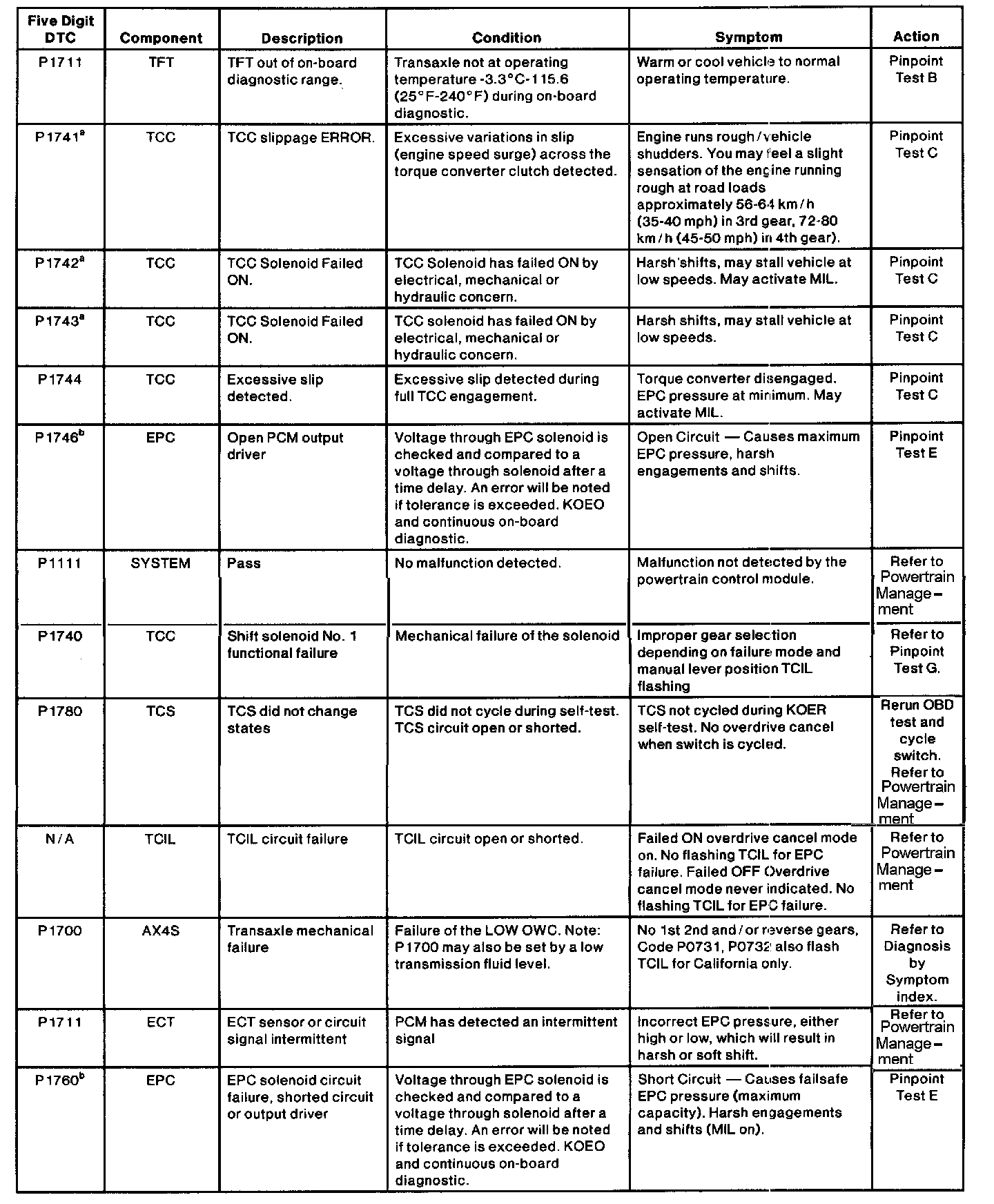

AX4S 1 Of 5:

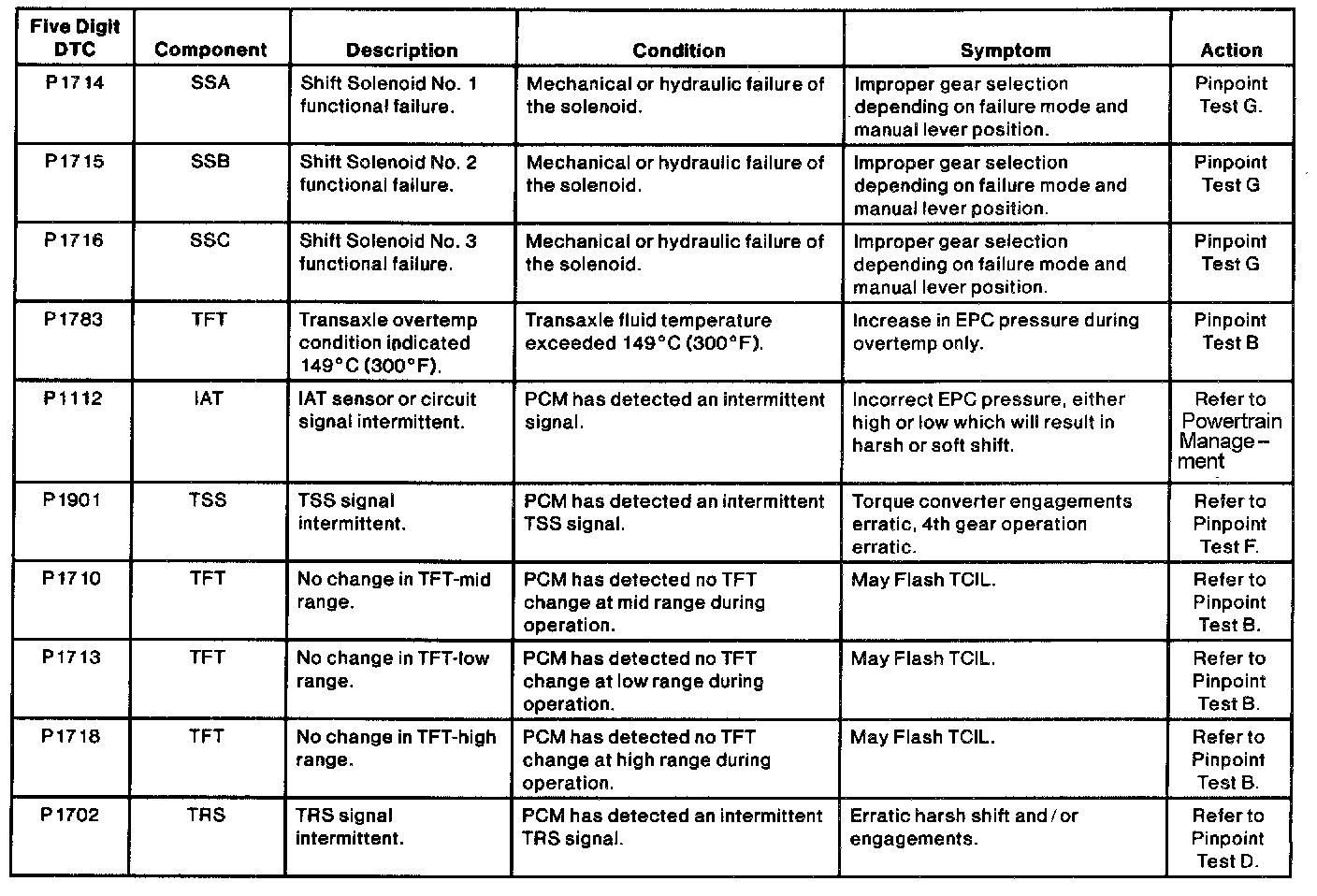

AX4S 2 Of 5:

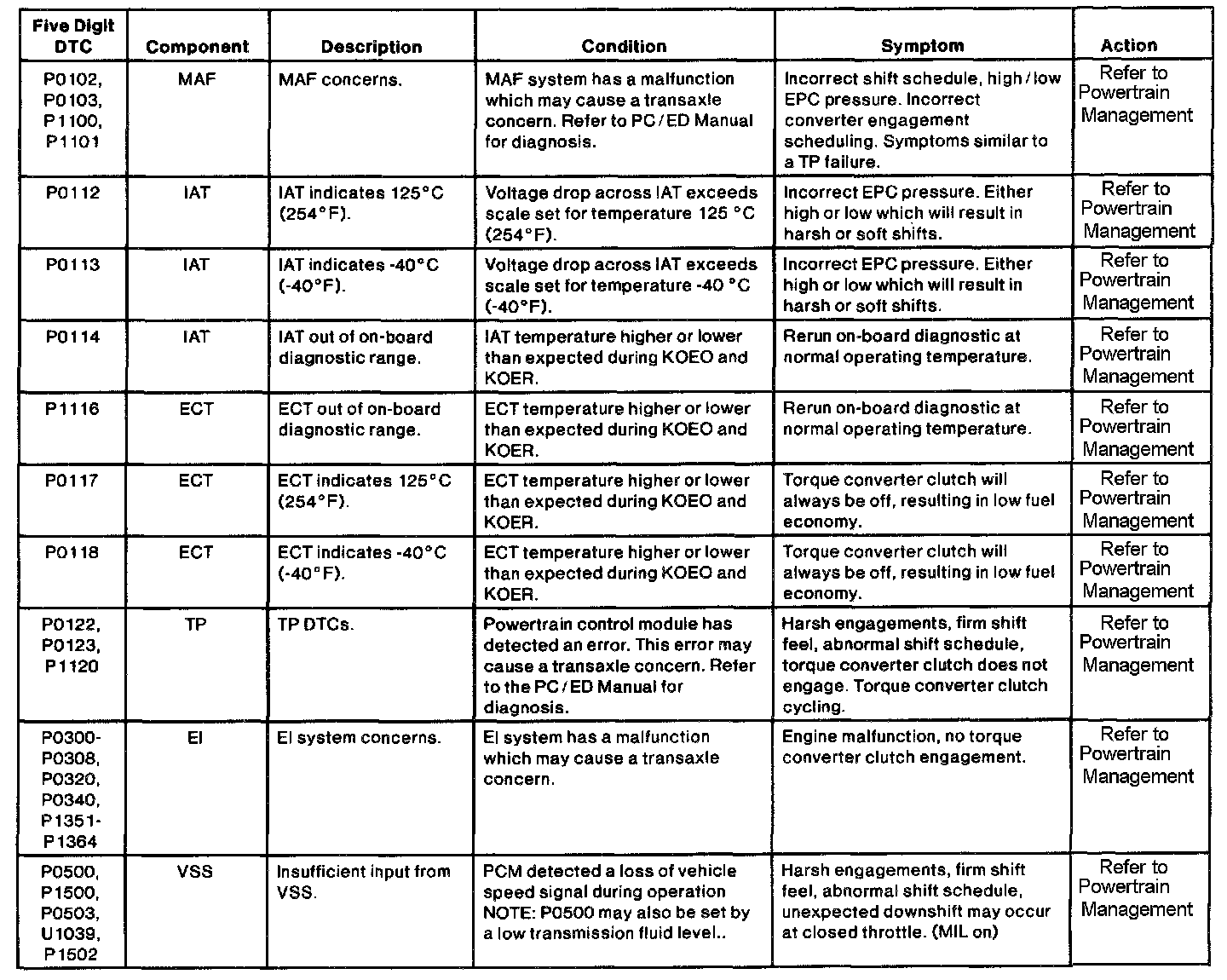

AX4S 3 0f 5:

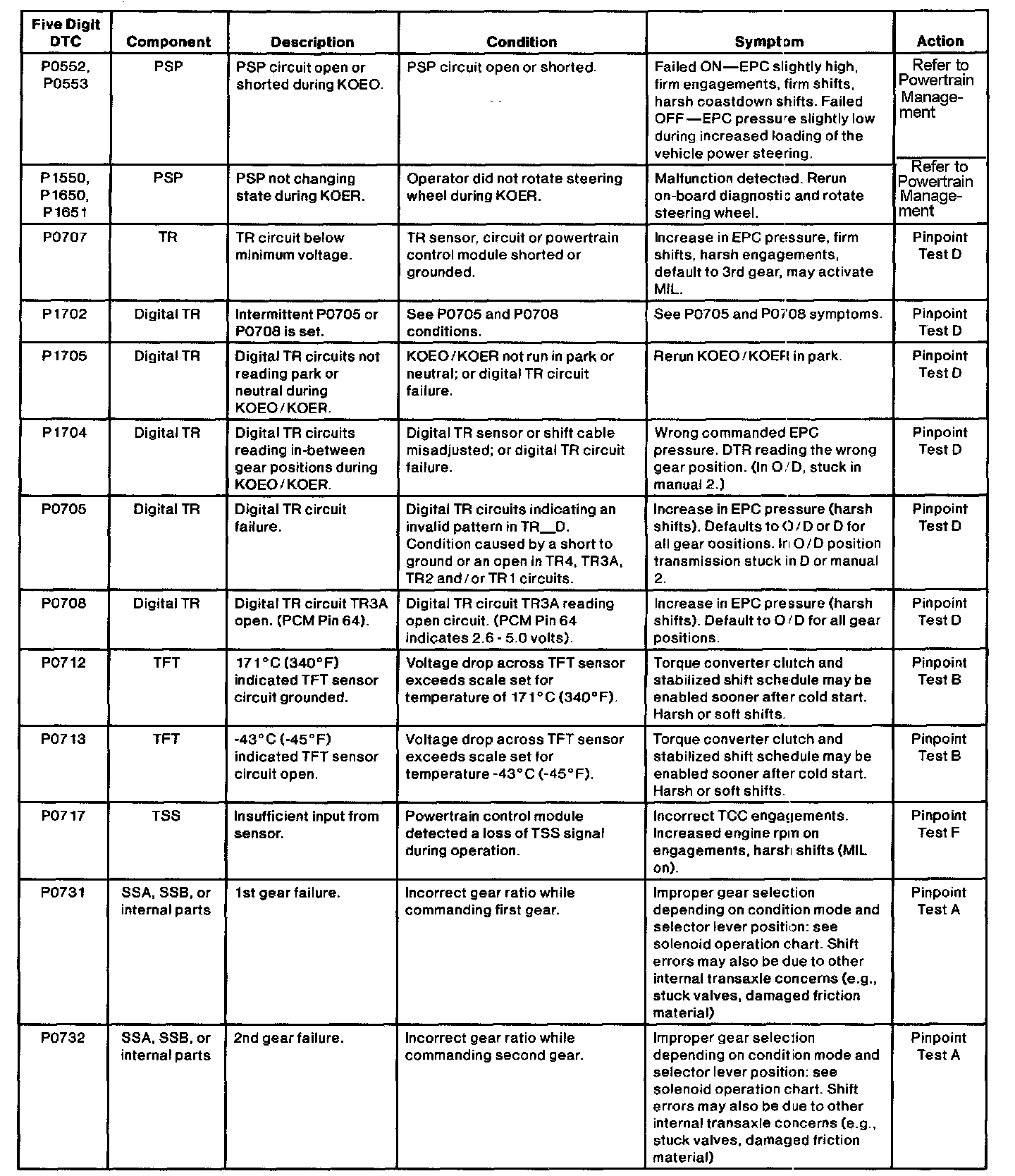

AX4S 4 Of 5:

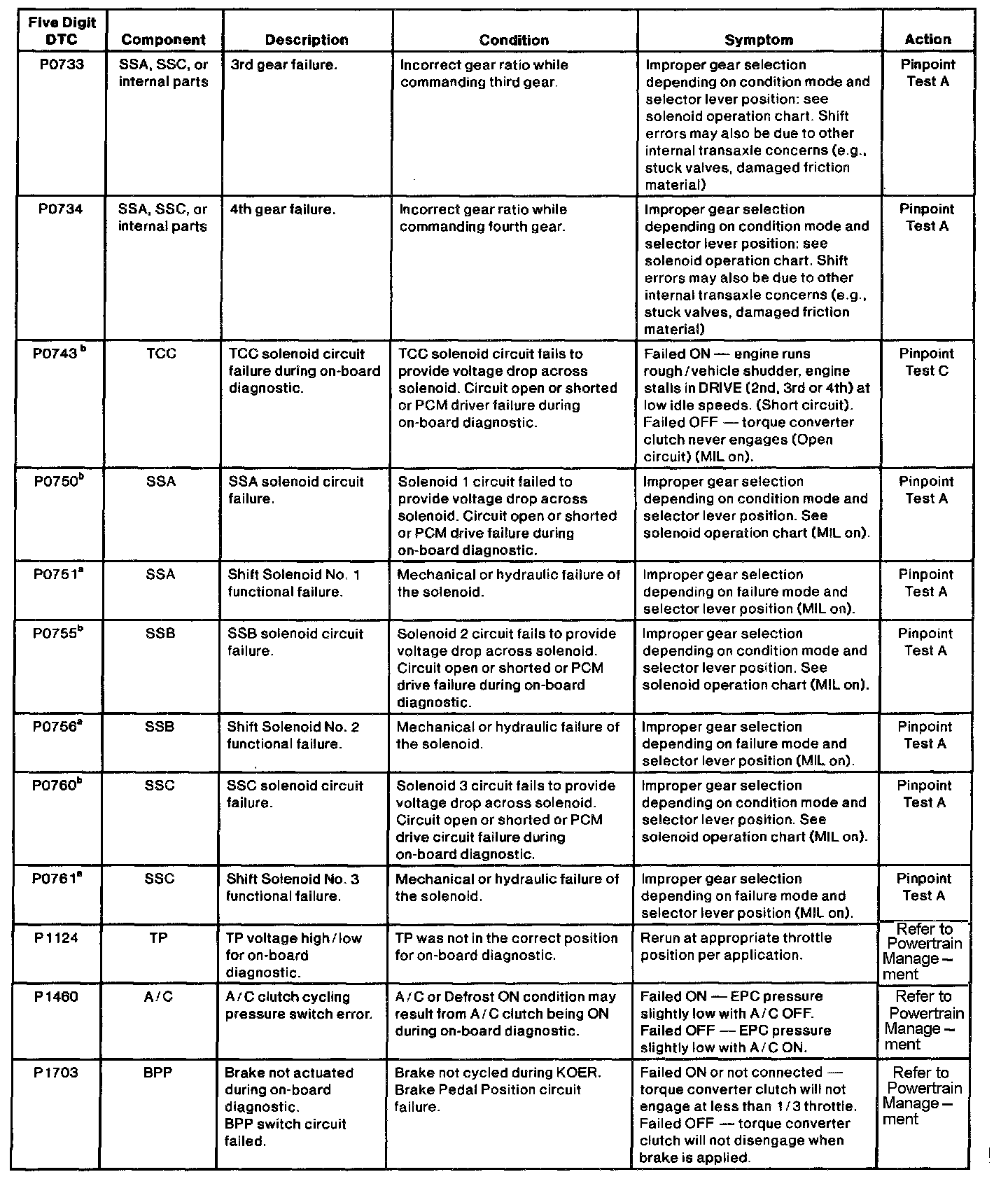

AX4S 5 Of 5:





ON-BOARD DIAGNOSTIC TROUBLE CODE DESCRIPTION CHARTS

Footnotes:

b Output circuit check, generated only by electrical symptoms.
