Home
>>
Ford
>>
1998
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>
AX4S Transmission
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
AX4S Transmission

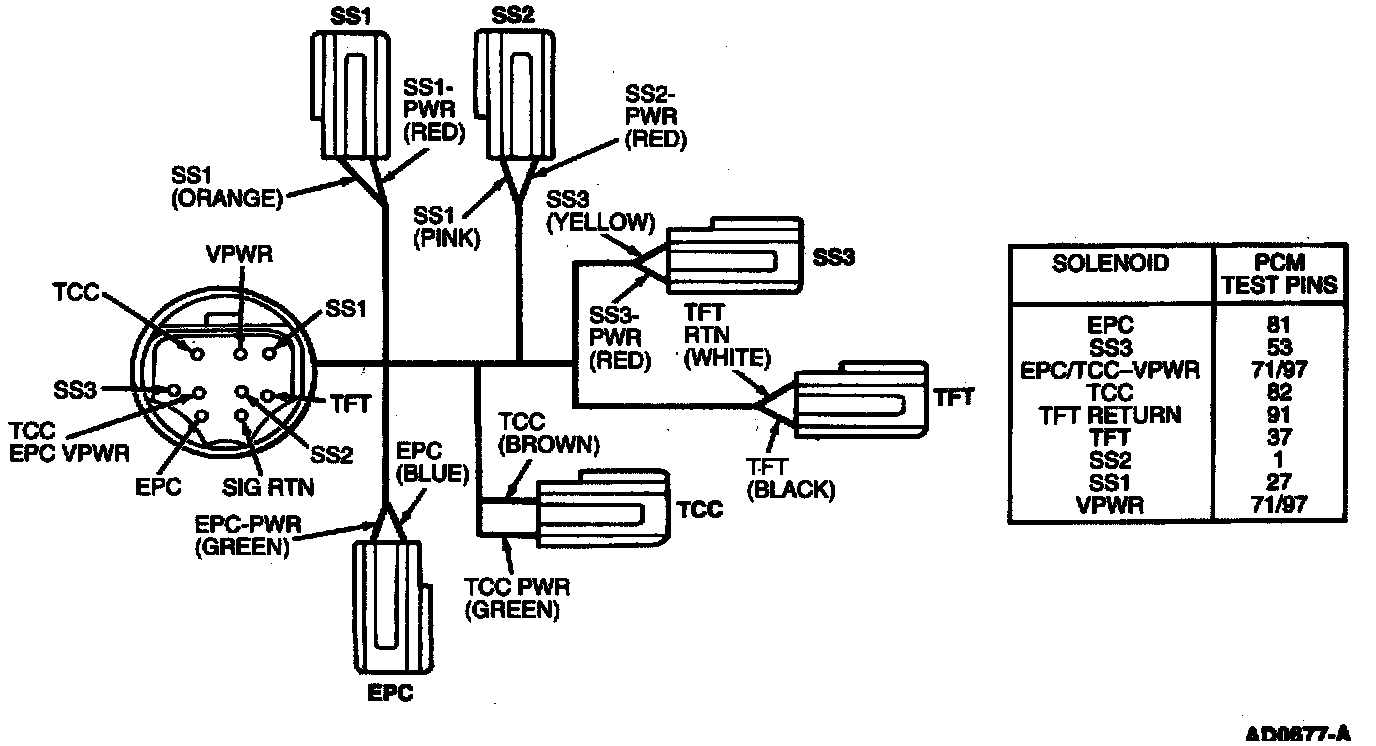

AX4S Transaxle Connector:
