Electrical Diagrams

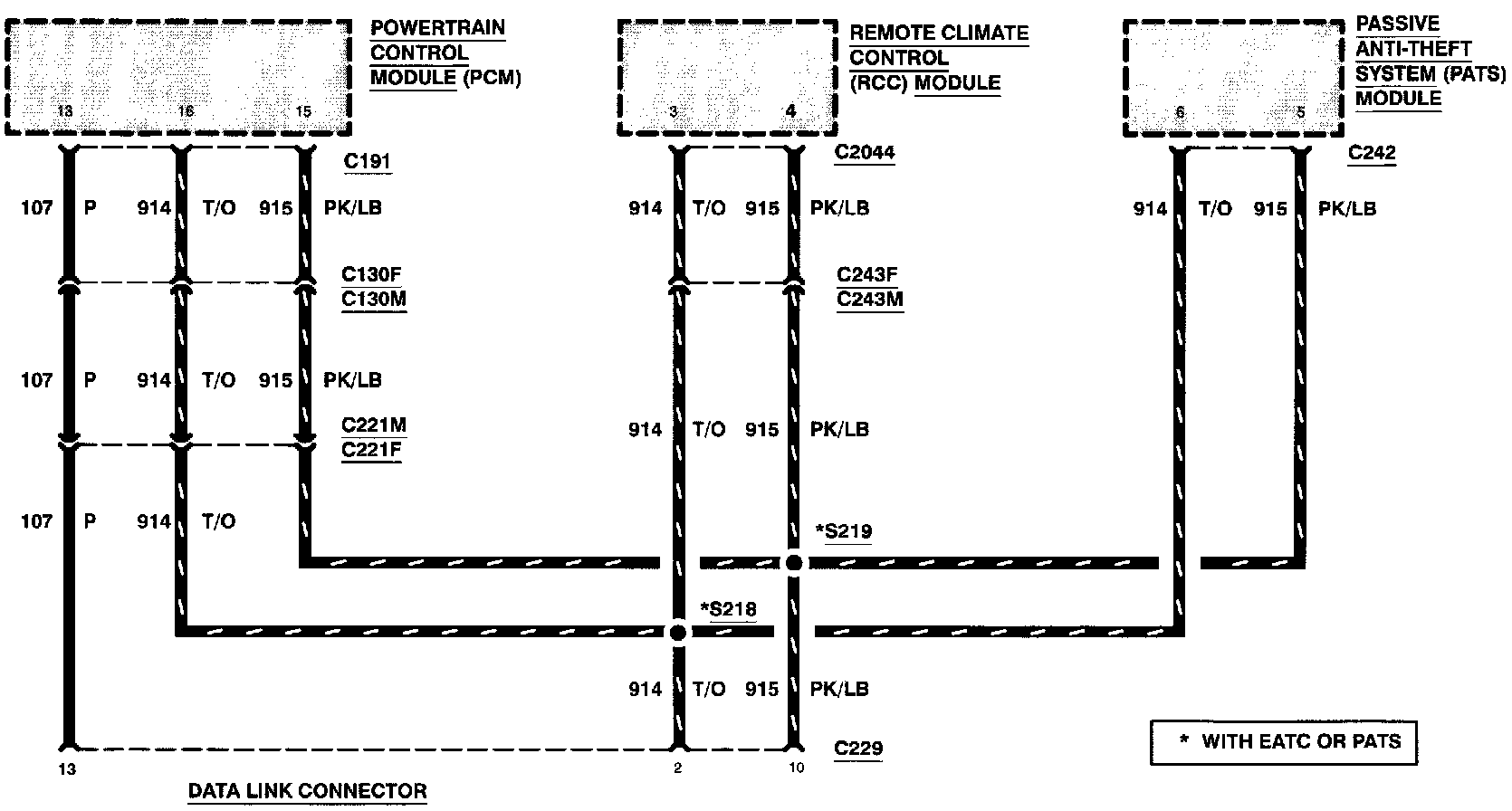

Multiplex Communication Network (Part 1 Of 2):

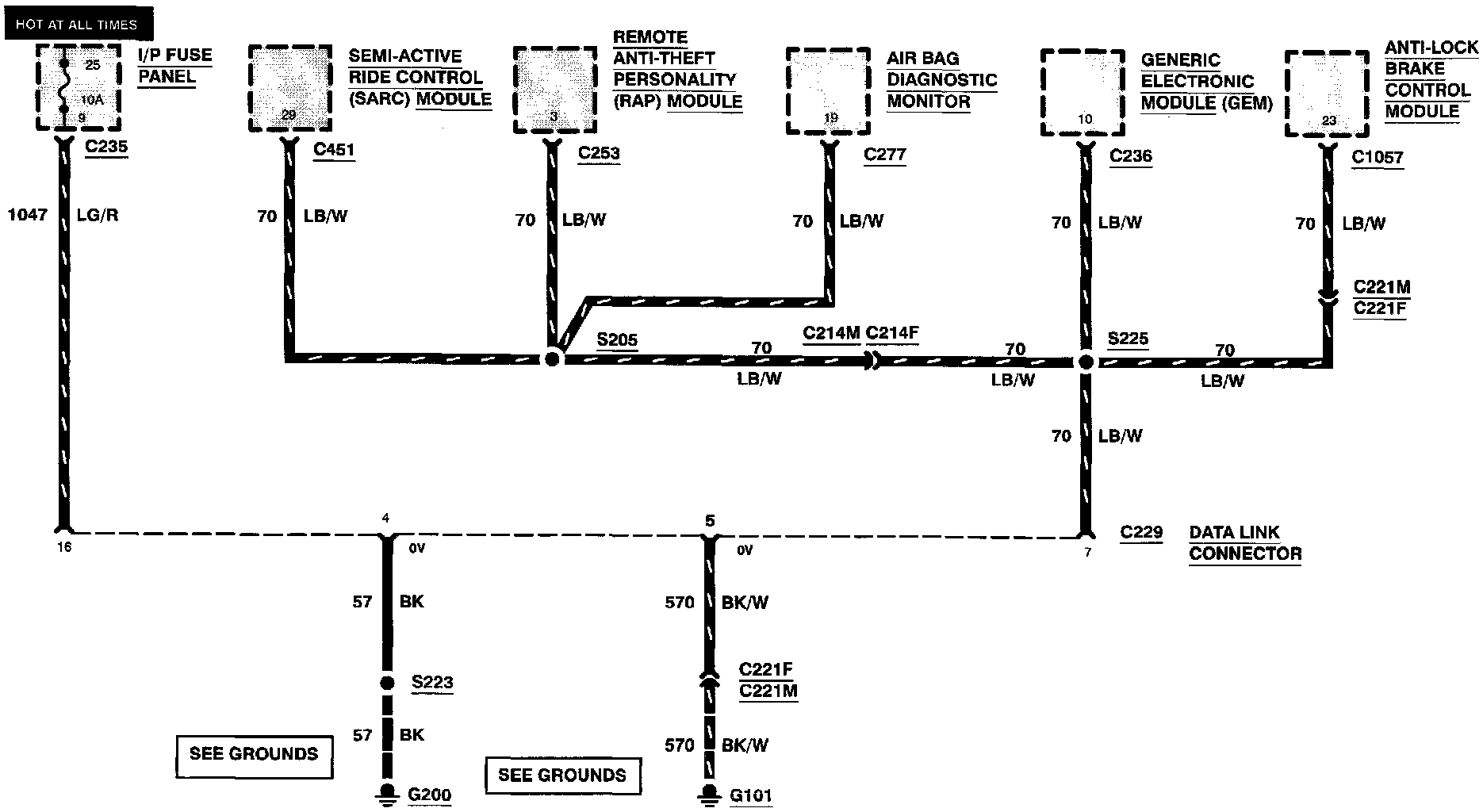

Multiplex Communication Network (Part 2 Of 2):
