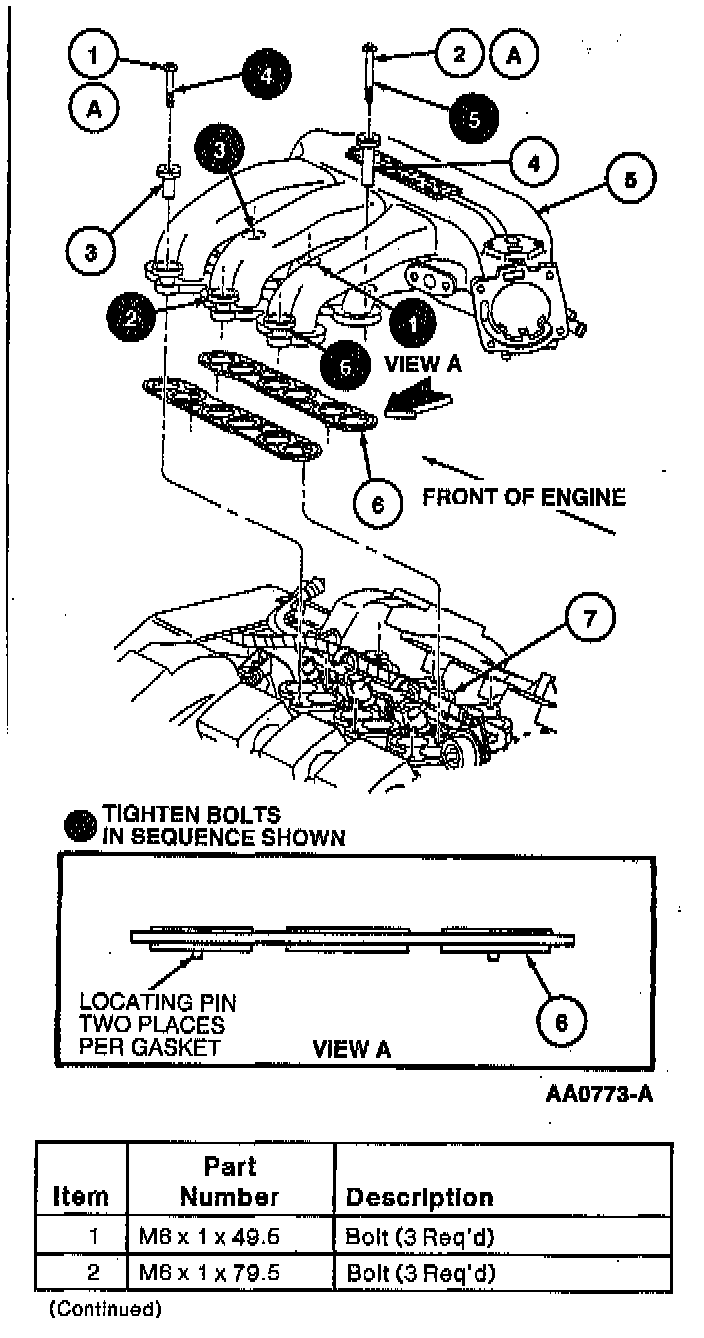

Intake Manifold

TORQUE SPECIFICATIONS





Lower Intake Manifold Bolts
Tighten to 8-12 Nm (71-106 inch. lbs.).


(Part 1 Of 2):




(Part 2 Of 2):





Upper Intake Manifold Bolts
Tighten to 8-12 Nm (71-106 inch. lbs.).
