Engine Views

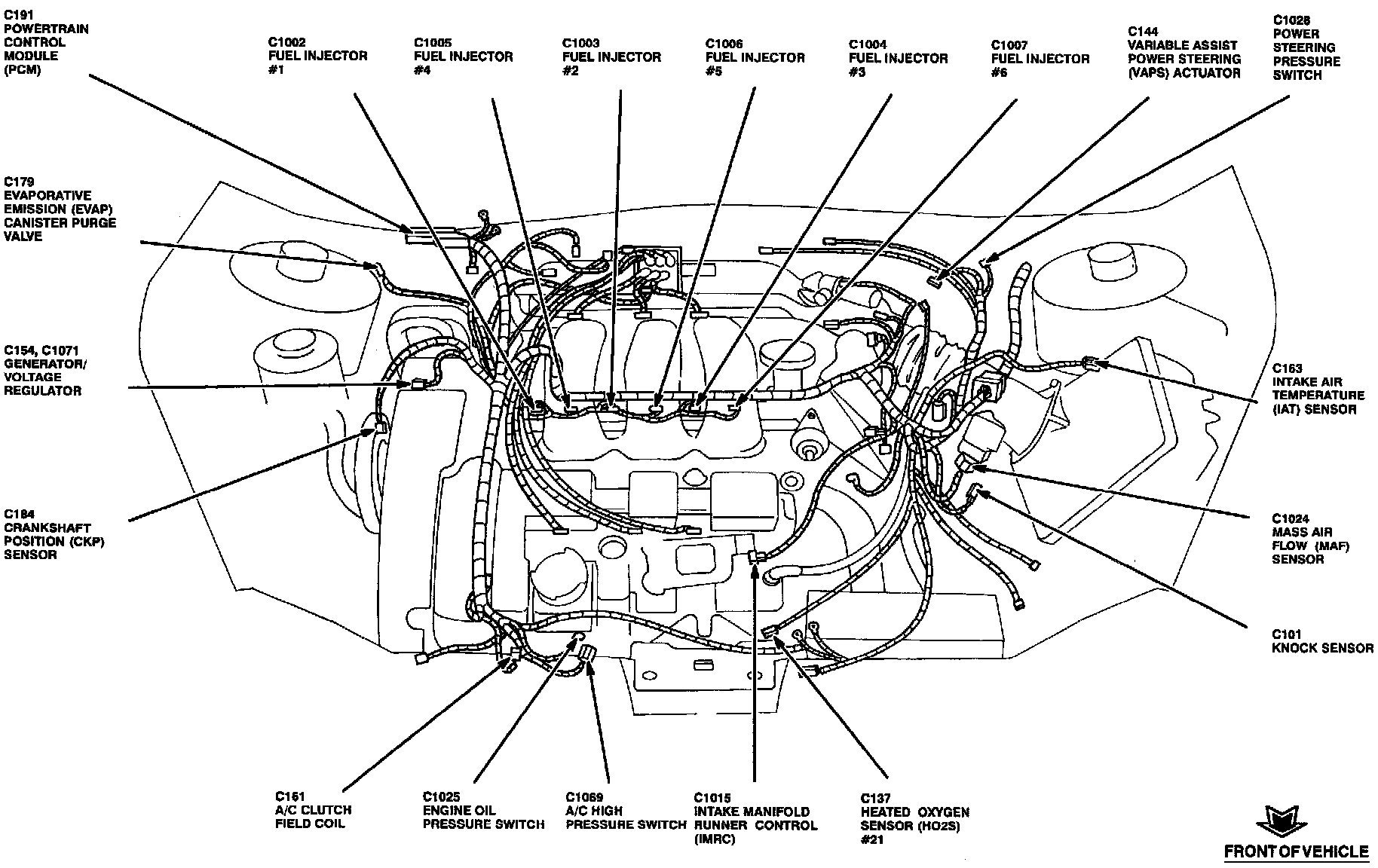

Engine View:

A/C CLUTCH FIELD COIL
A/C HIGH PRESSURE SWITCH
CRANKSHAFT POSITION SENSOR
ENGINE OIL PRESSURE SWITCH
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6
GENERATOR/VOLTAGE REGULATOR
HEATED OXYGEN SENSOR #21
INTAKE AIR TEMPERATURE SENSOR
INTAKE MANIFOLD RUNNER CONTROL
KNOCK SENSOR
MASS AIR FLOW SENSOR
POWER STEERING PRESSURE SWITCH
POWERTRAIN CONTROL MODULE
VARIABLE ASSIST POWER STEERING ACTUATOR

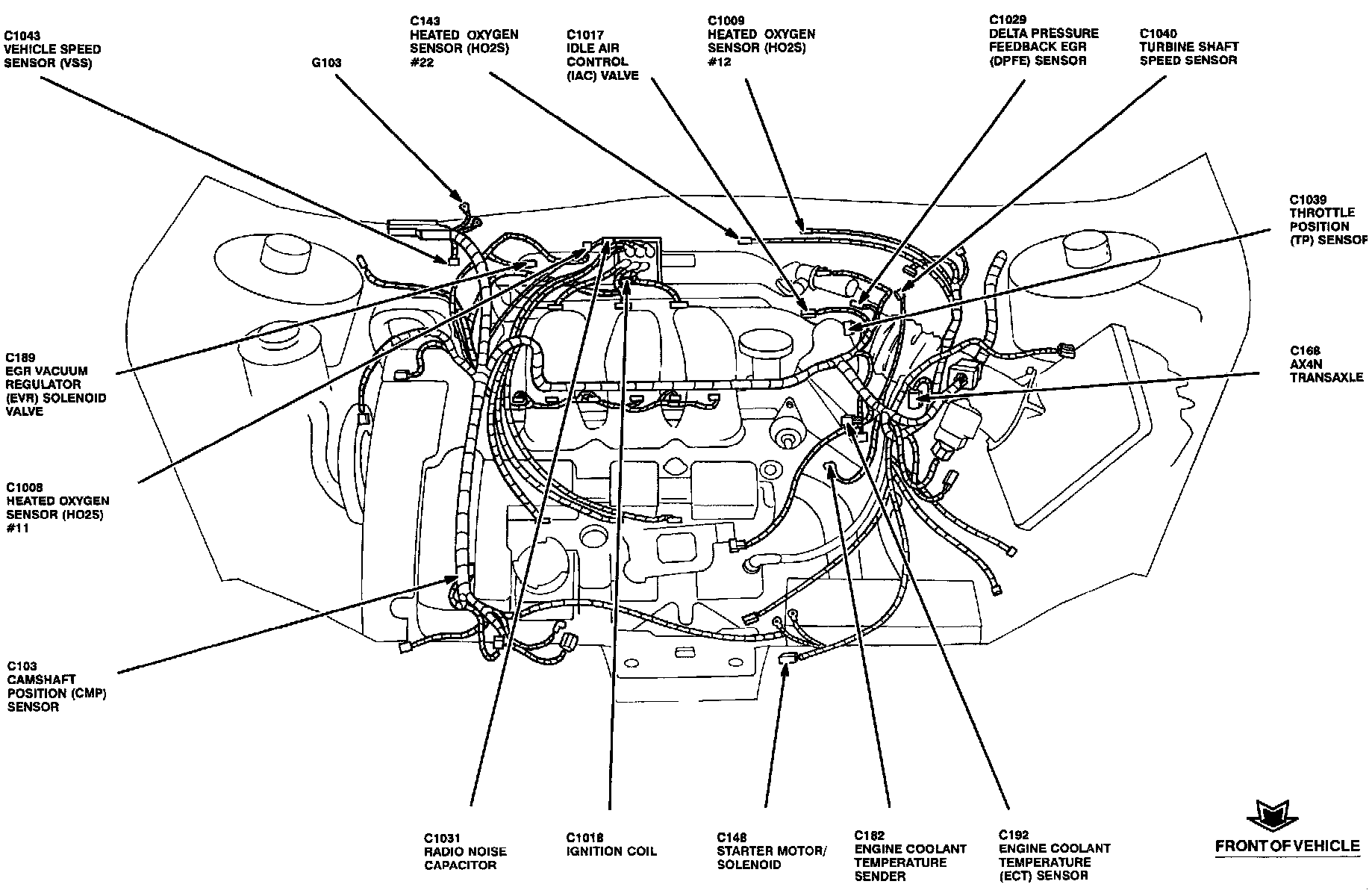

Engine View:

AX4N TRANSAXLE
CAMSHAFT POSITION SENSOR
DELTA PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID VALVE
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE SENSOR
HEATED OXYGEN SENSOR #11
HEATED OXYGEN SENSOR #12
HEATED OXYGEN SENSOR #22
IDLE AIR CONTROL VALVE
IGNITION COIL
RADIO NOISE CAPACITOR
STARTER MOTOR/SOLENOID
THROTTLE POSITION SENSOR
TURBINE SHAFT SPEED SENSOR
VEHICLE SPEED SENSOR
