Engine Control Module

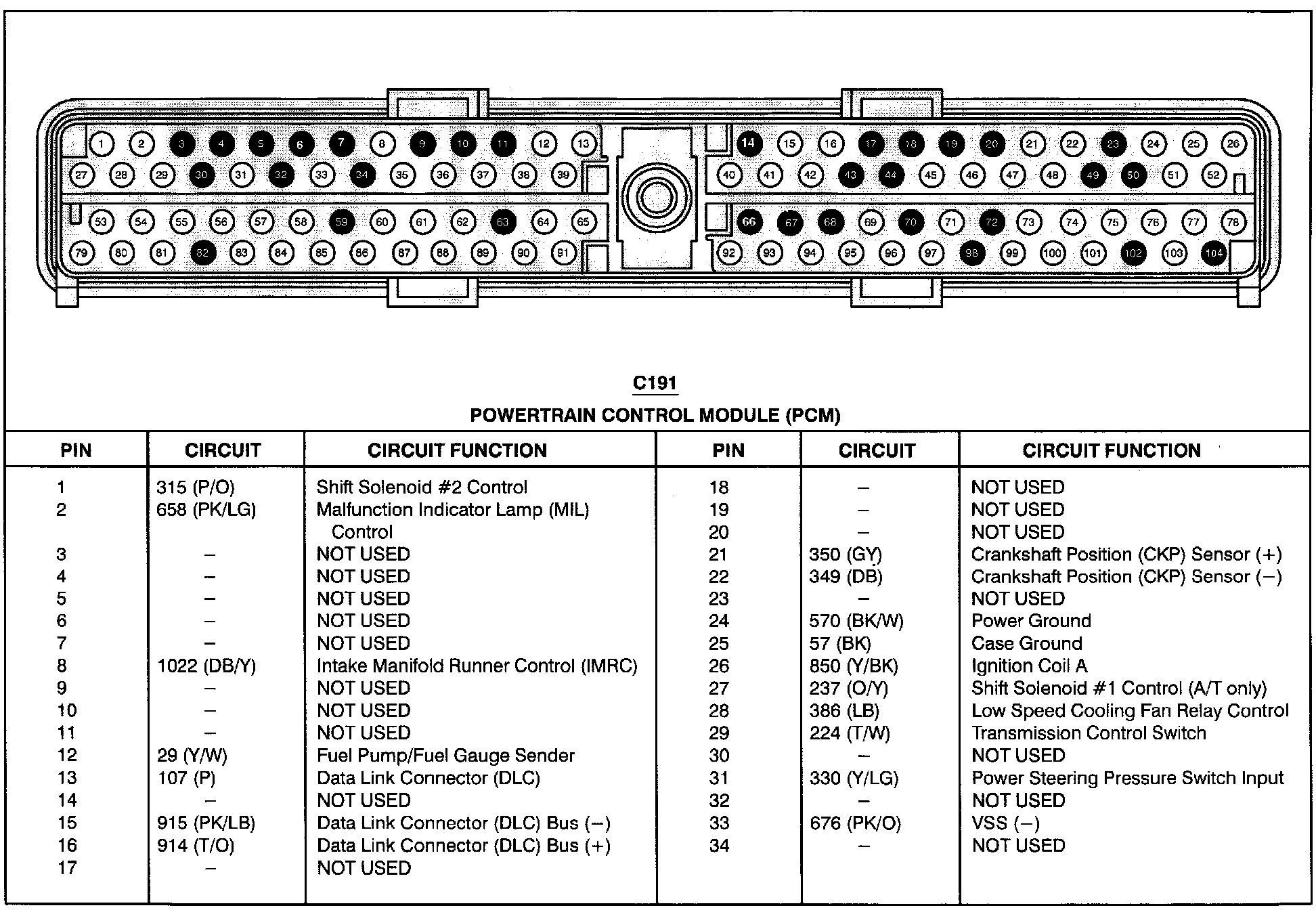

Power Control Module (Part 1 Of 3):

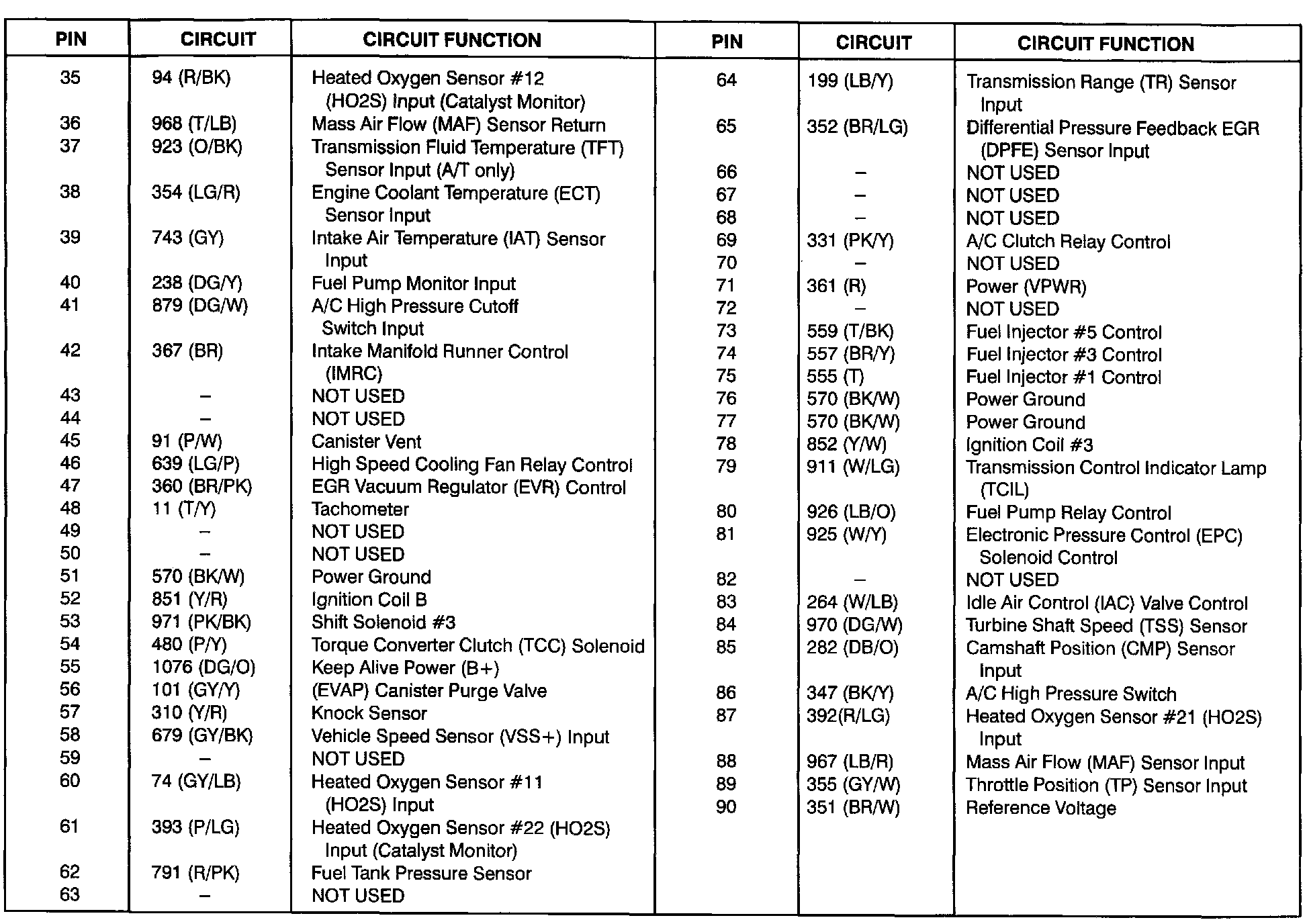

Power Control Module (Part 2 Of 3):




Power Control Module (Part 3 Of 3):
