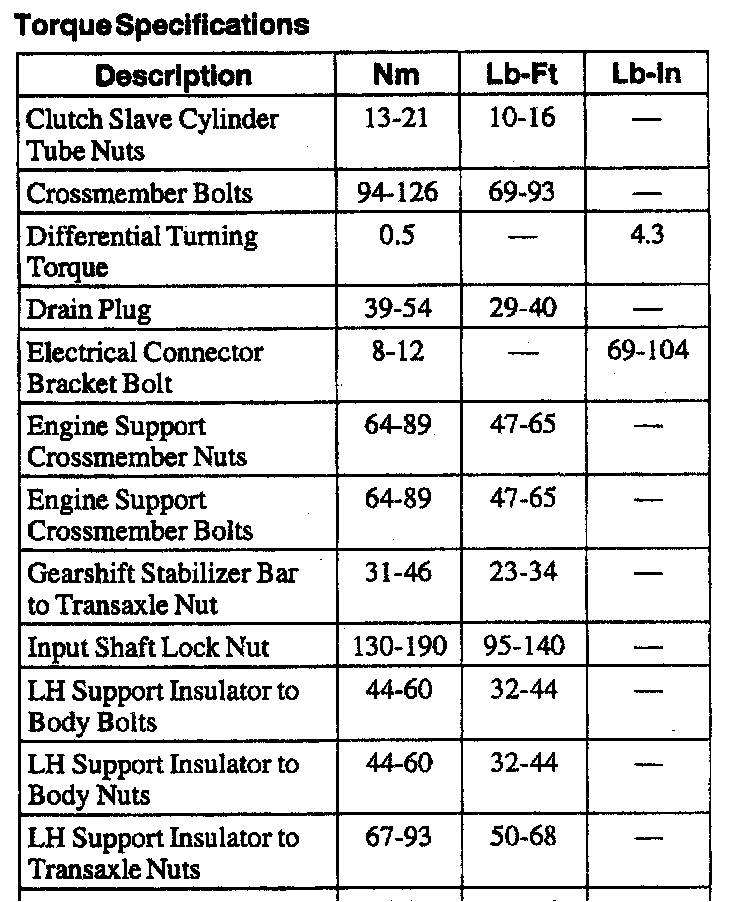

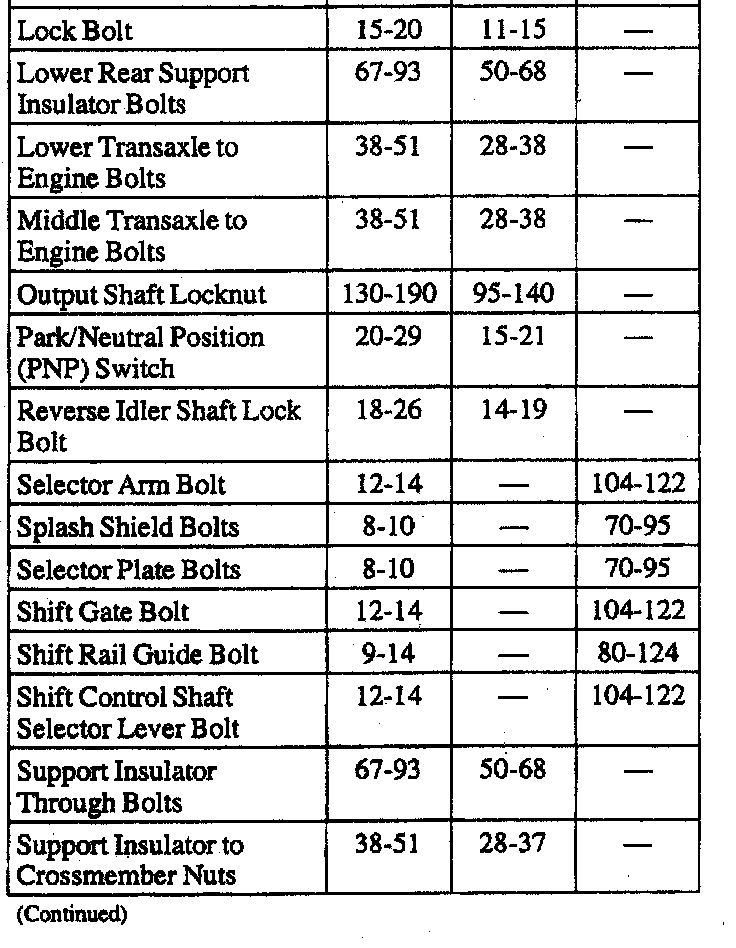

M/T Torque Data

G15M-R 5-spd M/T, Transaxle:





G15M-R 5-spd M/T, Transaxle:





G15M-R 5-spd M/T, Transaxle:





G15M-R 5-spd M/T, Transaxle:





G15M-R 5-spd M/T, Transaxle:
