Audible Warning Device Control Module: Locations




Warning Chime Module

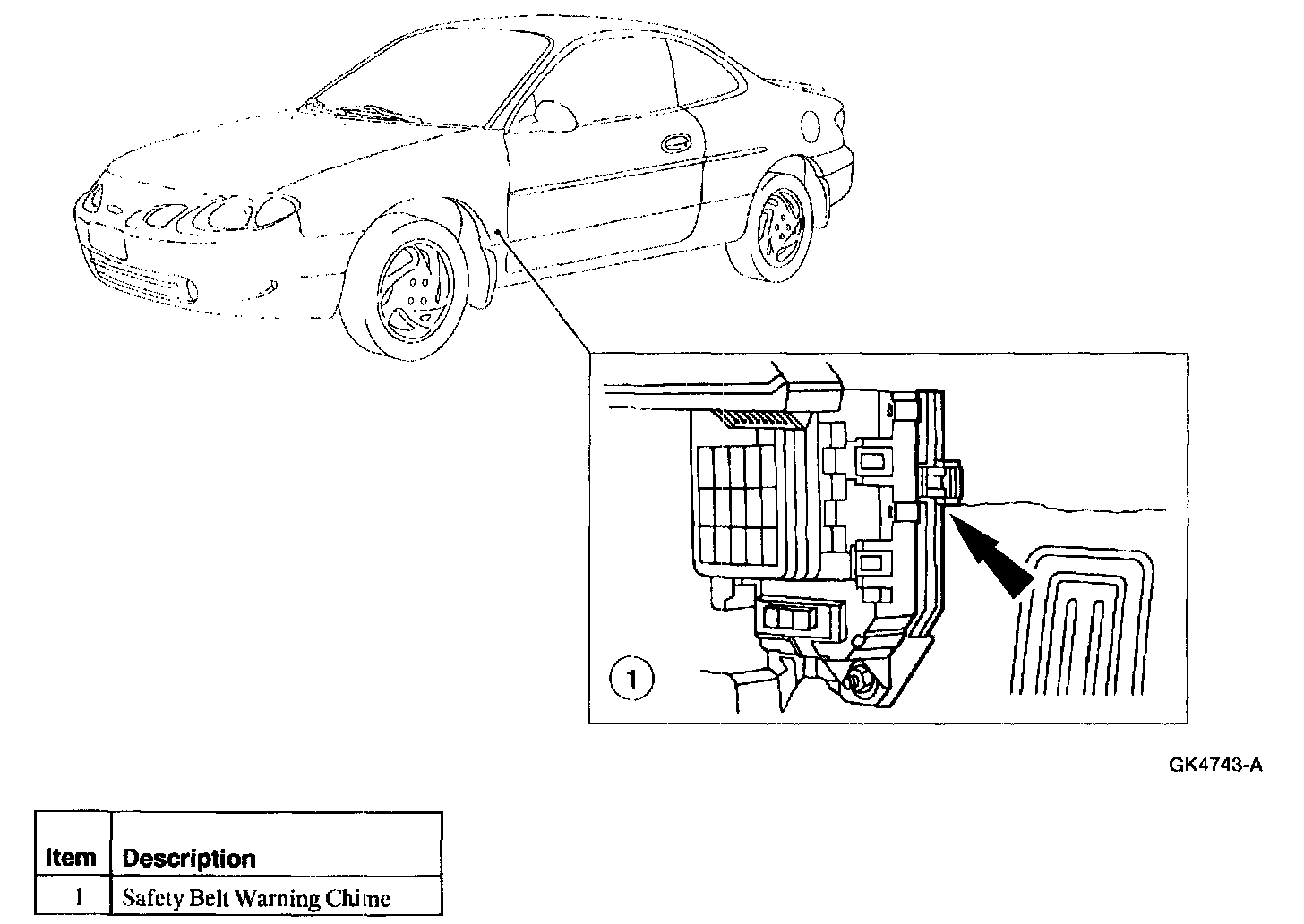

Cowl Views:





The Warning Chime Module is located behind LH side of the Instrument Panel (I/P), on rear of the I/P fuse panel.
