System Diagram

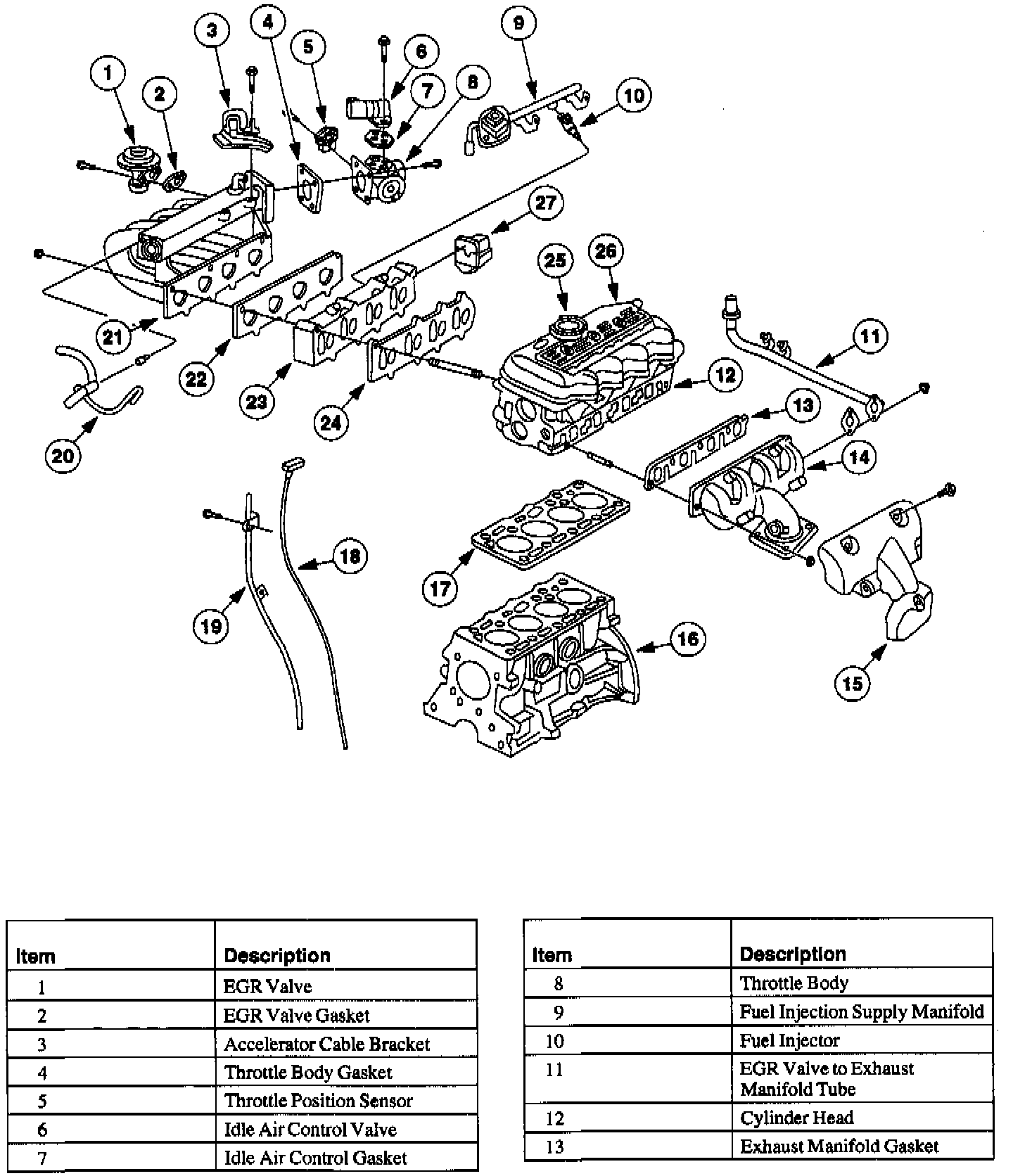

Upper Engine Components, Part 1 Of 2:



Upper Engine Components, Part 2 Of 2:

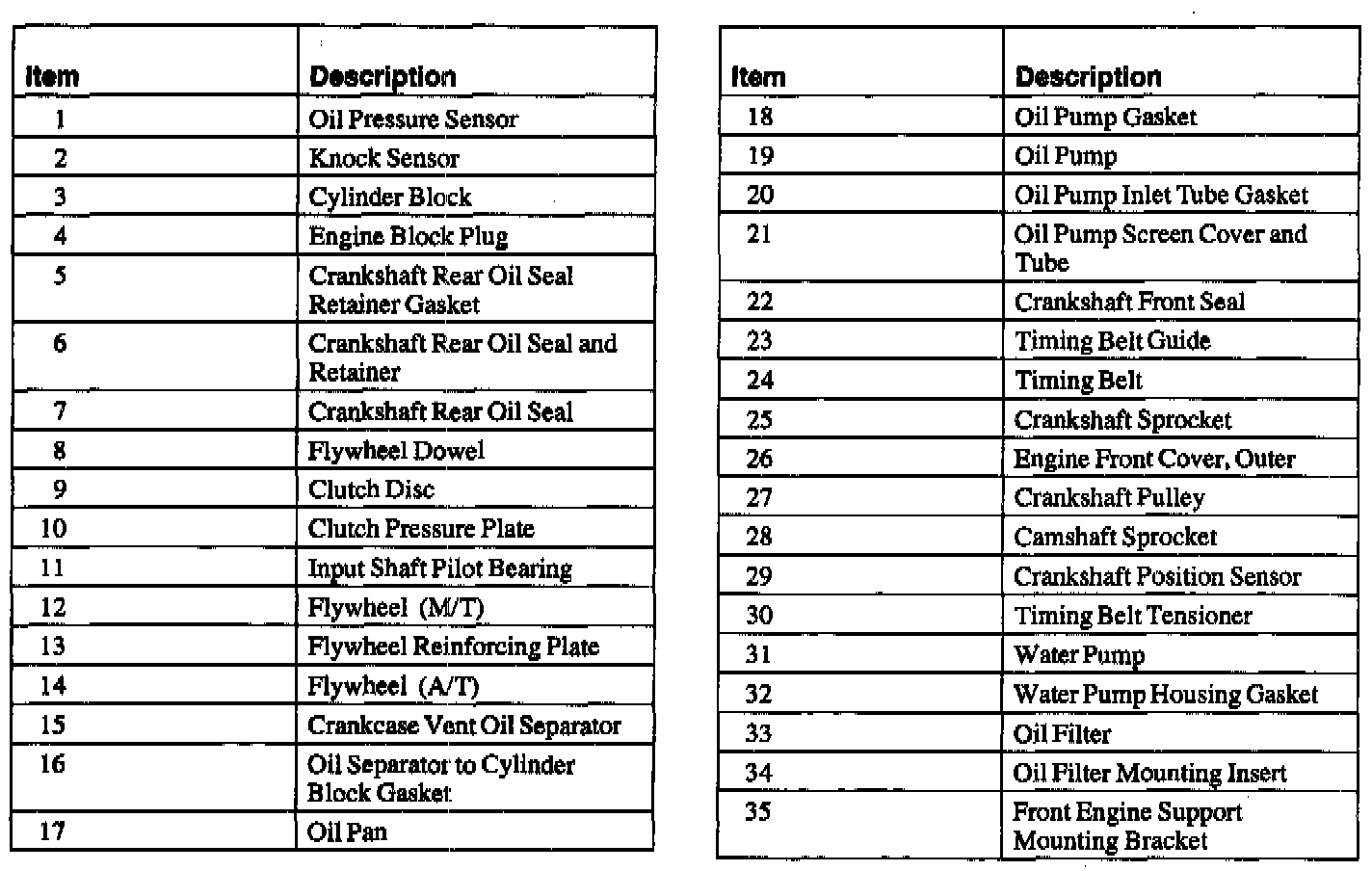

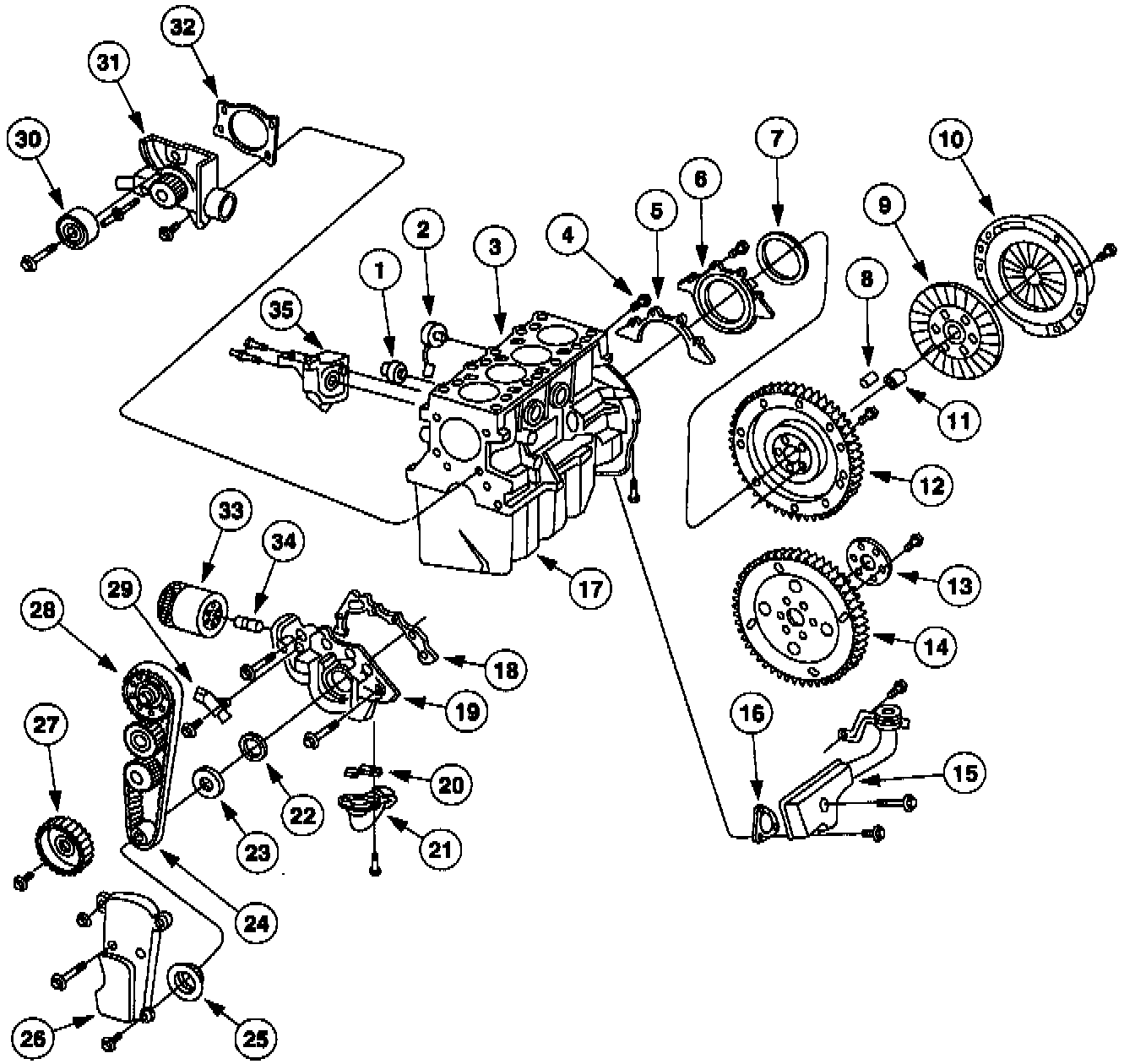

Lower Engine Components, Part 1 Of 4:



Lower Engine Components, Part 2 Of 4:

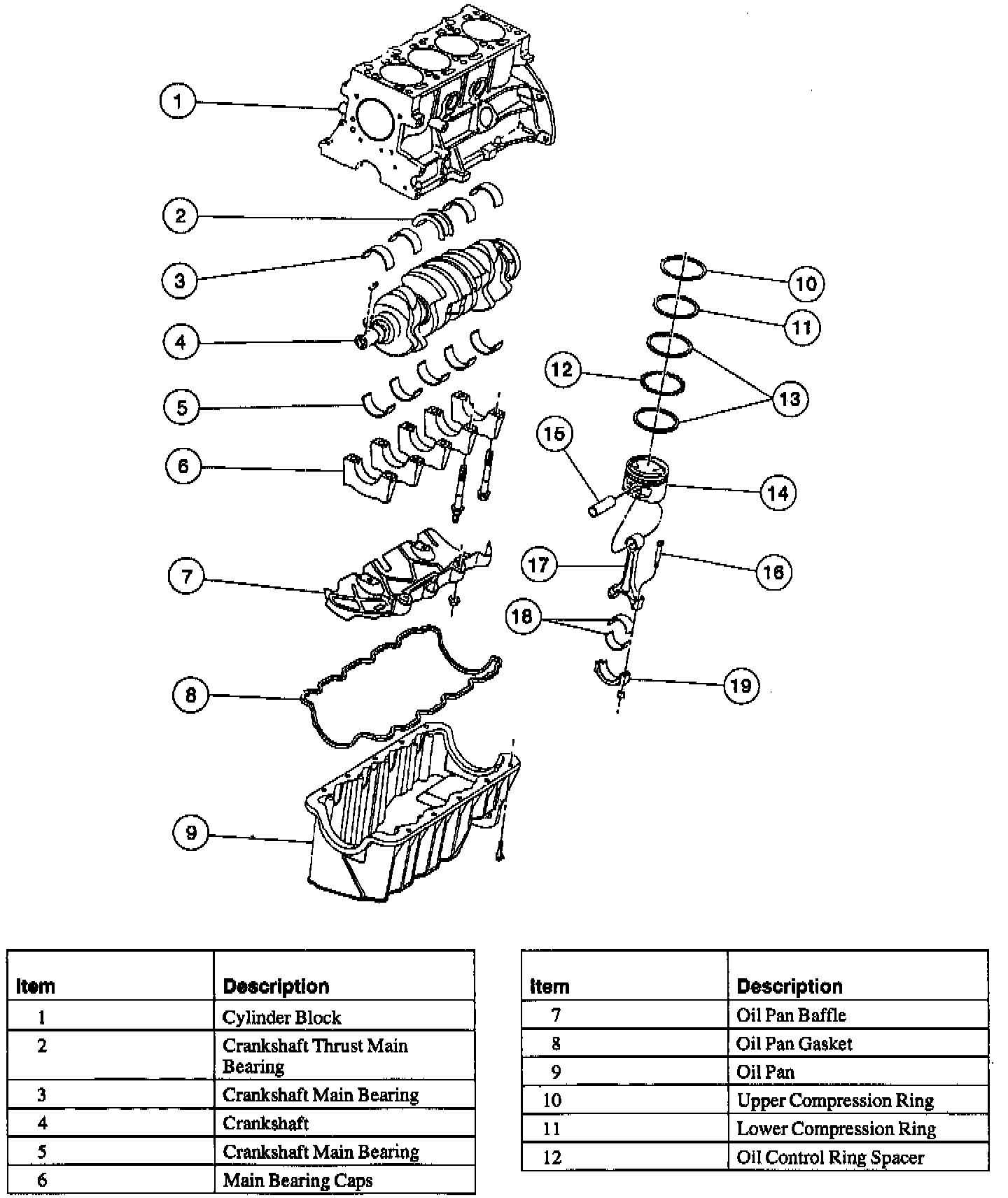

Lower Engine Components, Part 3 Of 4:



Lower Engine Components, Part 4 Of 4:
