EGR Monitor

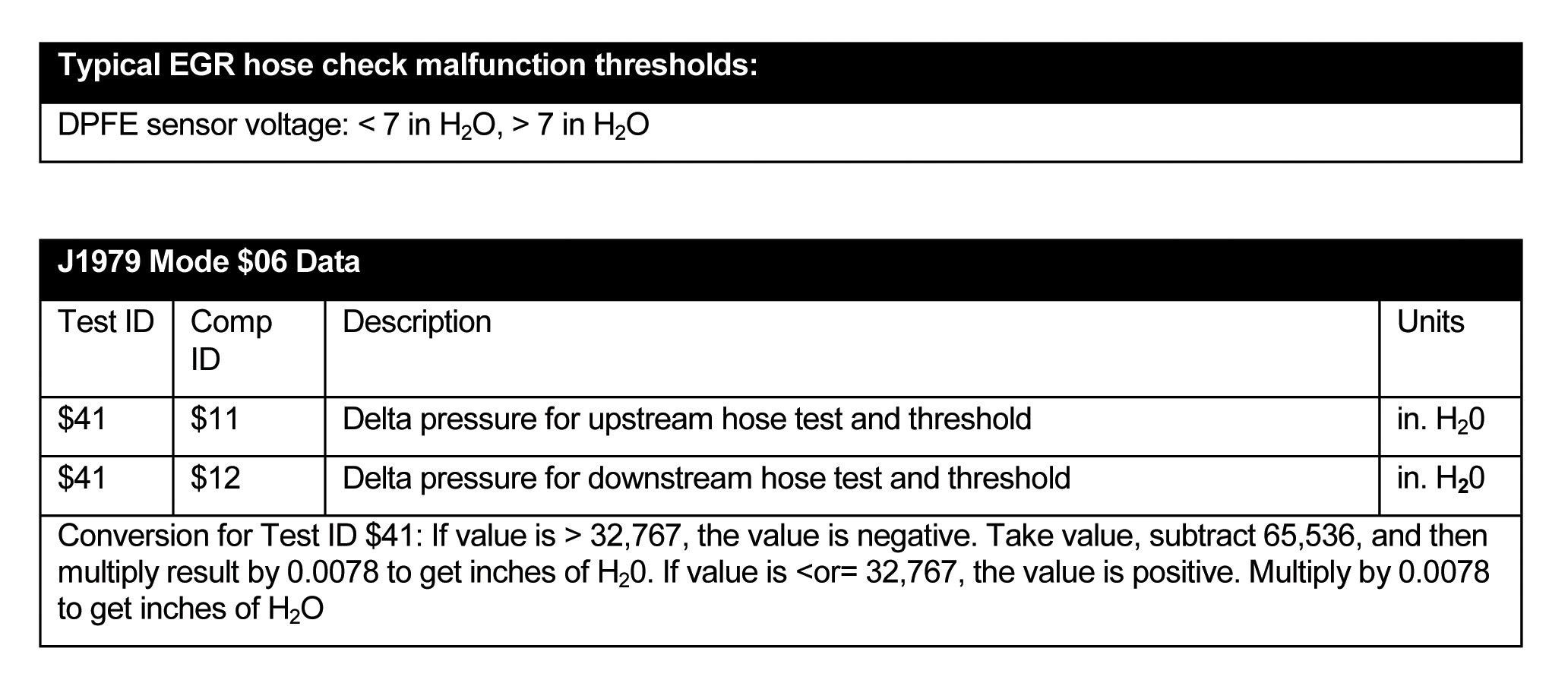

Fig 1: Mode $06 Data For EGR Hose Check Monitor
Courtesy of FORD MOTOR CO.

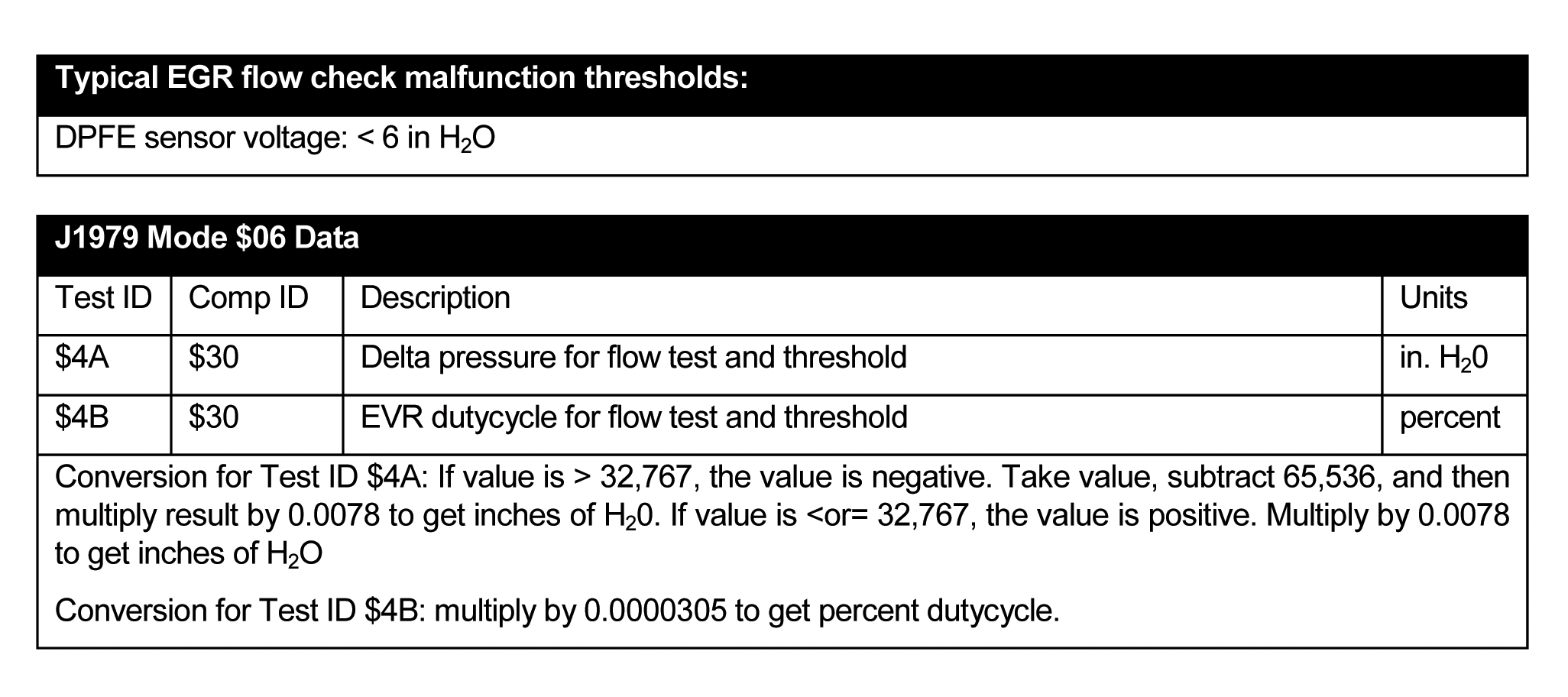

Fig 2: Mode $06 Data For EGR Flow Check Monitor
Courtesy of FORD MOTOR CO.

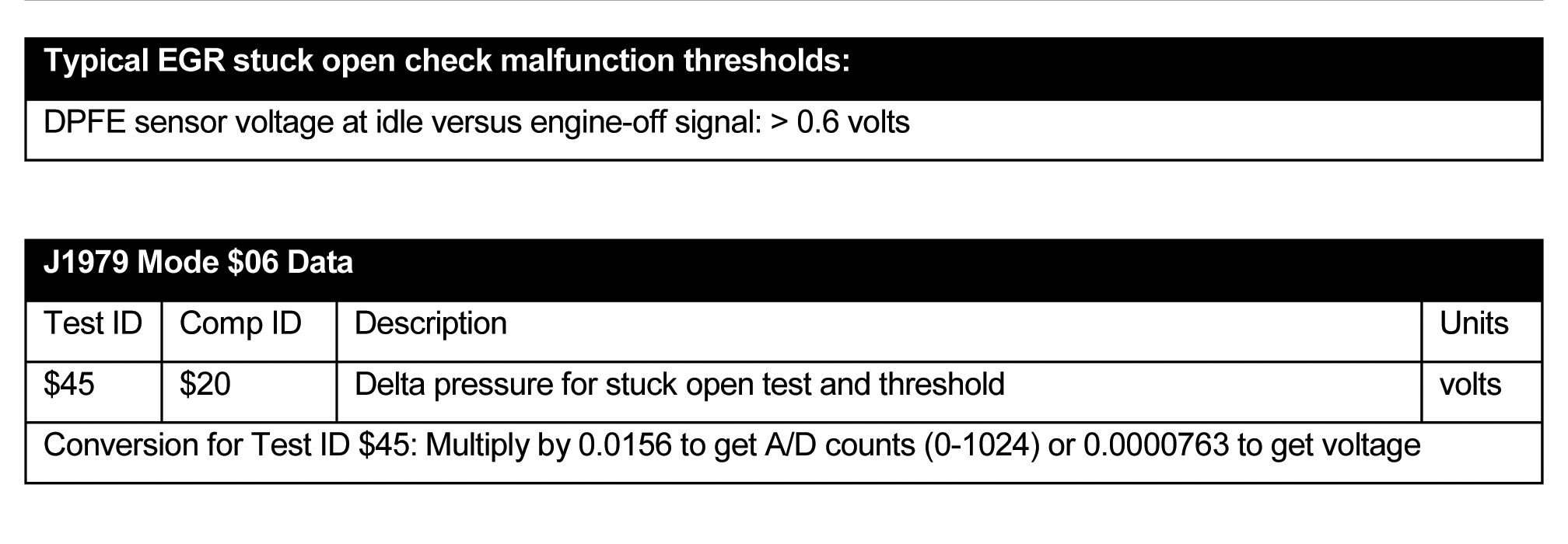

Fig 3: Mode $06 Data For EGR Stuck Open Check Monitor
Courtesy of FORD MOTOR CO.
