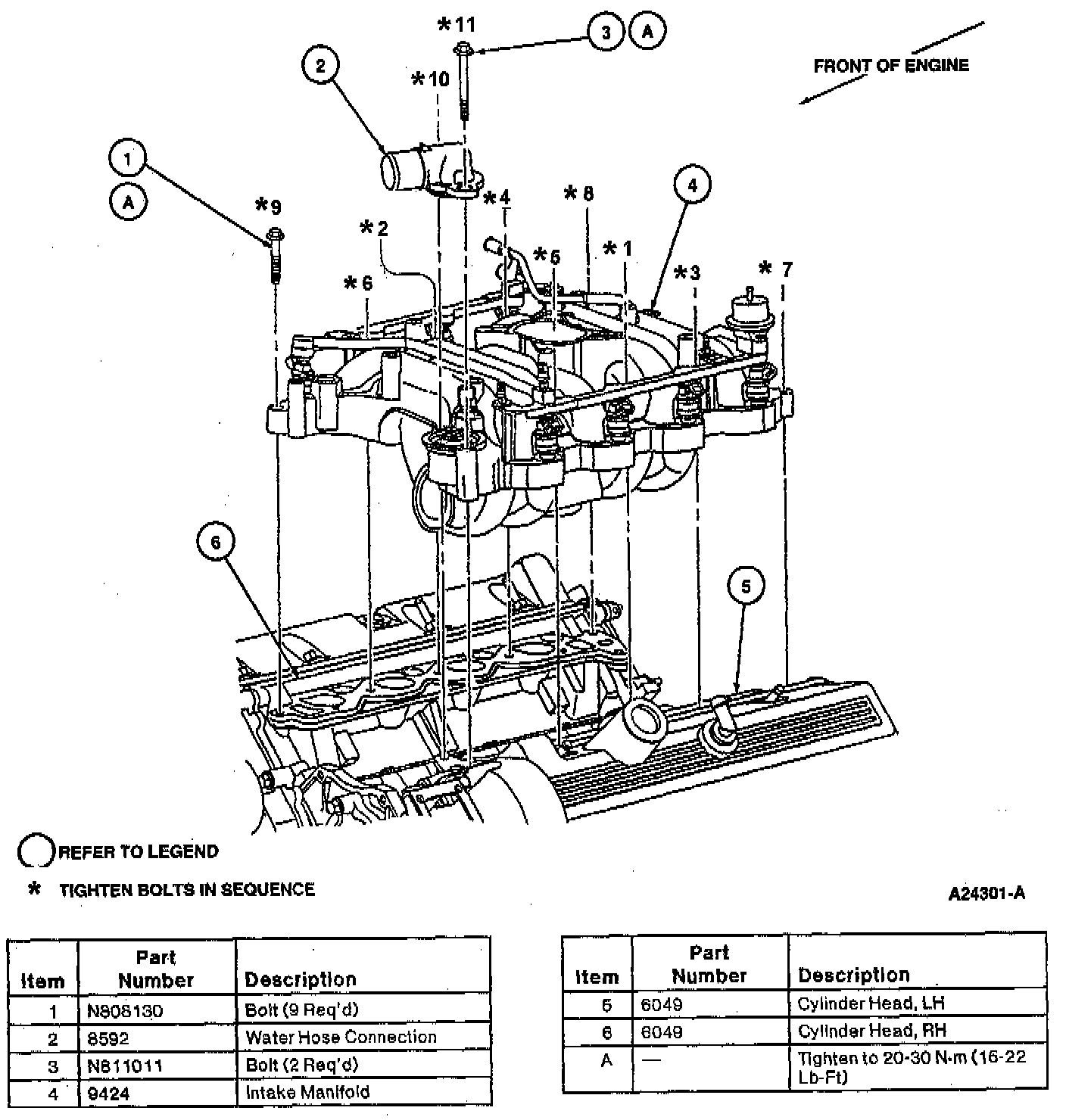

Intake Manifold

Intake Manifold
Retaining Bolts: 20-30 Nm 15-22 ft. lbs.)


Throttle Body
Install throttle body, new throttle body gasket and four bolts to the intake manifold adapter. Tighten retaining bolts to 8-12 Nm (71-106 lb in).
