With Molded On Primary Junction Box

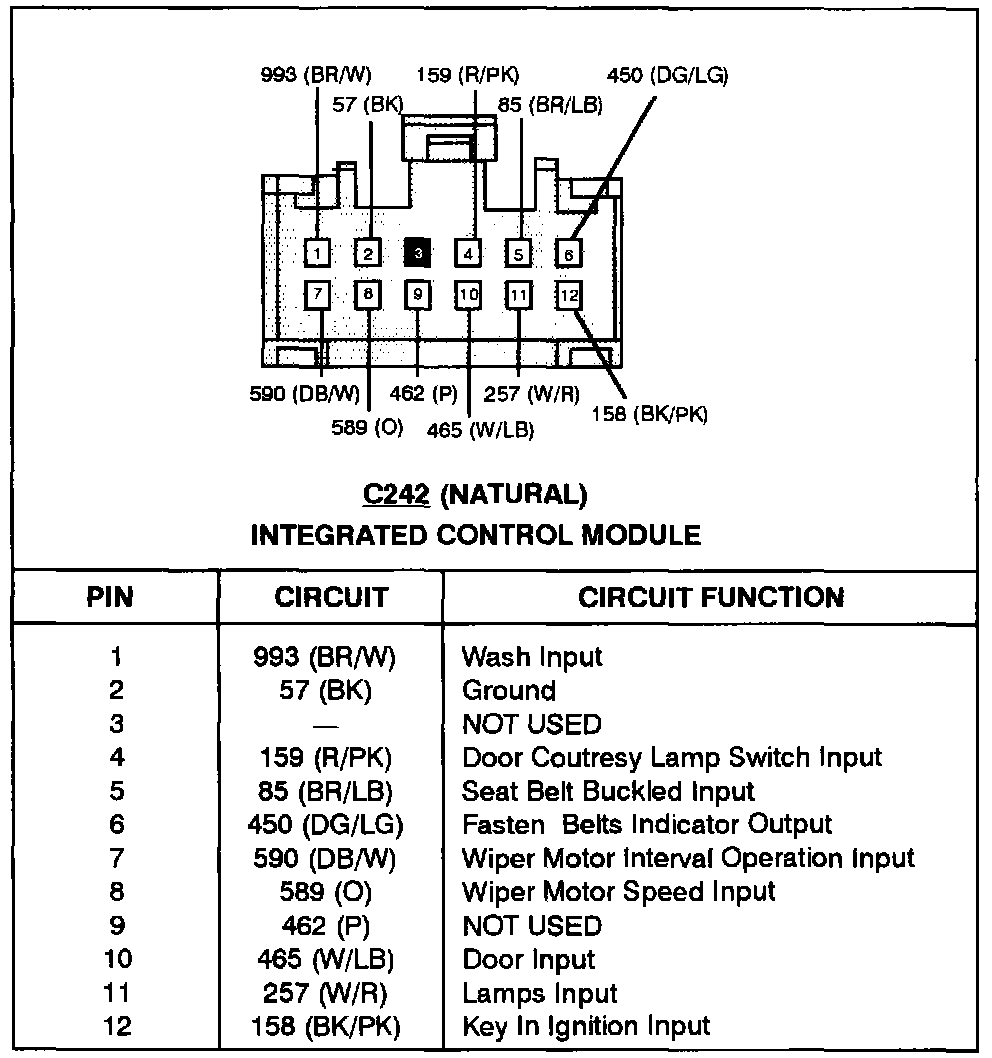

Integrated Control Module:




Integrated Control Module (C295):




Integrated Control Module (C294):
