Power Window Relay: Locations

Behind Instrument Panel View:

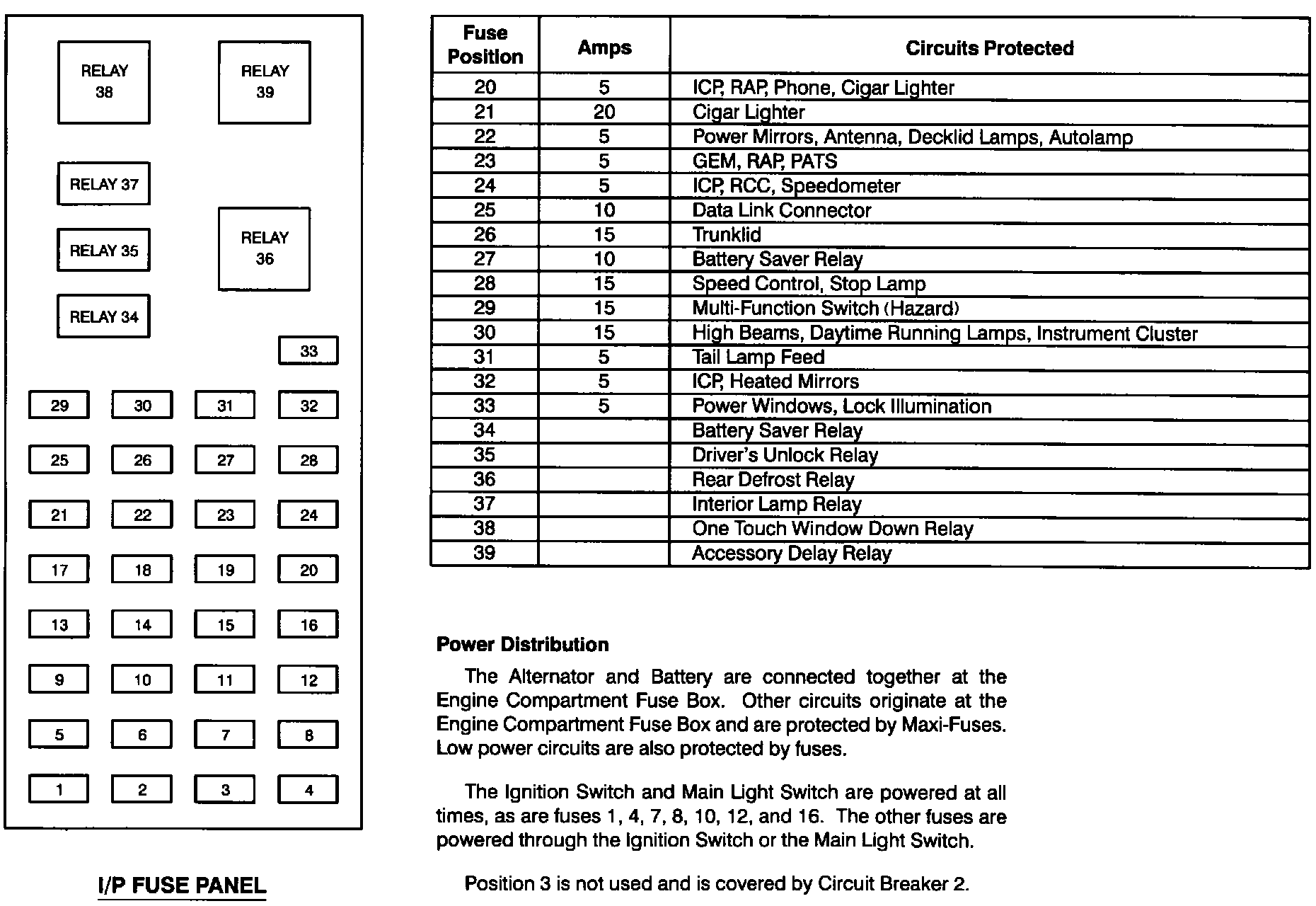

Instrument Panel Fuse Panel - Part 2 Of 2:





The One Touch Window Down Relay is located in the instrument panel fuse panel.
