With AX4S Transmission

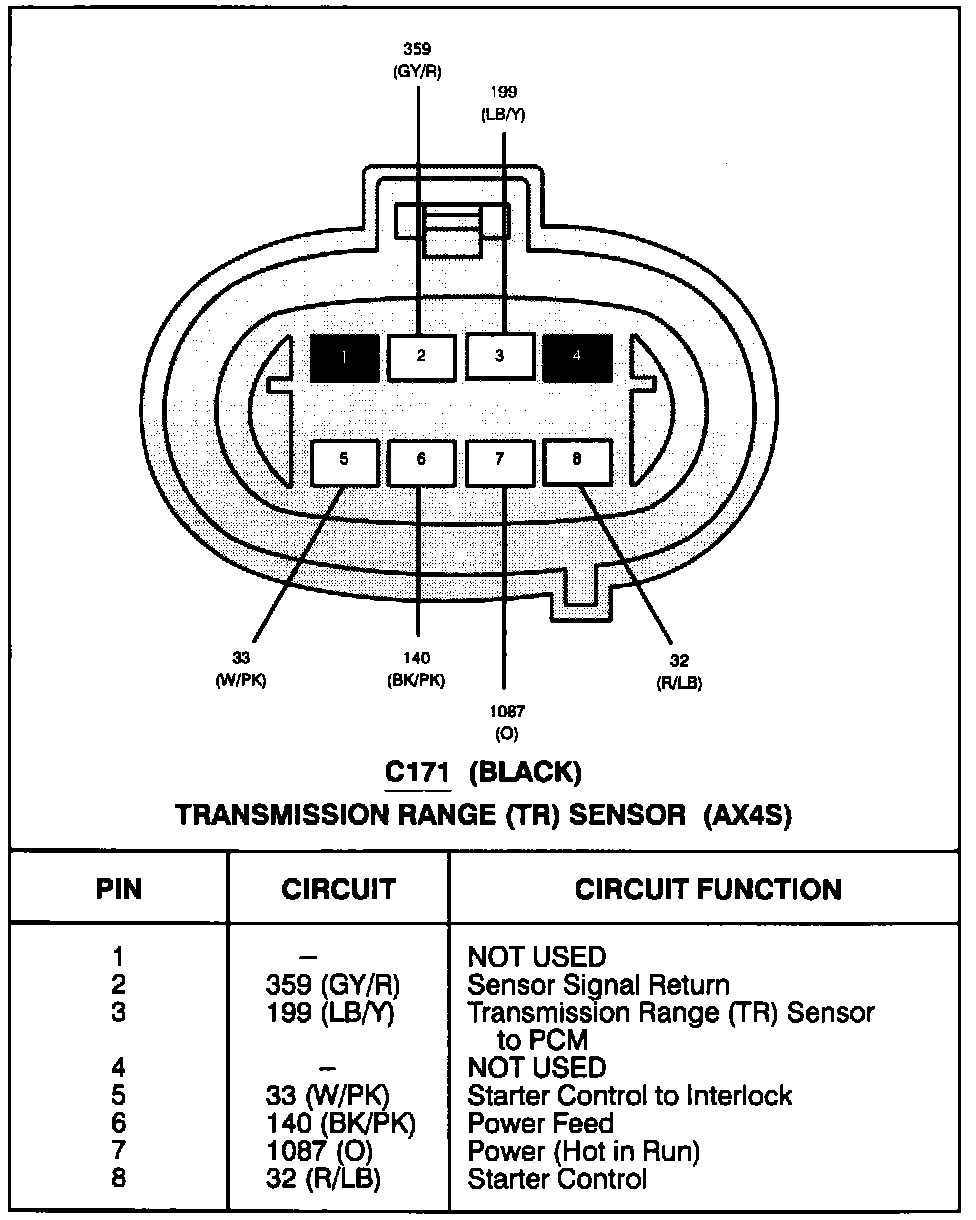

Transmission Range (TR) Sensor - Terminal Side:
Transmission Range Sensor (AX4S):
