Transmission Position Sensor/Switch
>>
Diagrams
>>
With AX4N Transmission
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
With AX4N Transmission
Transmission Range (TR) Sensor Vehicle Harness Connector:

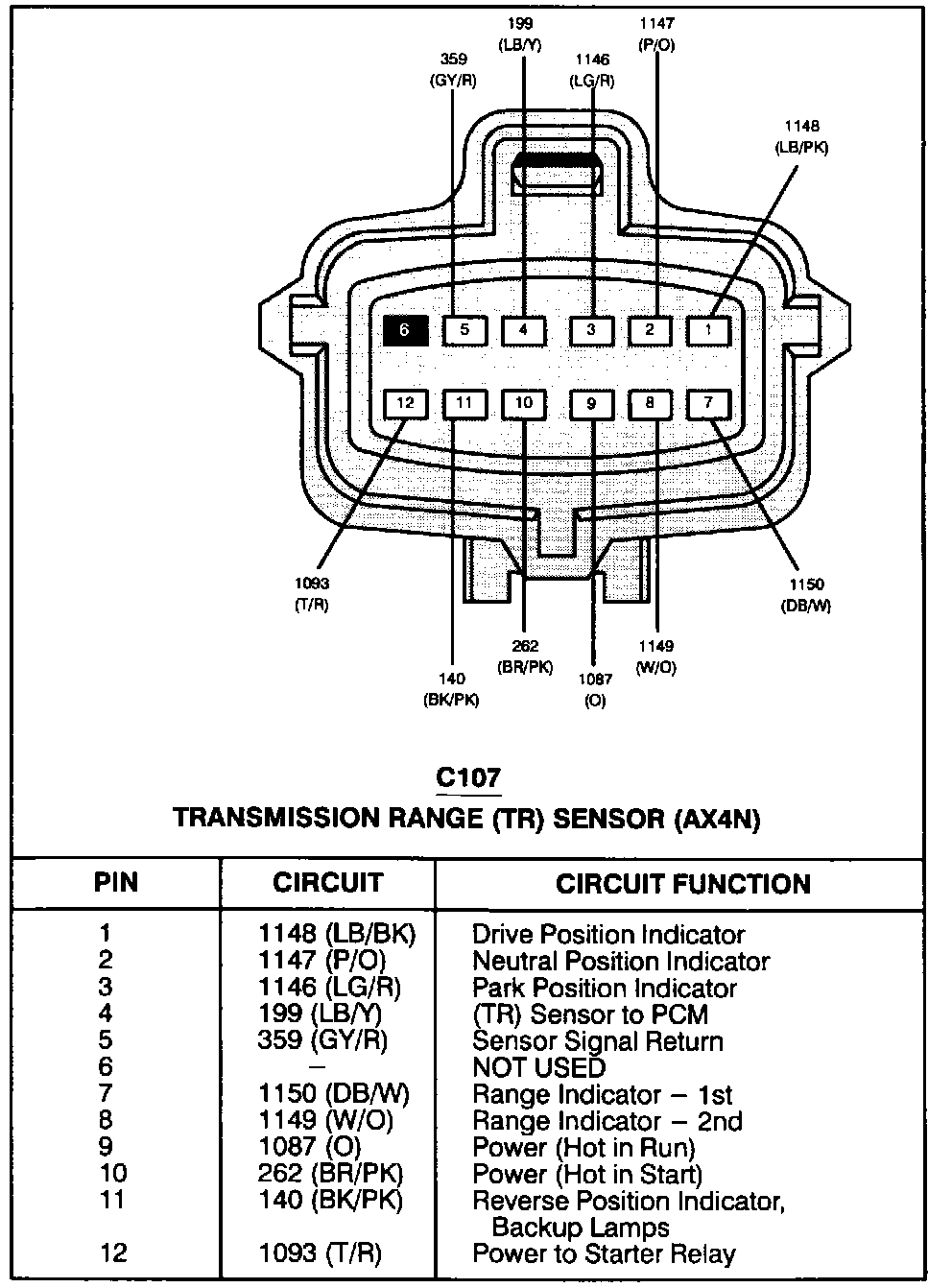

Transmission Range Sensor (AX4N):
