Taurus V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Engine Compartment Fuse/Relay Box
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

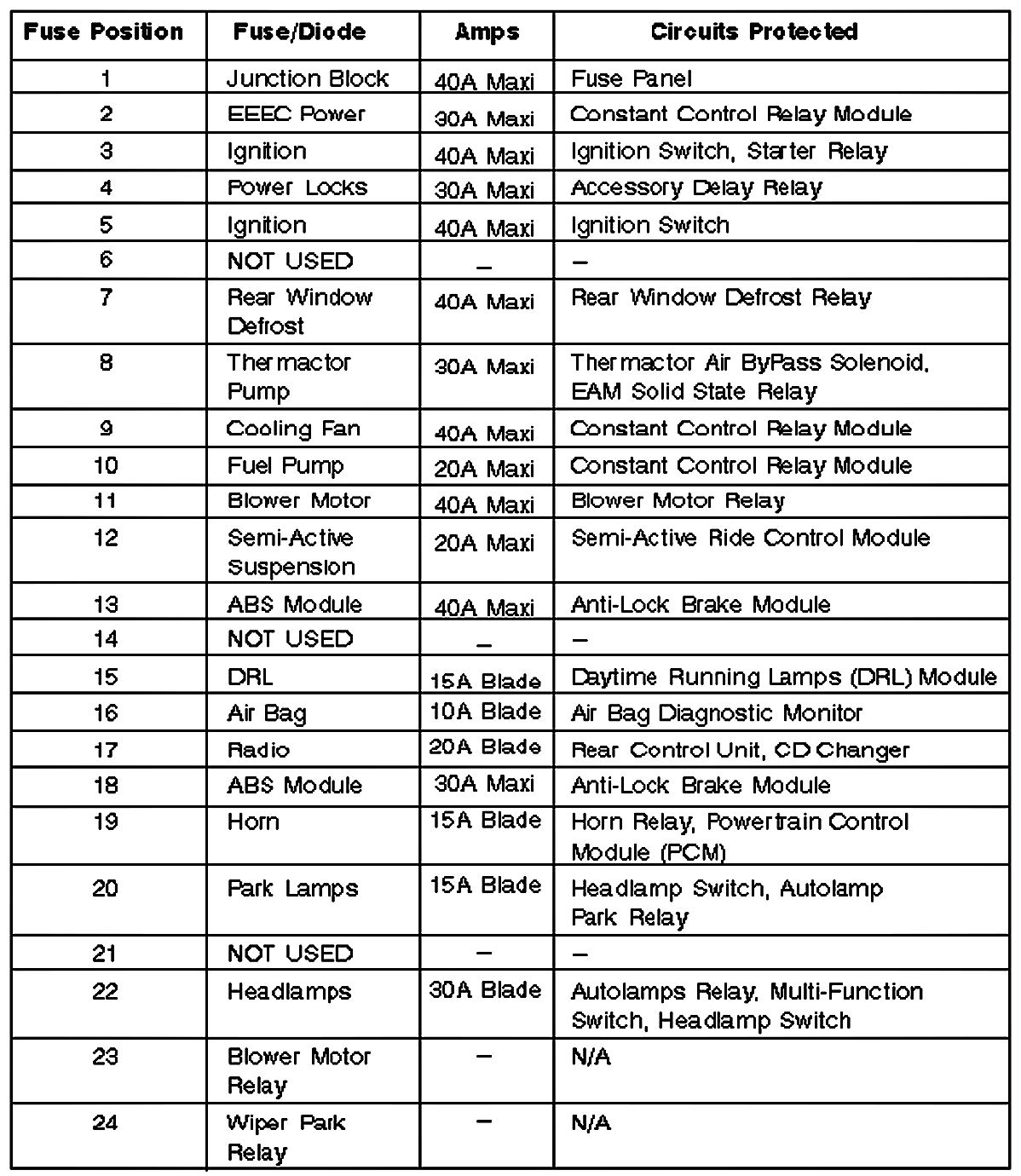

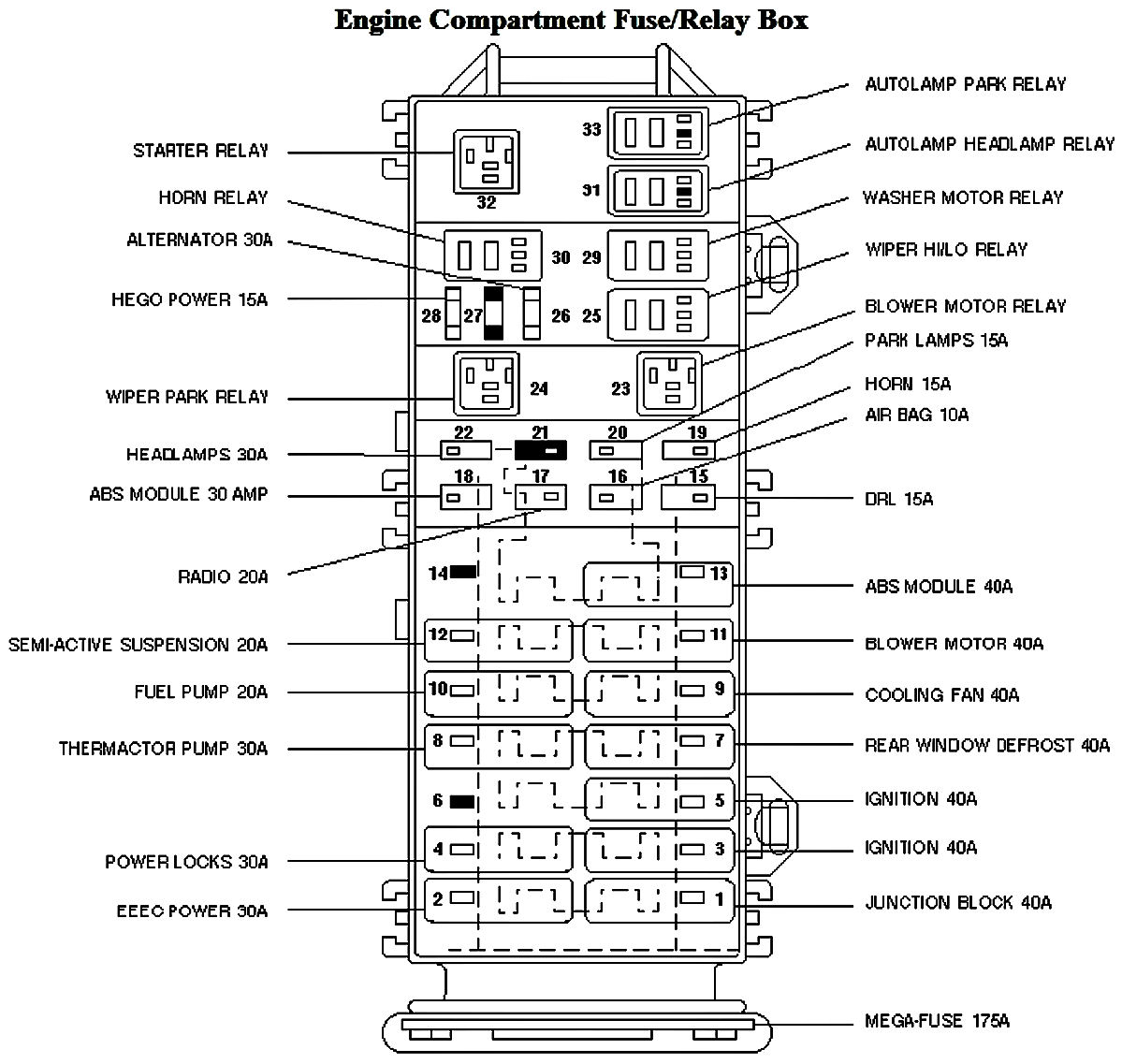

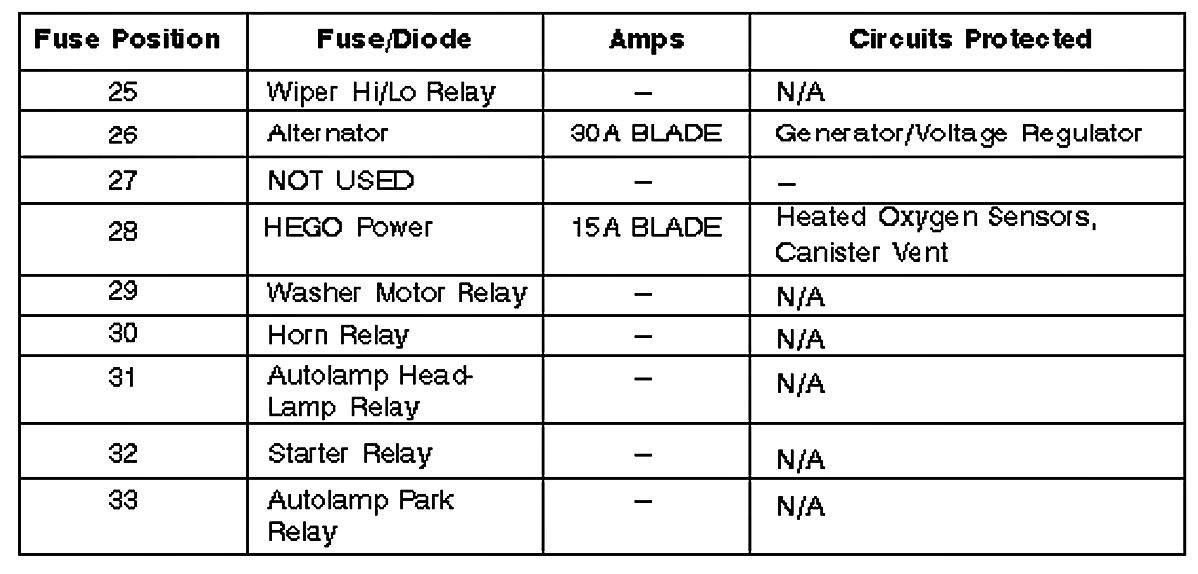

Engine Compartment Fuse/Relay Box
Note:
The fuse/Relay Box is located in the engine compartment near the battery.
