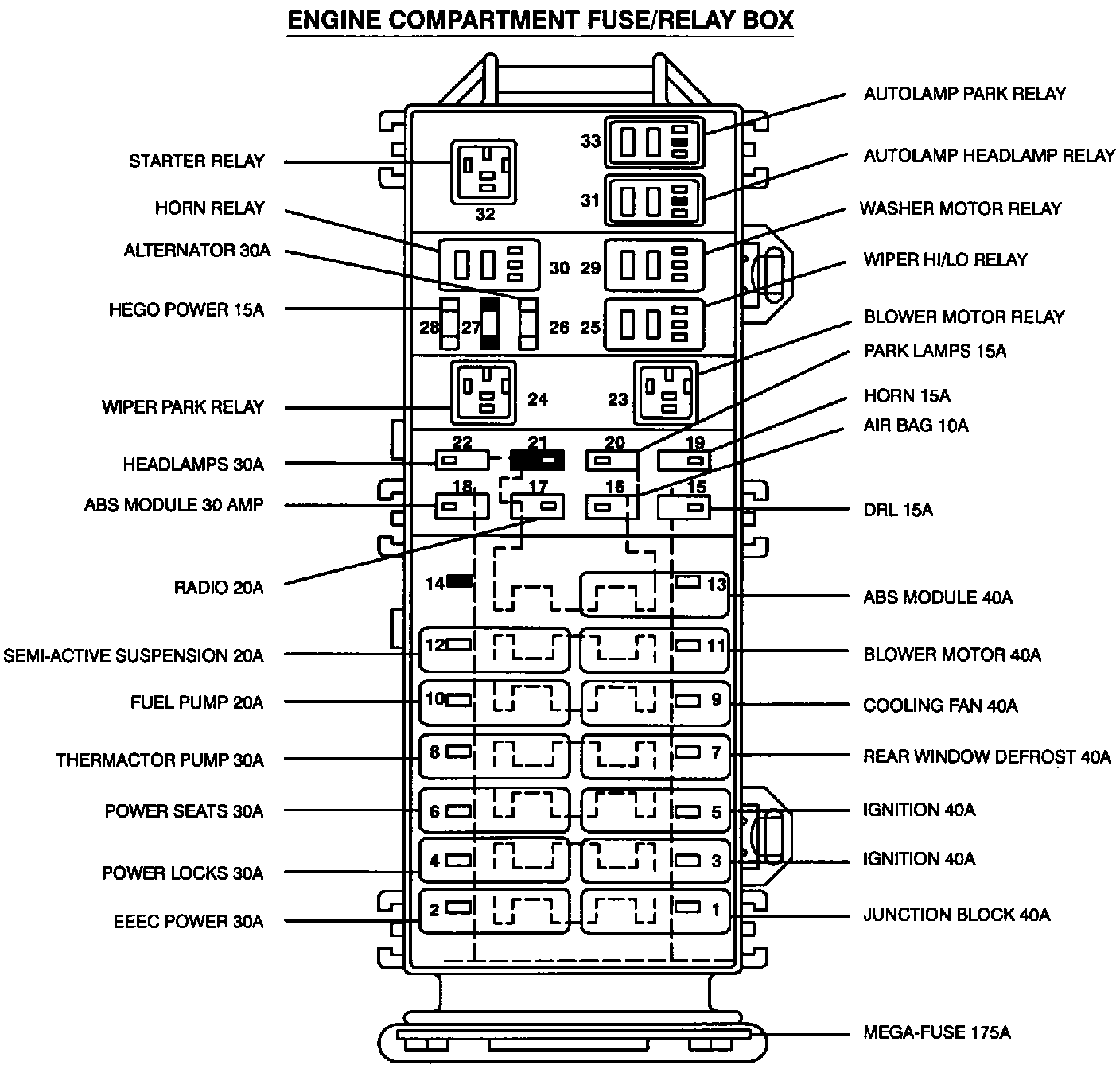

Engine Compartment Fuse/Relay Box

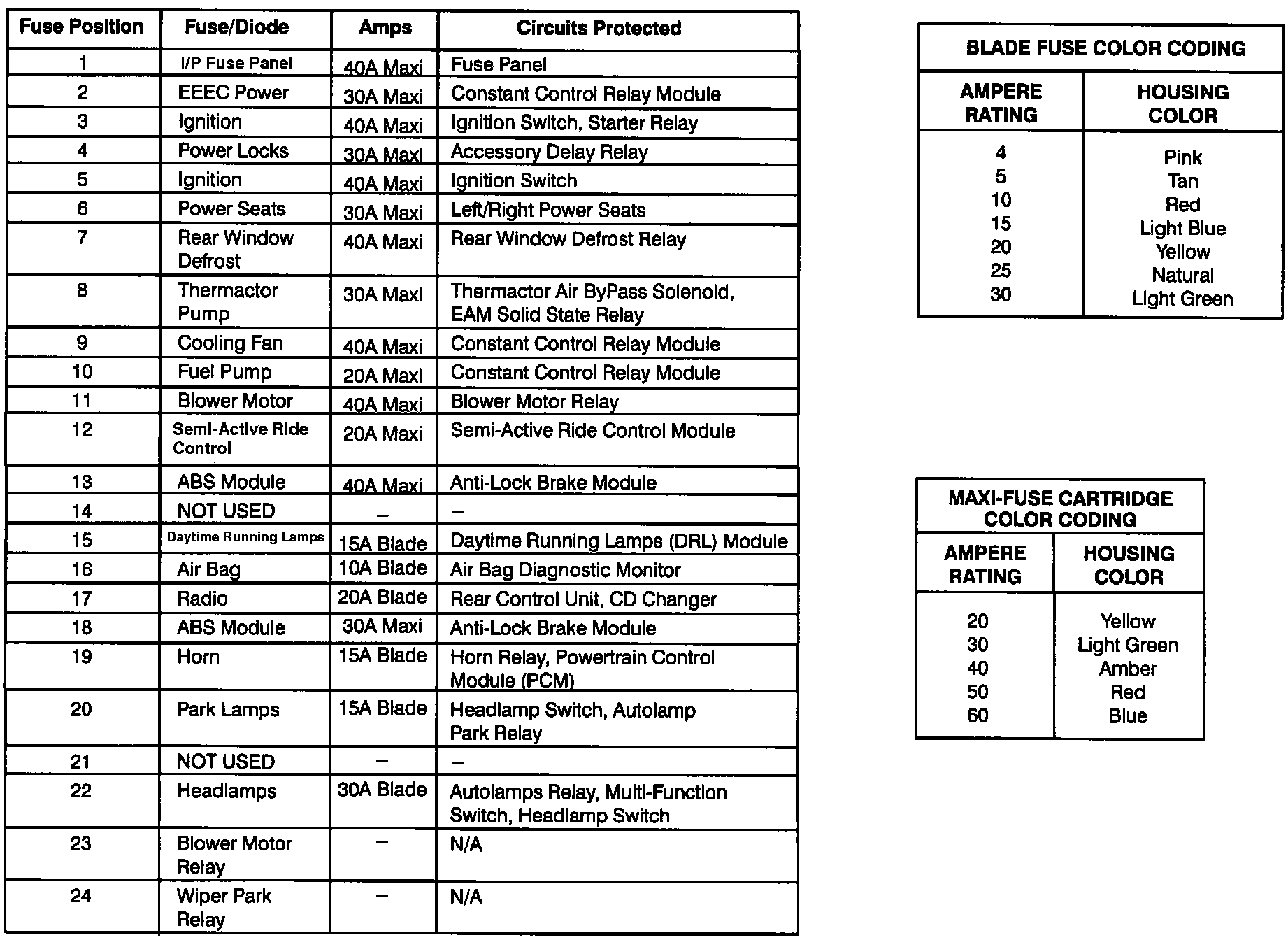

Engine Compartment Fuse/Relay Box - Part 1 Of 3:



Engine Compartment Fuse/Relay Box - Part 2 Of 3:

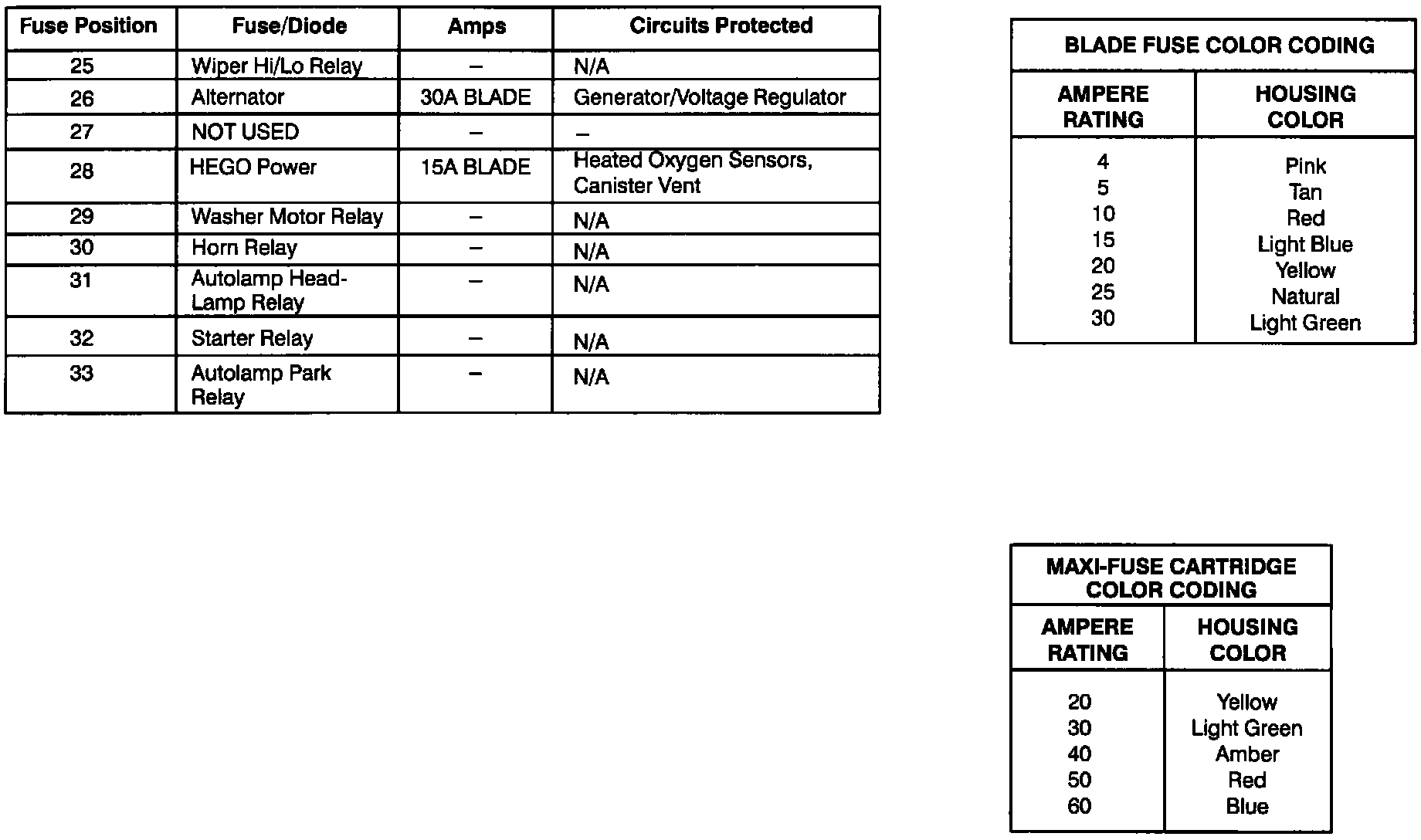

Engine Compartment Fuse/Relay Box - Part 3 Of 3:
