Fuse Block

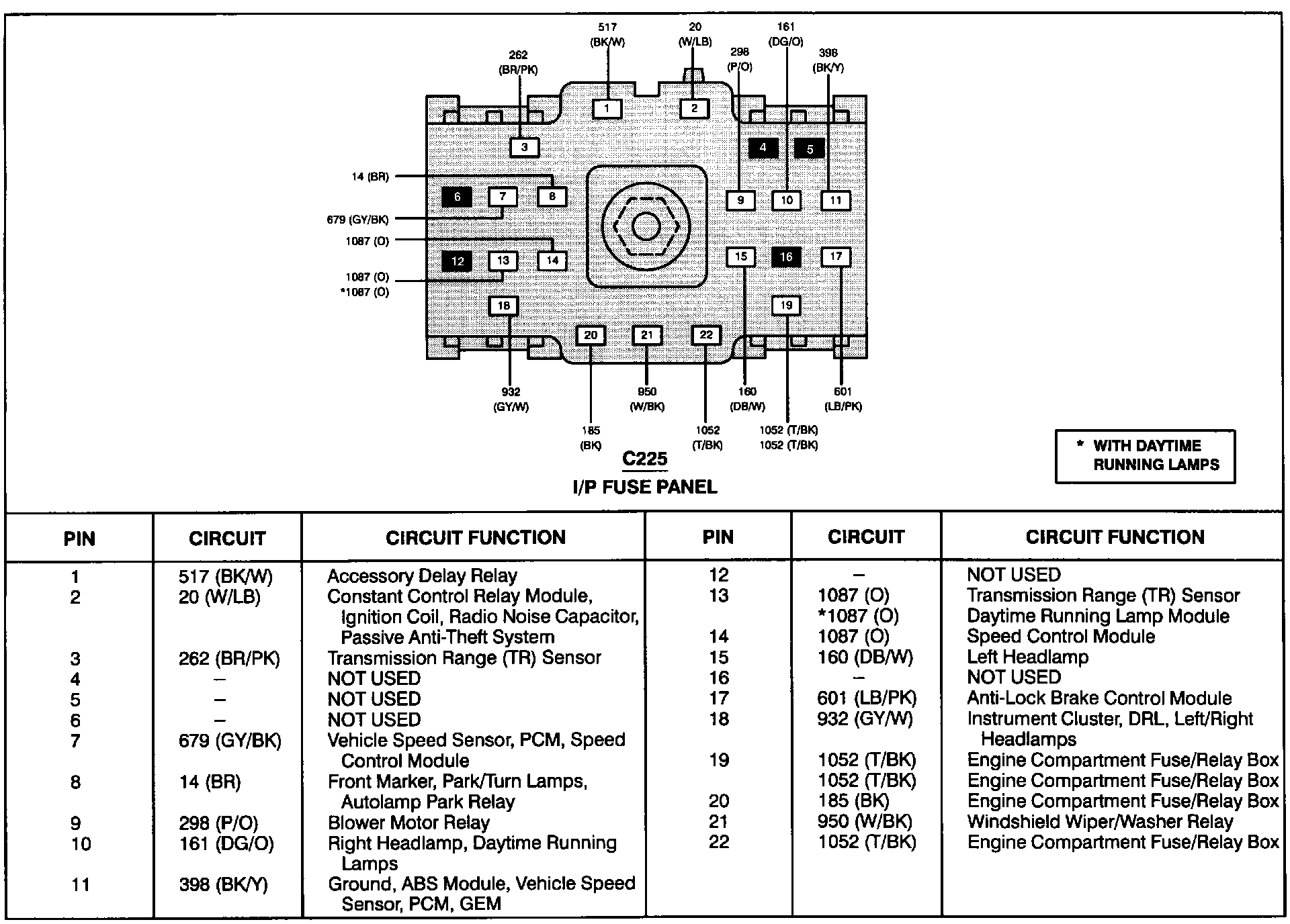

Instrument Panel Fuse Panel (C225):

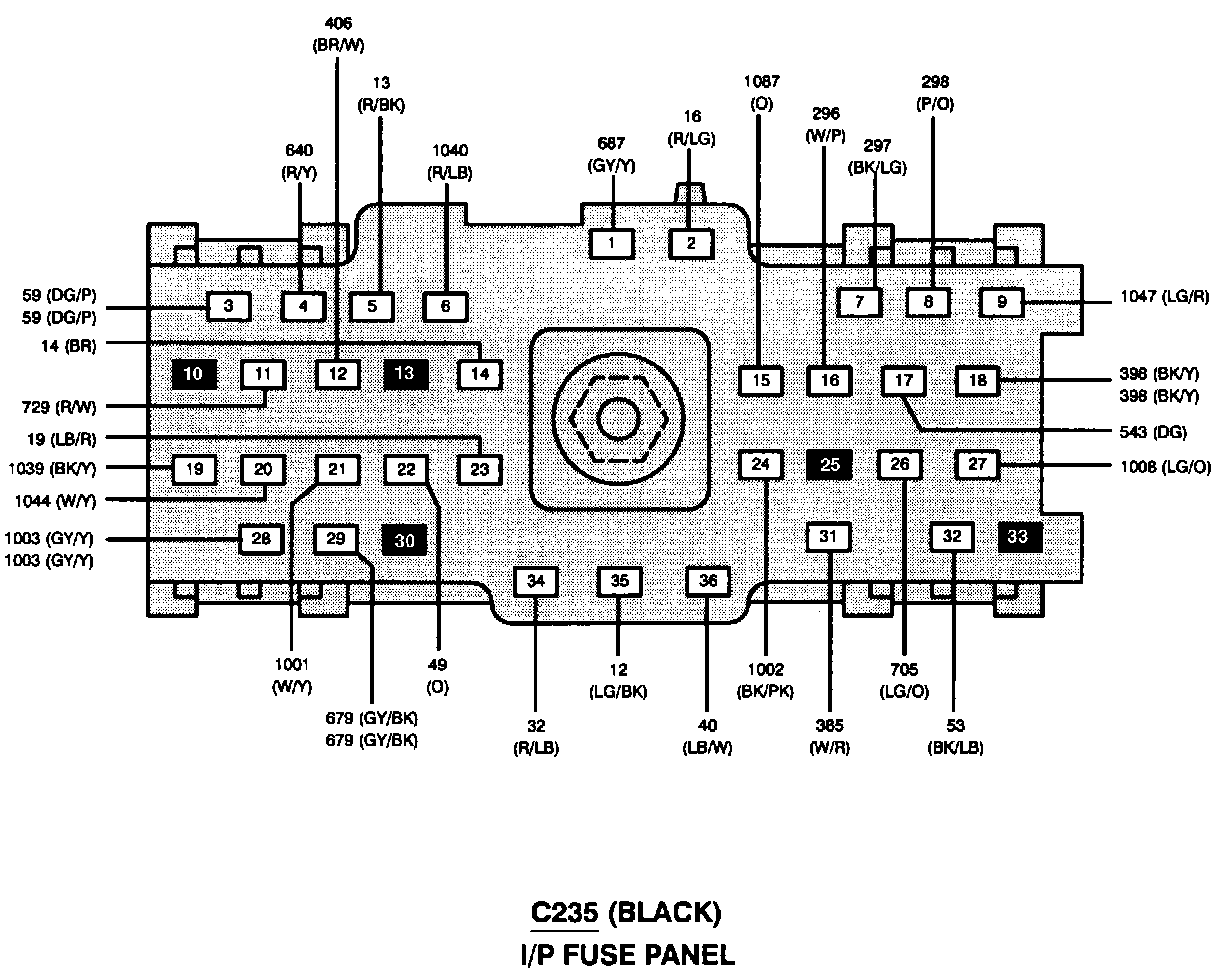

Instrument Panel Fuse Panel (Part 1 Of 2) (C235):

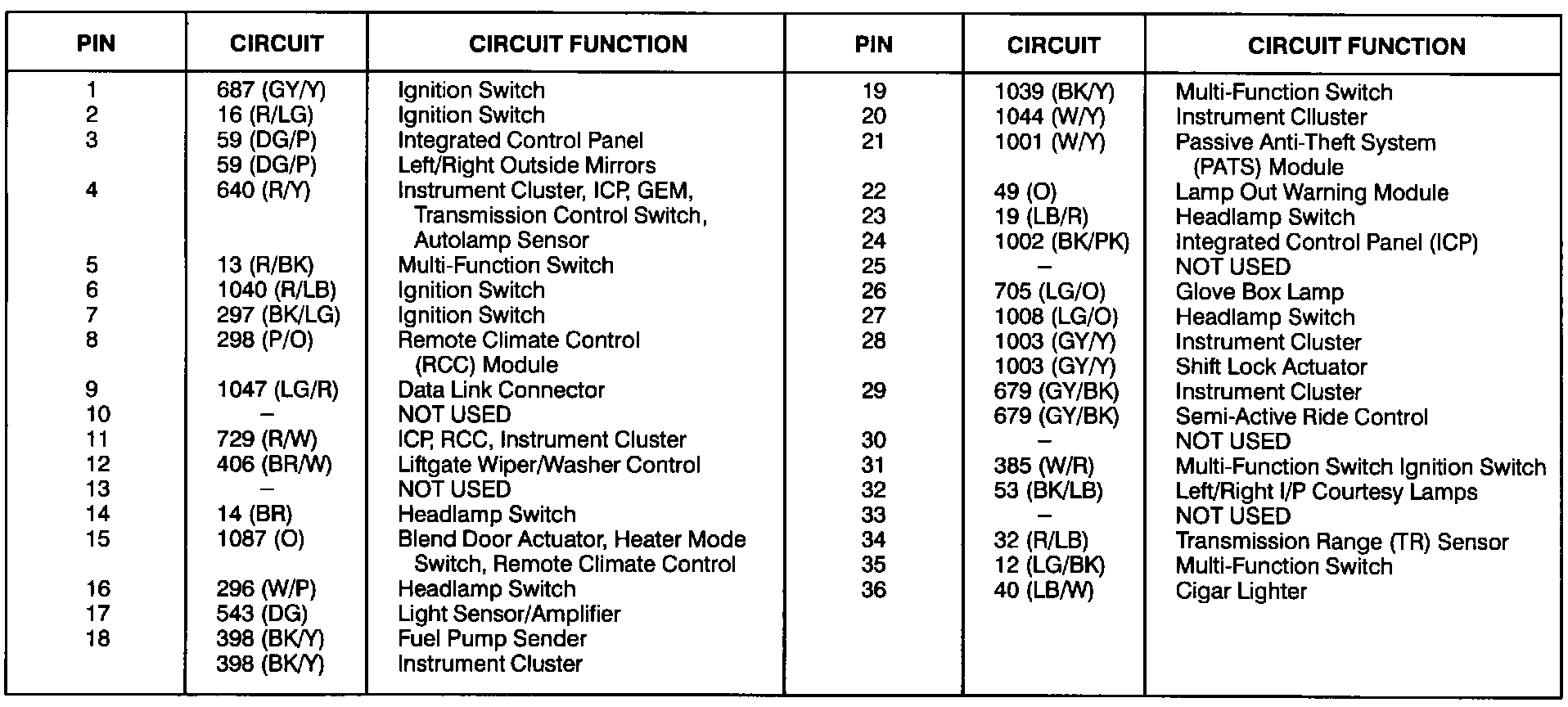

Instrument Panel Fuse Panel (Part 2 Of 2):

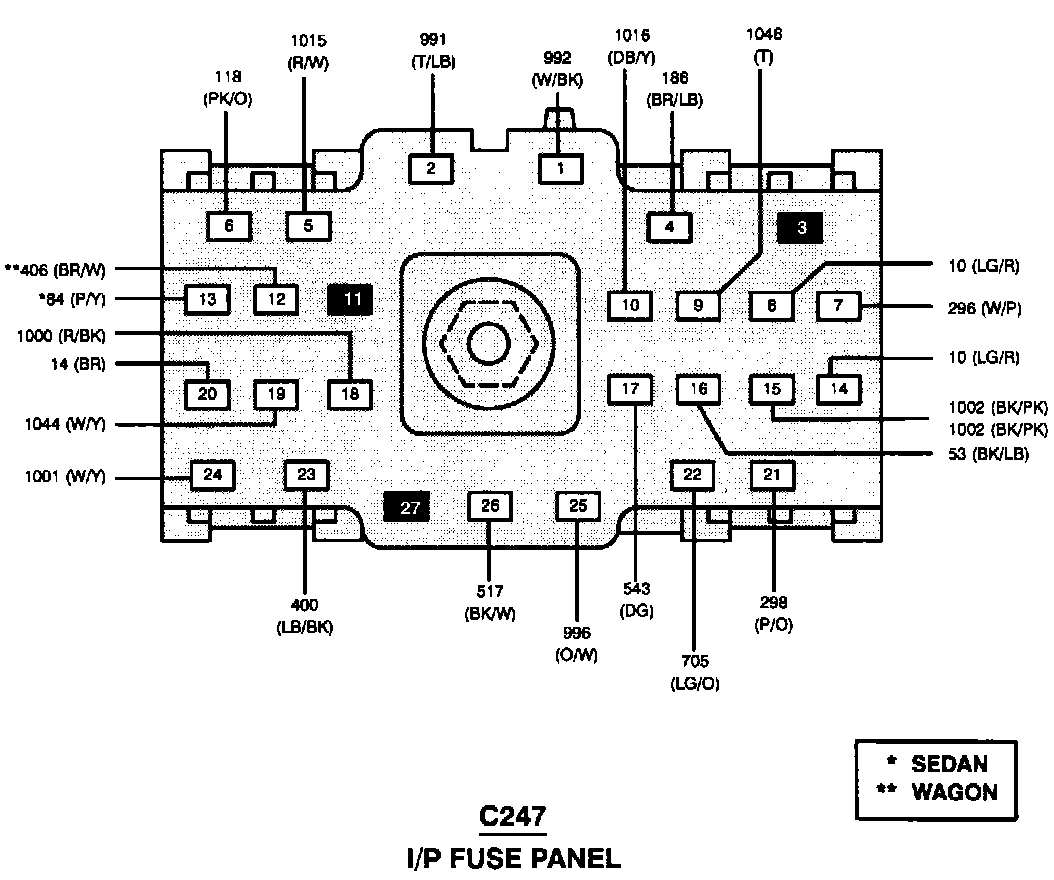

Instrument Panel Fuse Panel (Part 1 Of 2) (C247):
Instrument Panel Fuse Panel (Part 2 Of 2):
