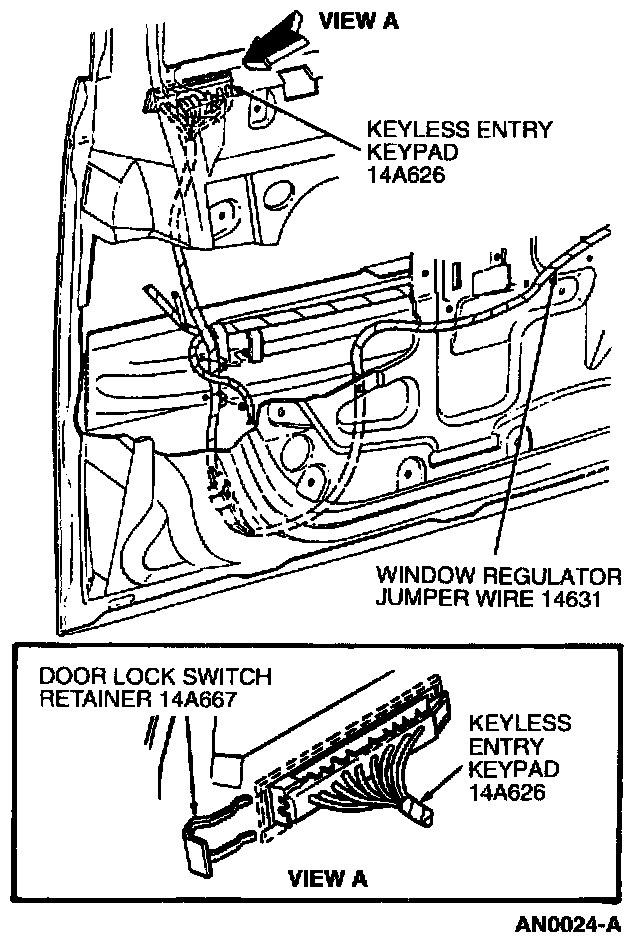

Removal

1. Remove front door trim panel.

2. Disconnect keyless entry keypad wiring harness electrical connector.

3. Remove door lock switch retainer from keyless entry keypad.

4. Remove wiring harness locators from retaining holes.

5. Remove keyless entry keypad and wiring harness.
