Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

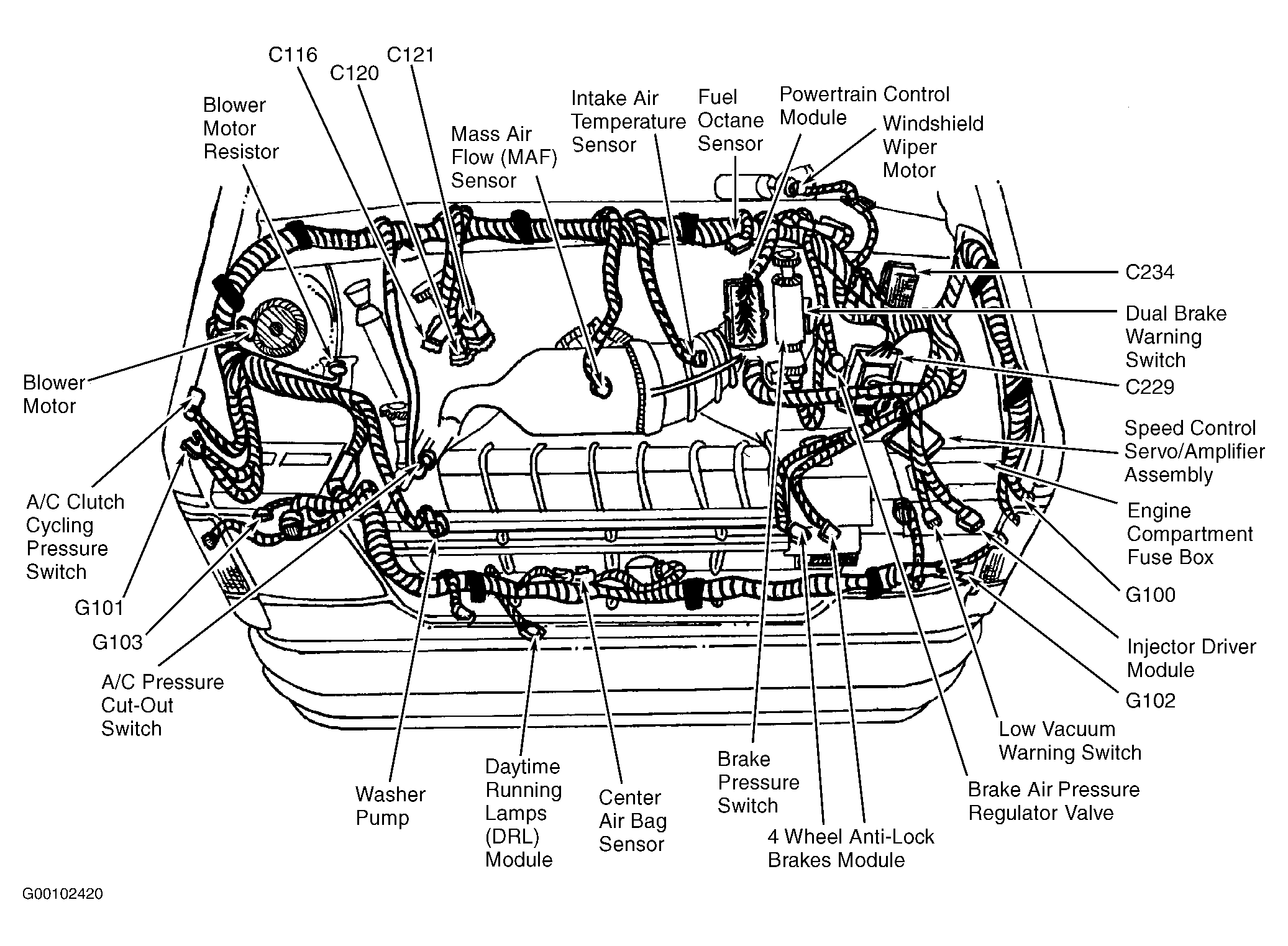

Engine Compartment Fuse Box In left front of engine compartment. See Figure .
Fuse Link A At starter motor relay
Fuse Link B At starter motor relay
Fuse Link C At starter motor relay
Fuse Link D At starter motor relay
Fuse Link E At starter motor relay

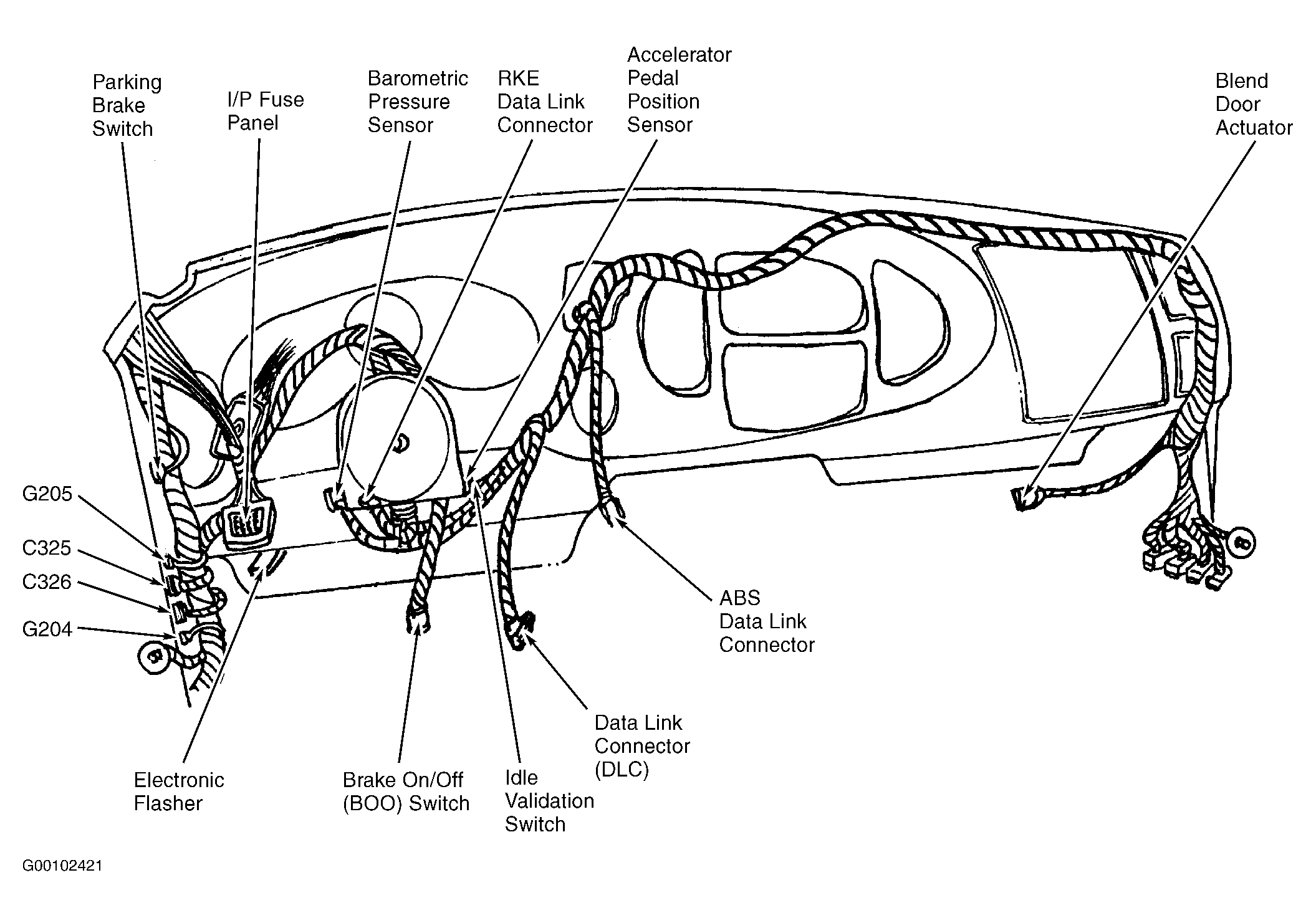

I/P Fuse Panel Behind left side of dash. See Figure .
