Headlamp Control Module

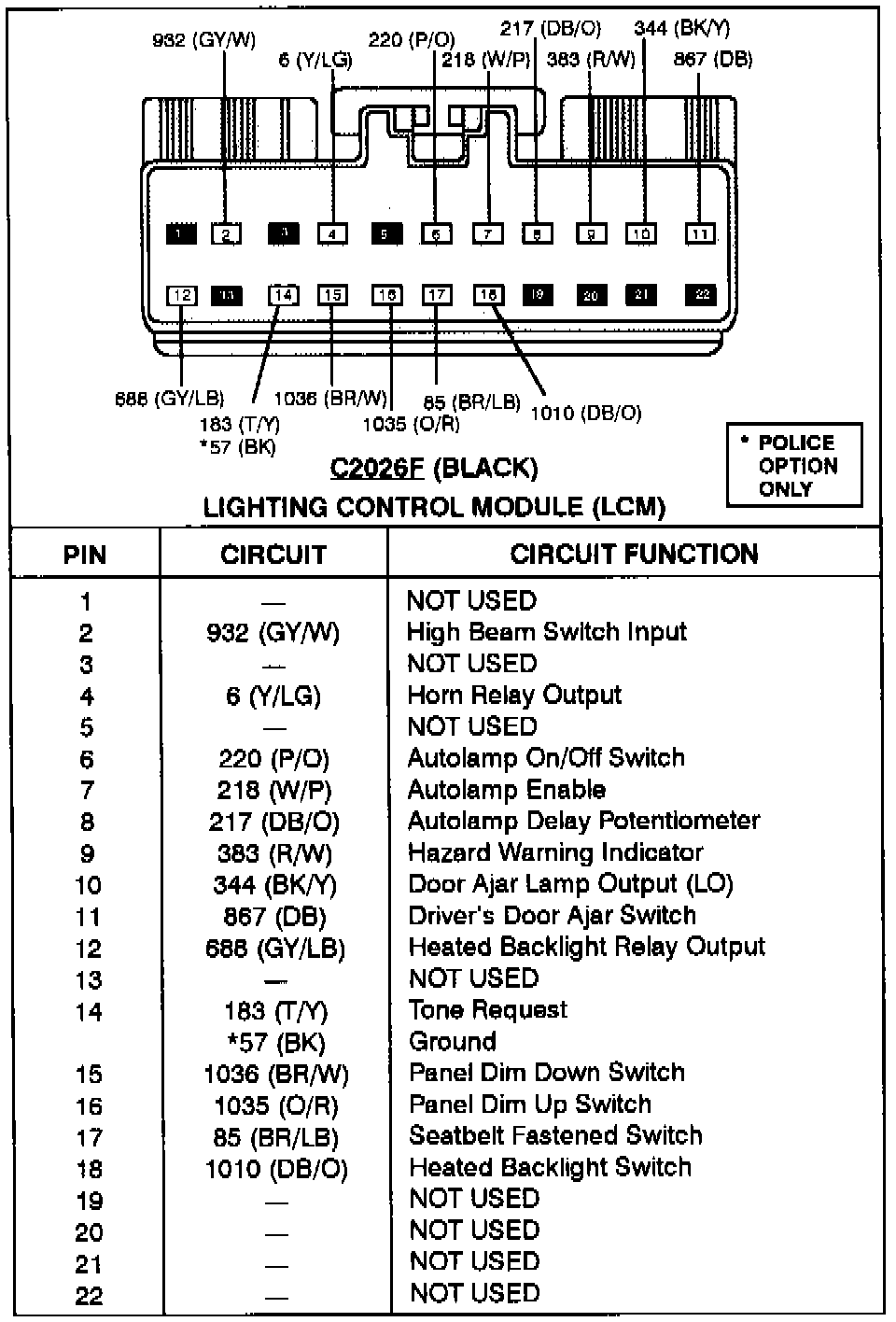

Lighting Control Module - C2026:

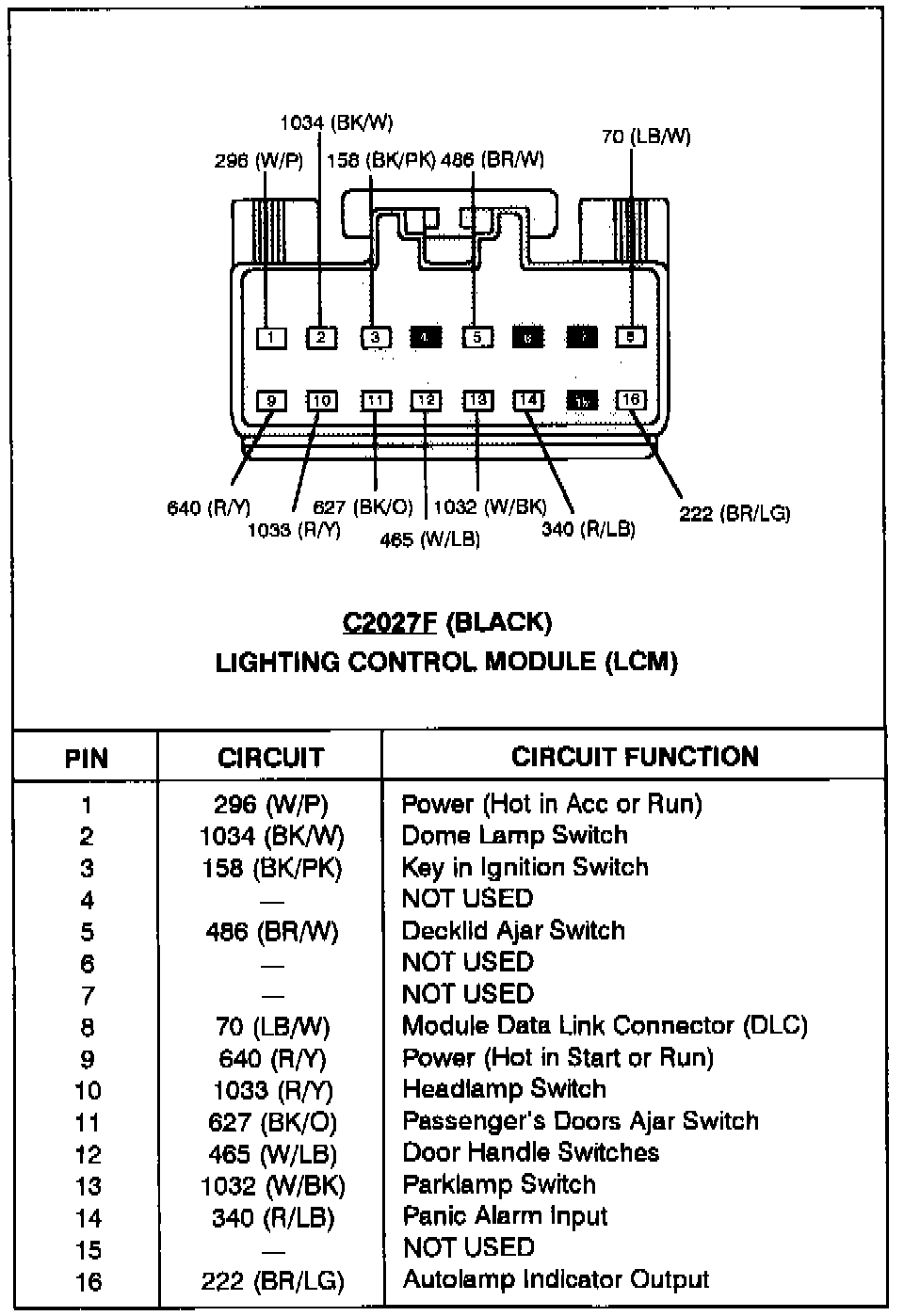

Lighting Control Module - C2027:




Lighting Control Module - C2029:




Lighting Control Module - C2028:
