Firing Order & Timing Marks

Fig 1: Identifying Firing Order & Timing Marks (3.8L)
G00217825Courtesy of FORD MOTOR CO.

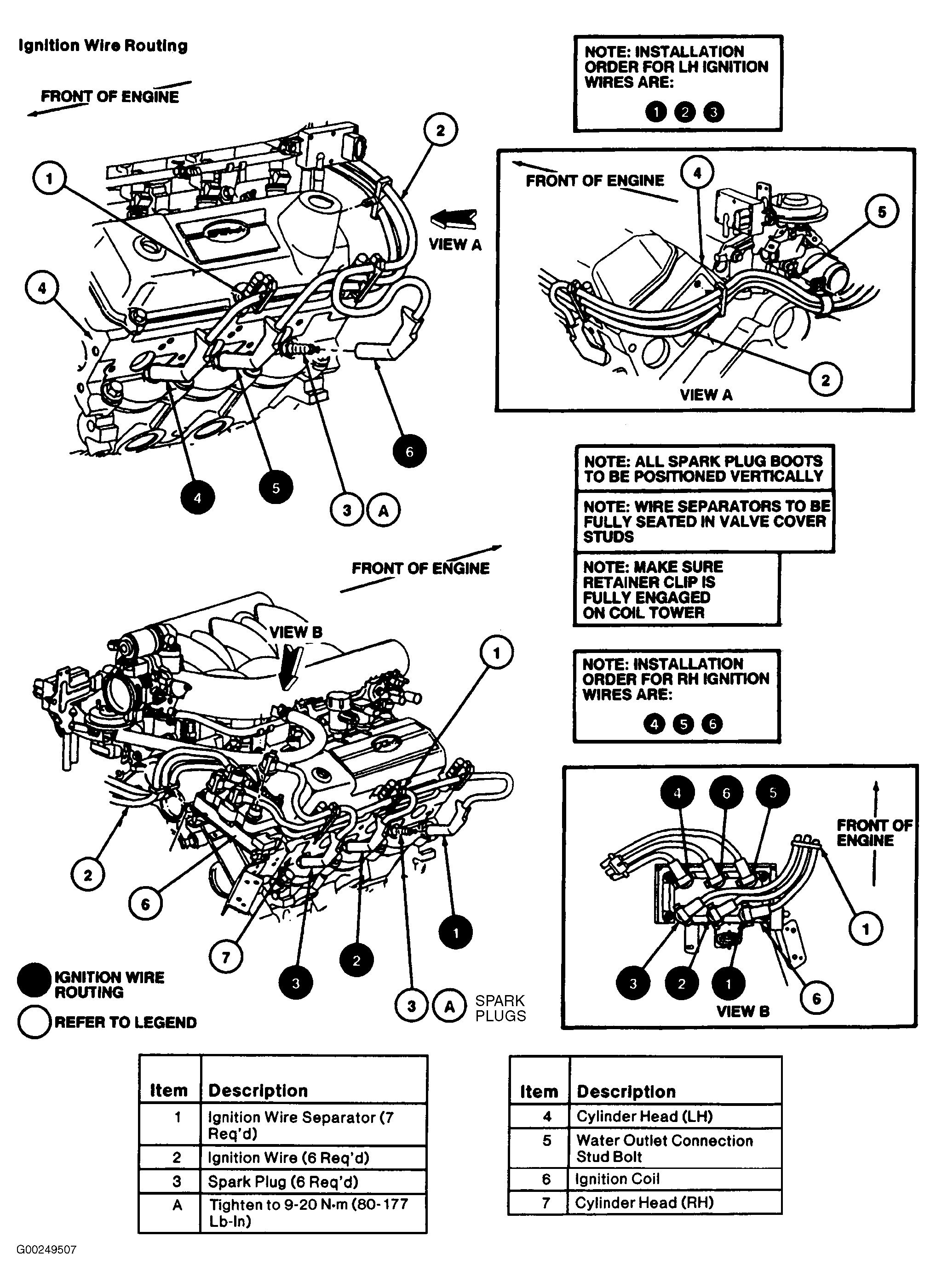

Fig 2: Identifying Spark Plug Wire Routing (3.8L)
G00249507Courtesy of FORD MOTOR CO.
