Electronic Brake Control Module

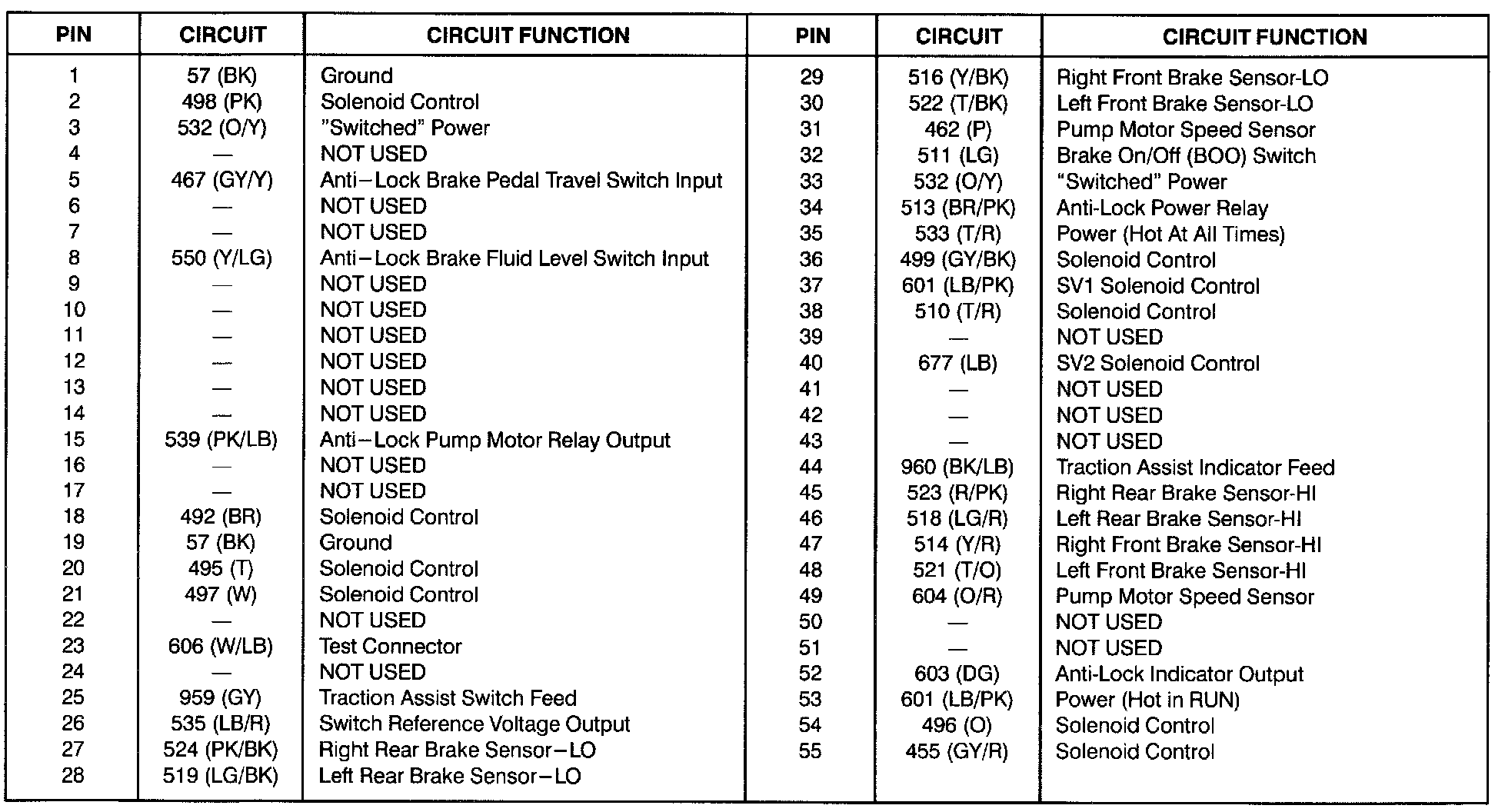

Anti-Lock Brake Control Module (Part 1 Of 2):

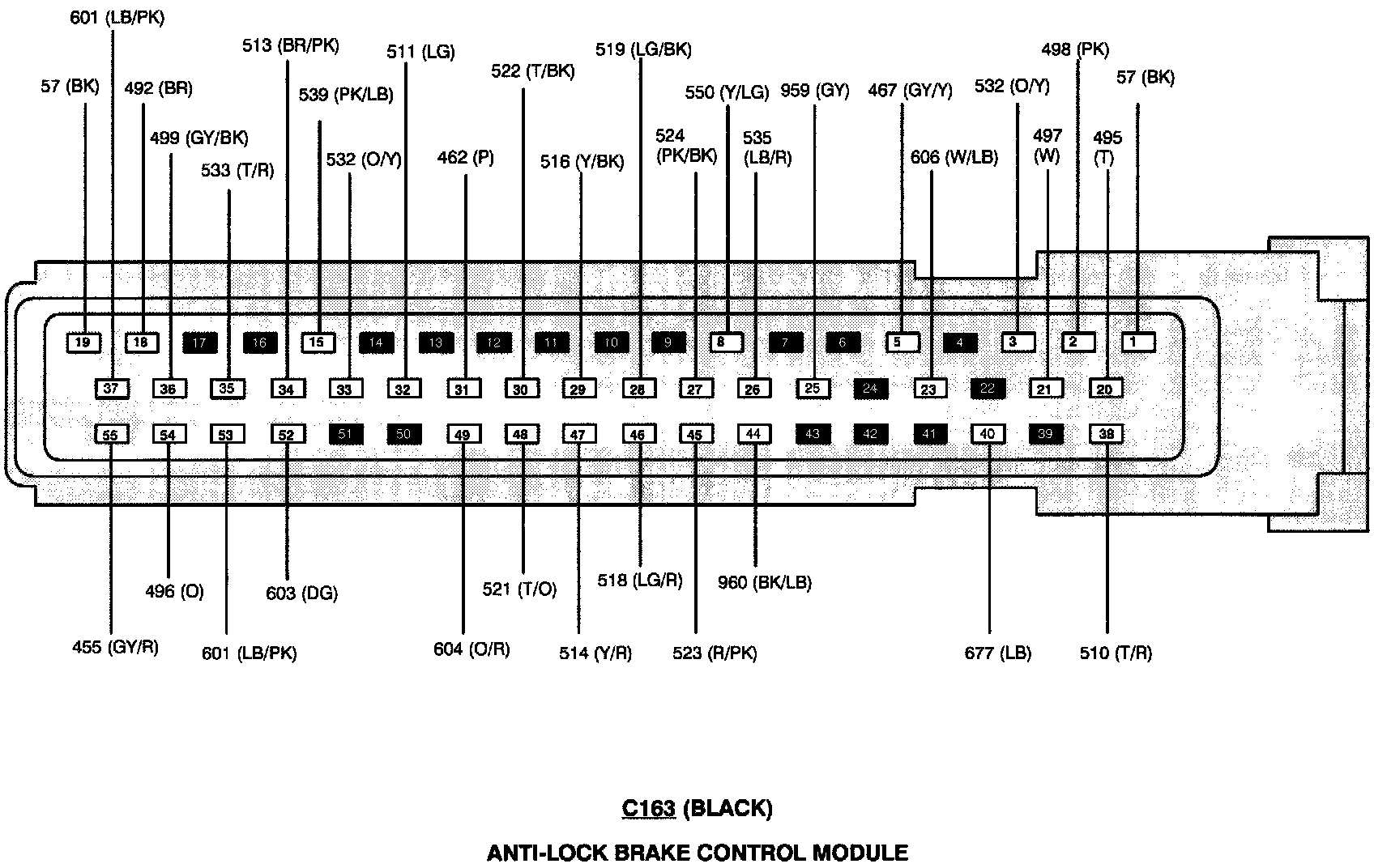

Anti-Lock Brake Control Module (Part 2 Of 2):
