EGR Tube: Service and Repair

REMOVAL and INSTALLATION

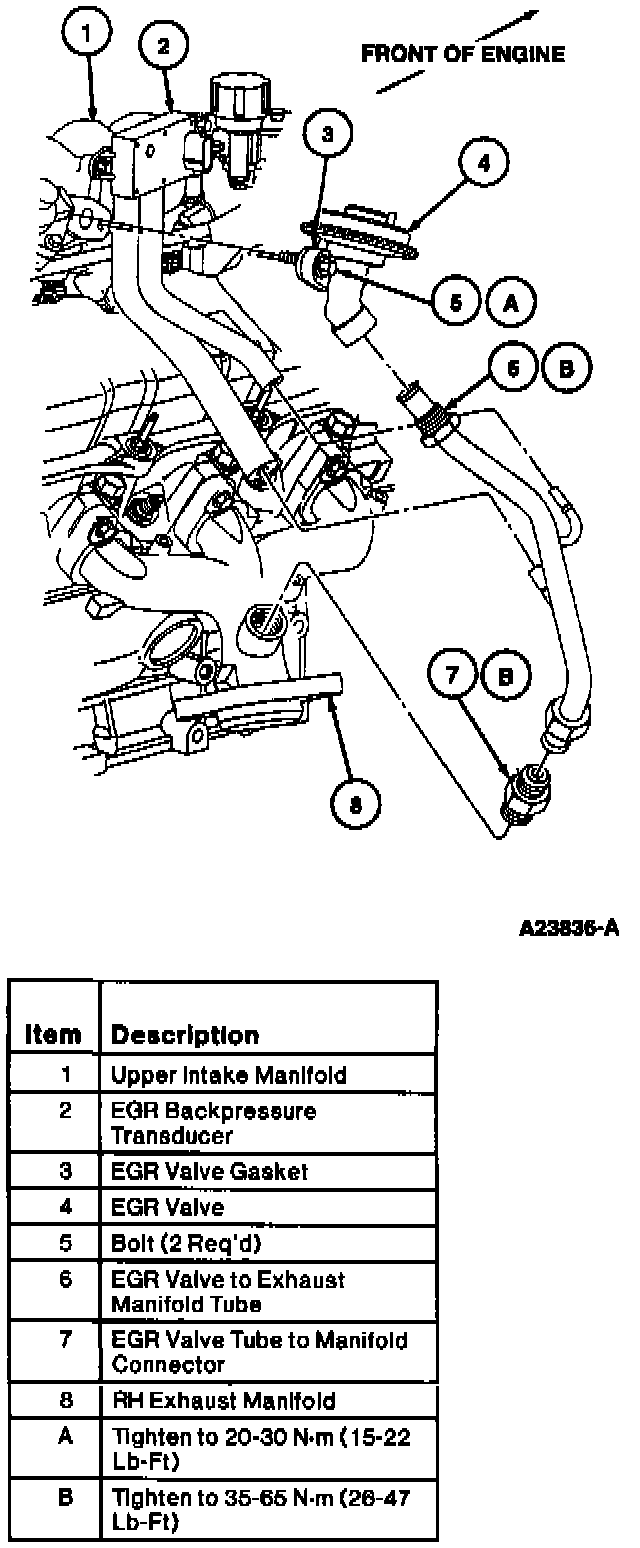

1. Disconnect EGR backpressure transducer hoses from EGR valve to exhaust manifold tube.
2. Disconnect EGR valve to exhaust manifold tube at EGR valve and EGR valve tube to manifold connector.
3. Remove EGR valve tube to manifold connector from RH exhaust manifold.
4. To install, reverse Removal procedures.
5. Tighten EGR valve to exhaust manifold tube nuts to 35-65 Nm (26-48 lb ft).
6. Tighten EGR valve tube to manifold connector to exhaust manifold to 35-65 Nm (26-48 lb ft).
