Home >> Ford >> 1996 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> System Diagram >> Passive Anti-Theft System Connectors >> Passive Anti-Theft System Module Connector

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

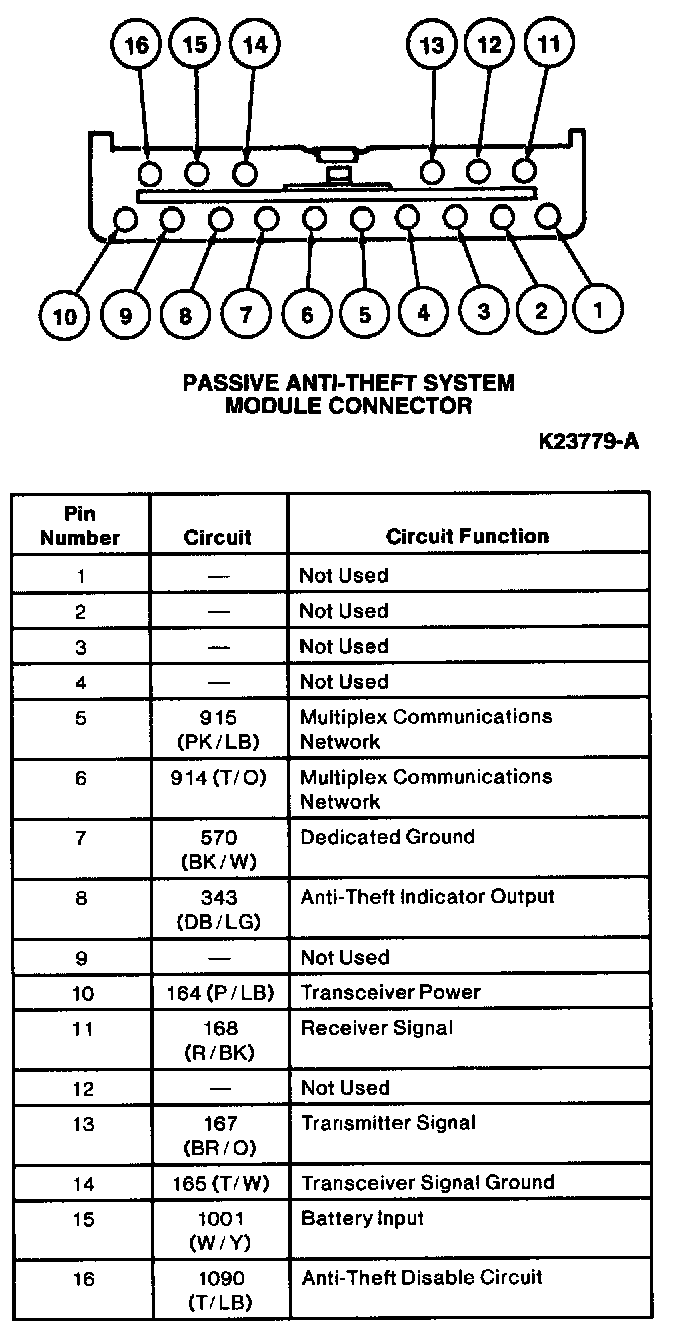

Passive Anti-Theft System Module Connector
