Control Assembly: Testing and Inspection

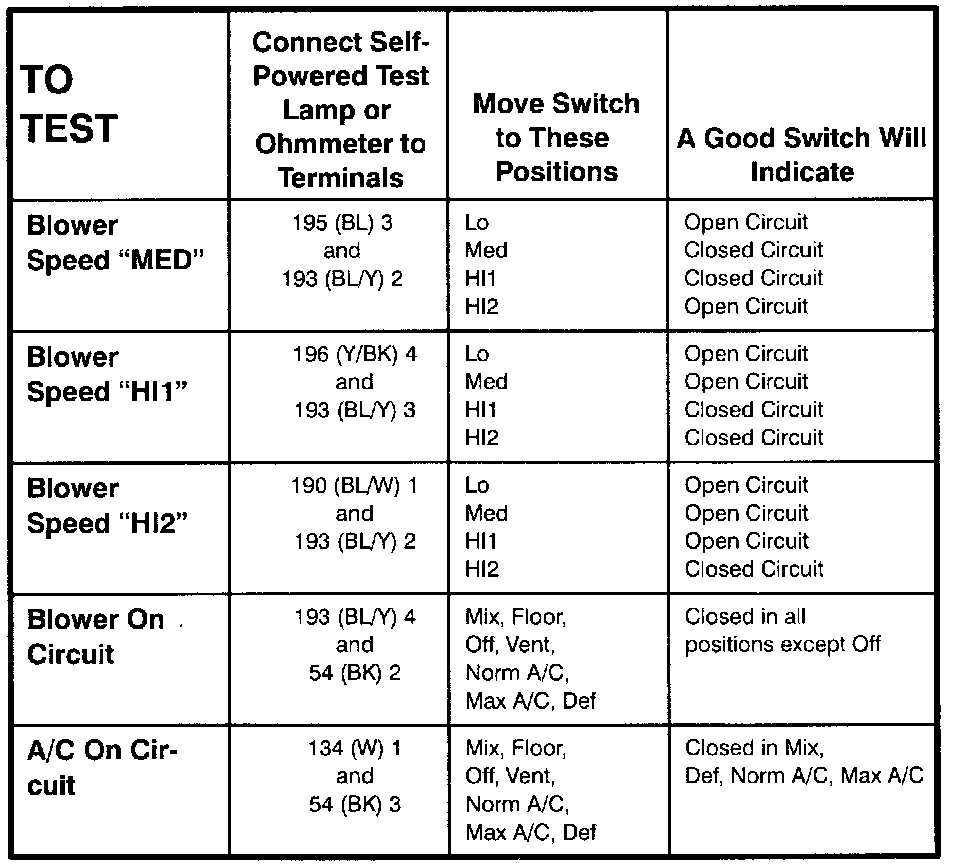

A/C-Heater Assembly - Component Testing Procedure:




A/C-Heater Assembly - Terminal Locations:




A/C-Heater Assembly - Schematics:
