Power Door Lock Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Power Door Lock Control Module

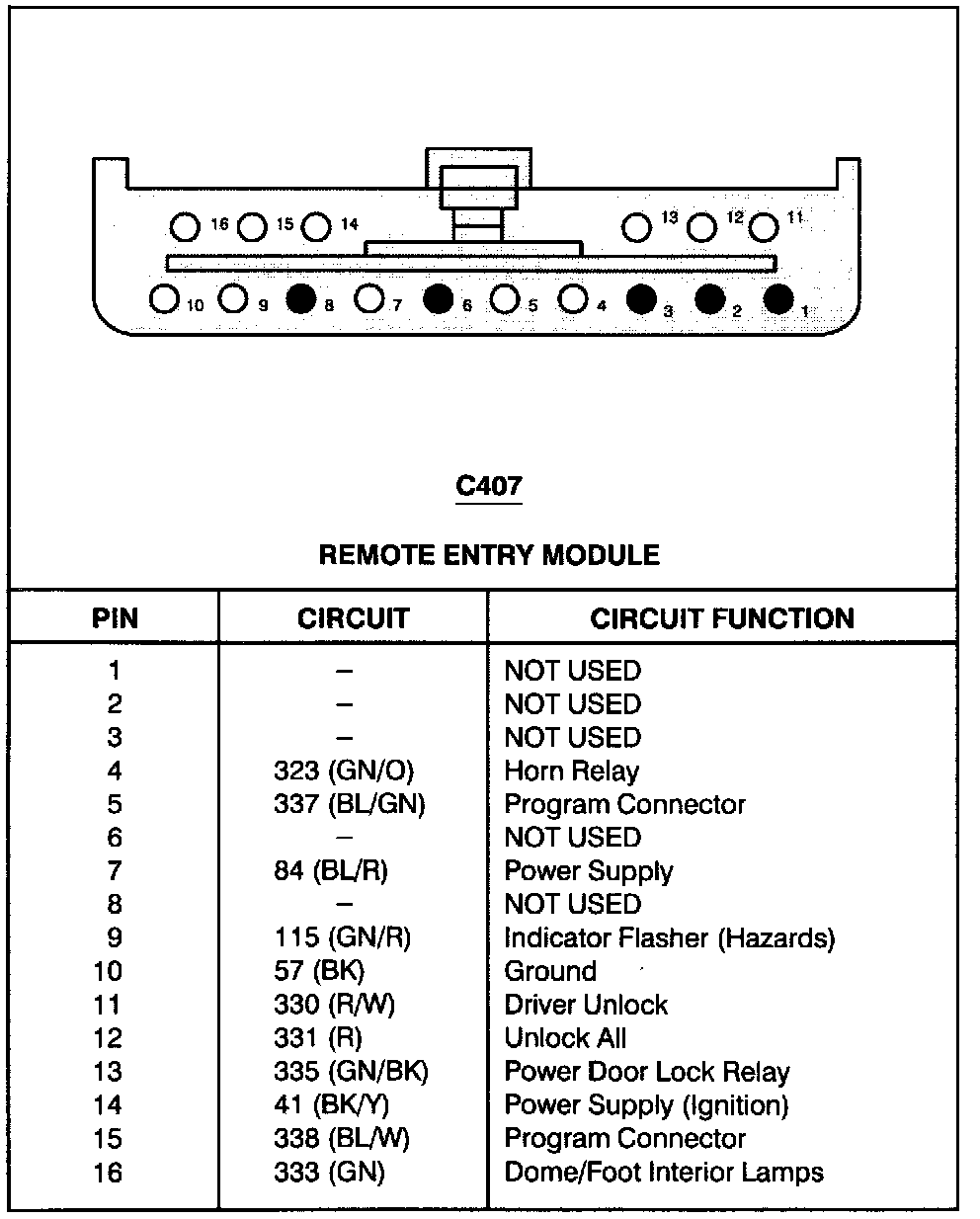

Remote Entry Module:
