Fuse Block

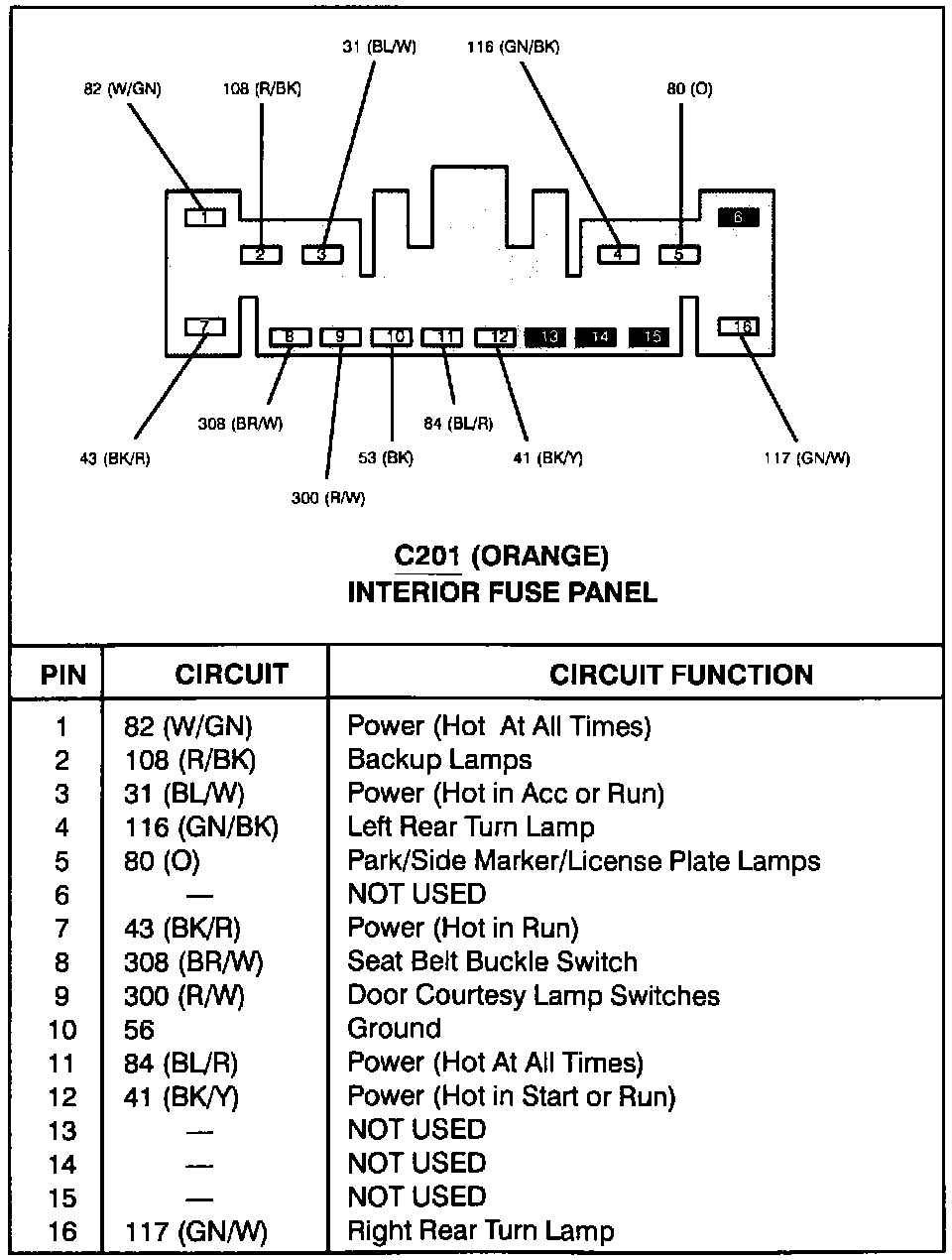

Interior Fuse Panel (C201):

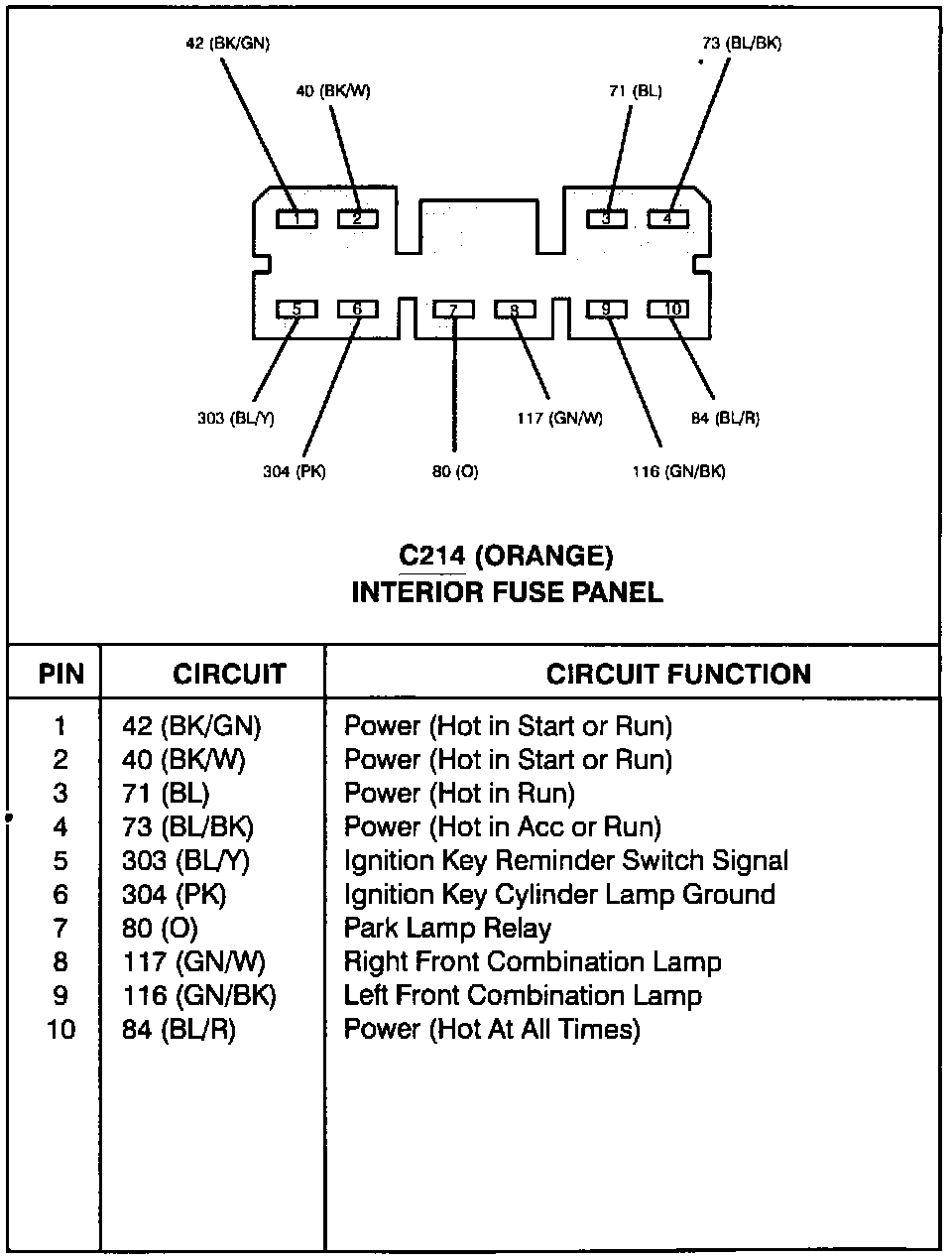

Interior Fuse Panel (C214):

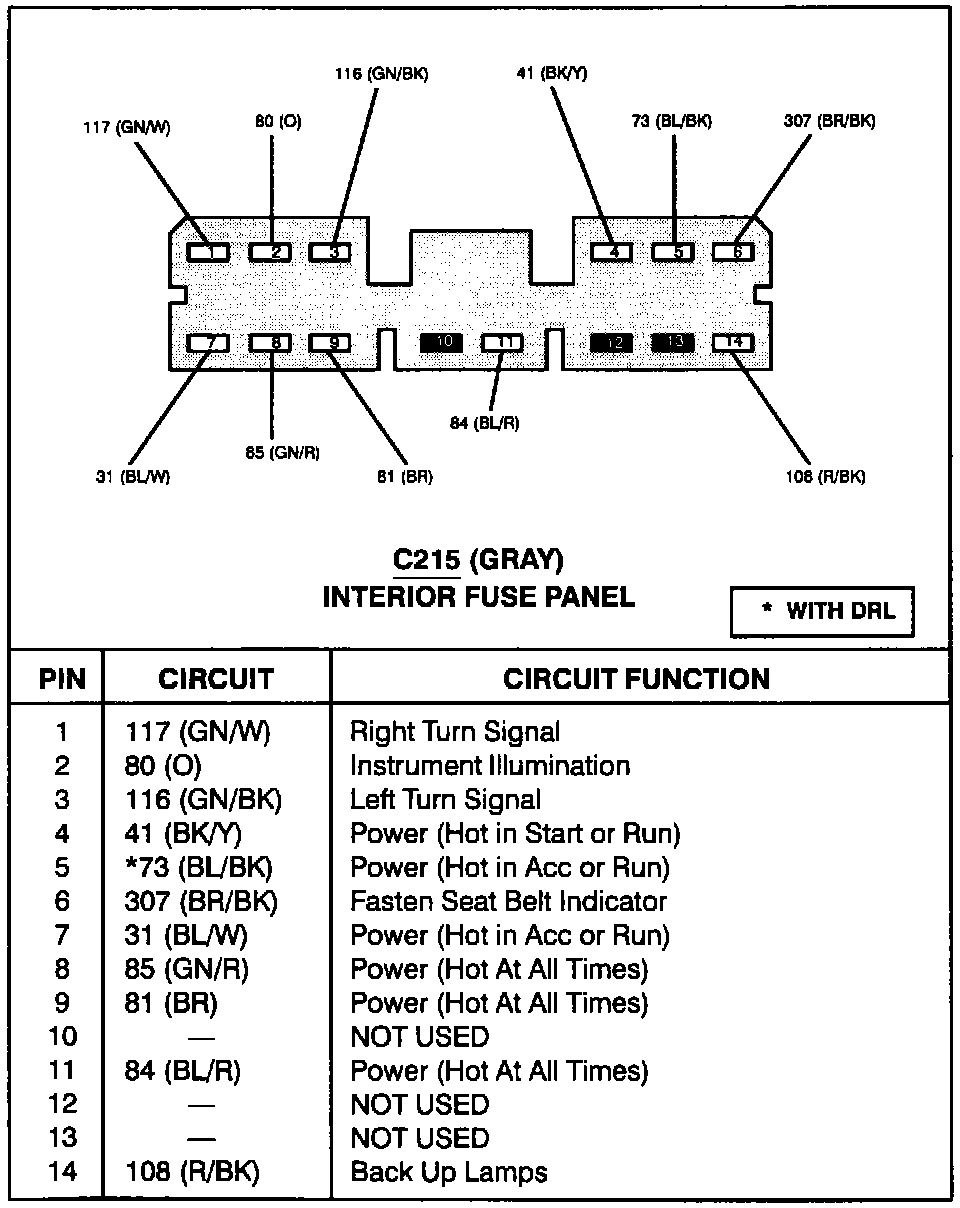

Interior Fuse Panel (C215):

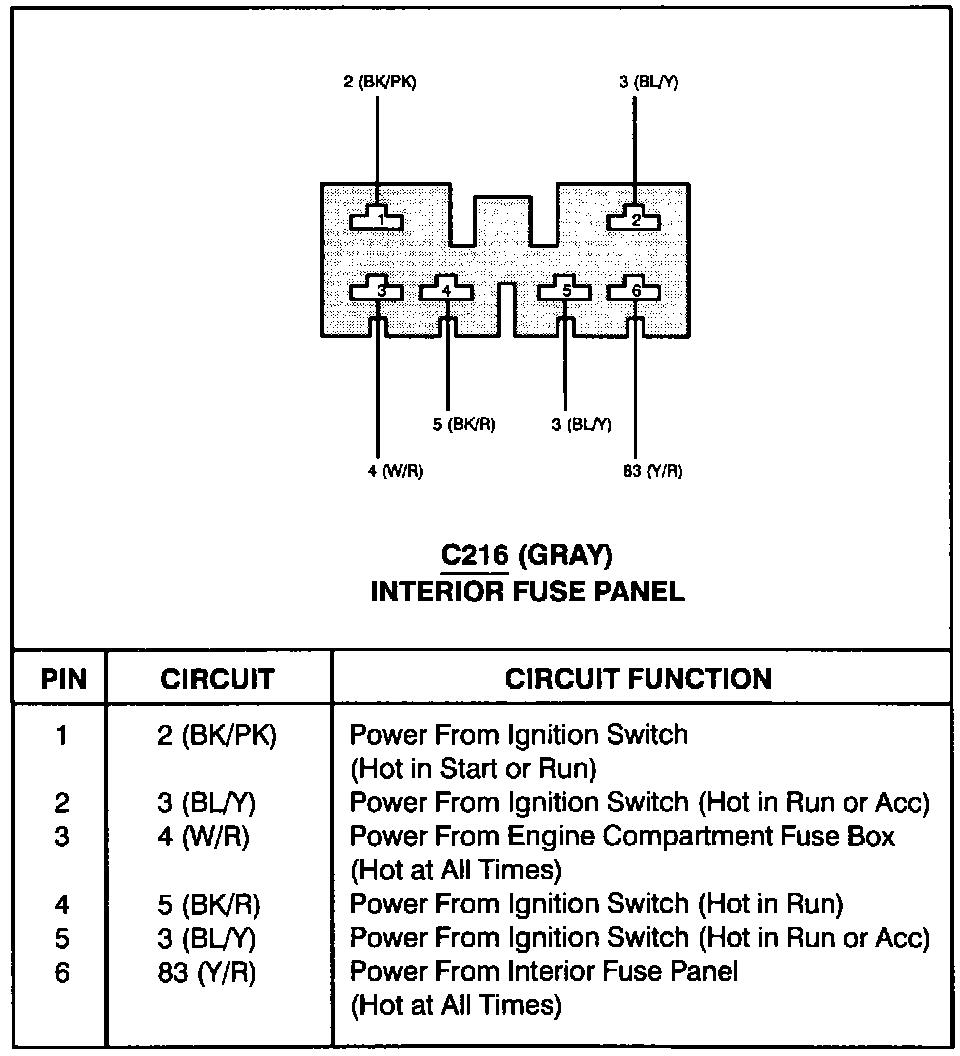

Interior Fuse Panel (C216):
