Ford 8.8 Inch

Ford 8.8 Inch, Ring Gear Runout (LTD/Crown Vic/Grand Marquis/Colony Park):

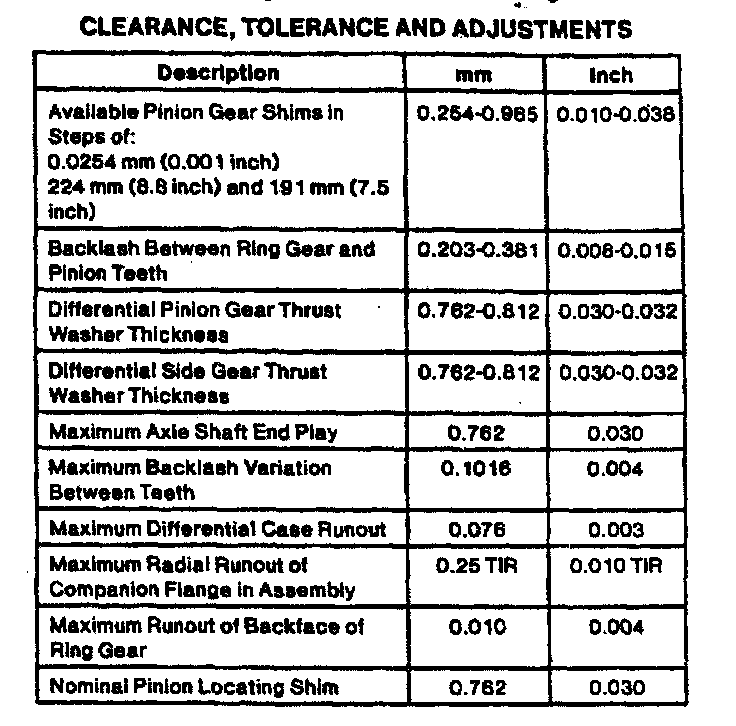

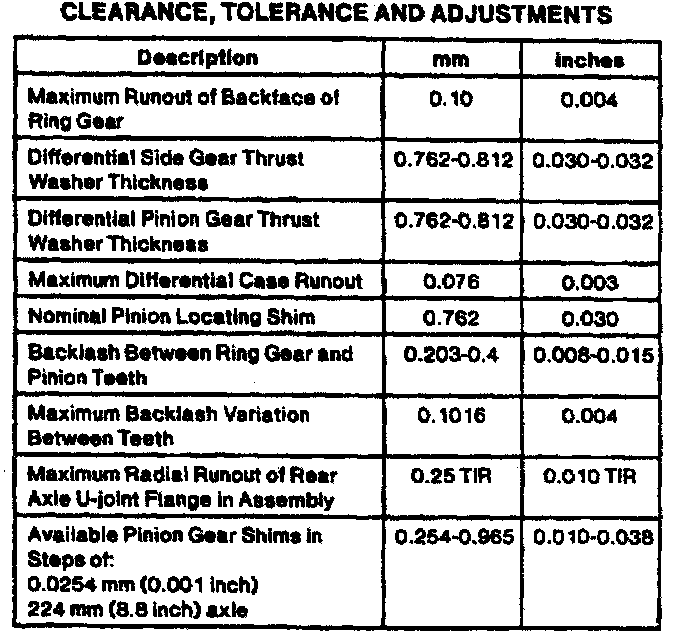

Ford 8.8 Inch, Clearances/Tolerances:

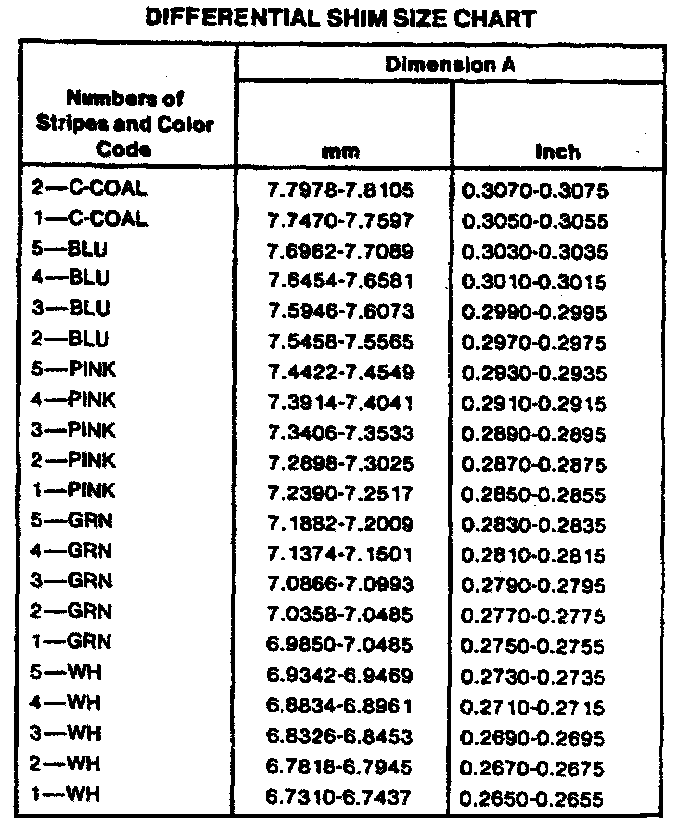

Ford 8.8 Inch, Differential Shim Chart:

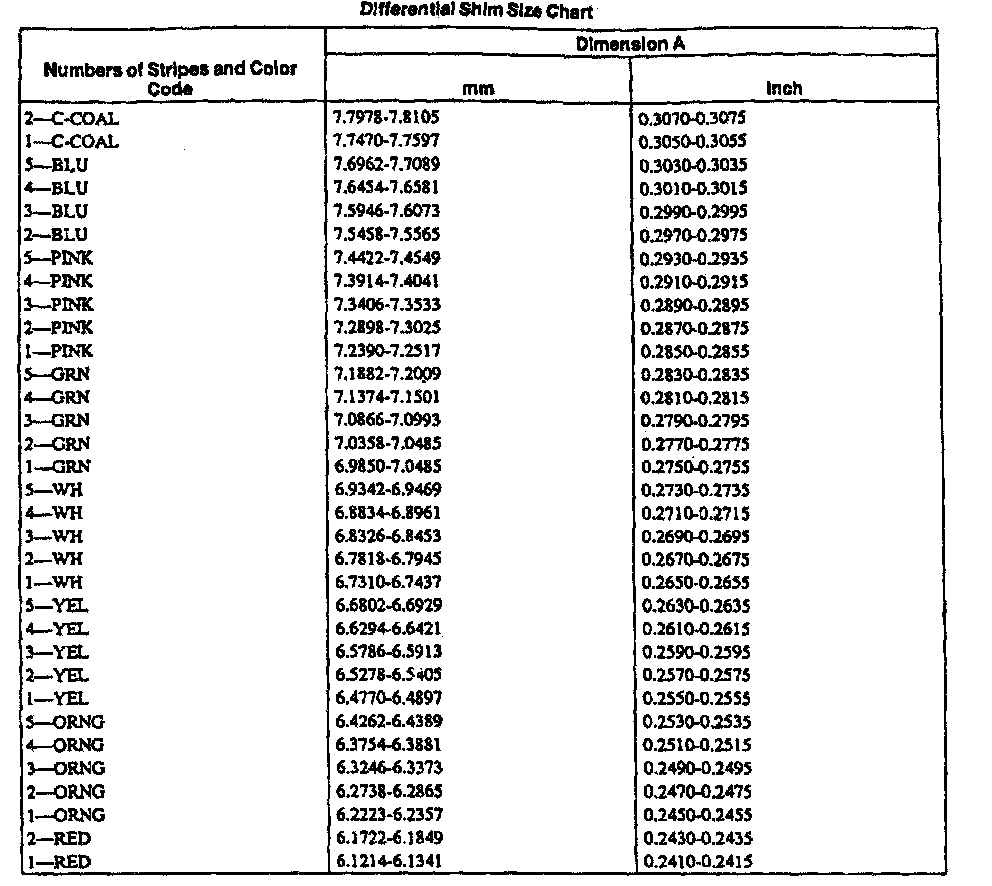

Ford 8.8 Inch, Shim Size Chart:

Ford 8.8 Inch, Ring Gear Backlash:

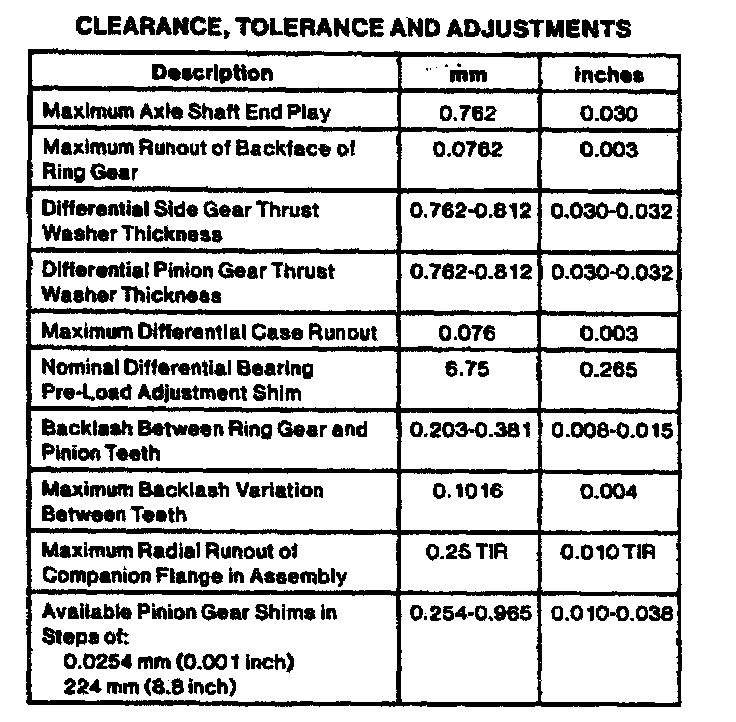

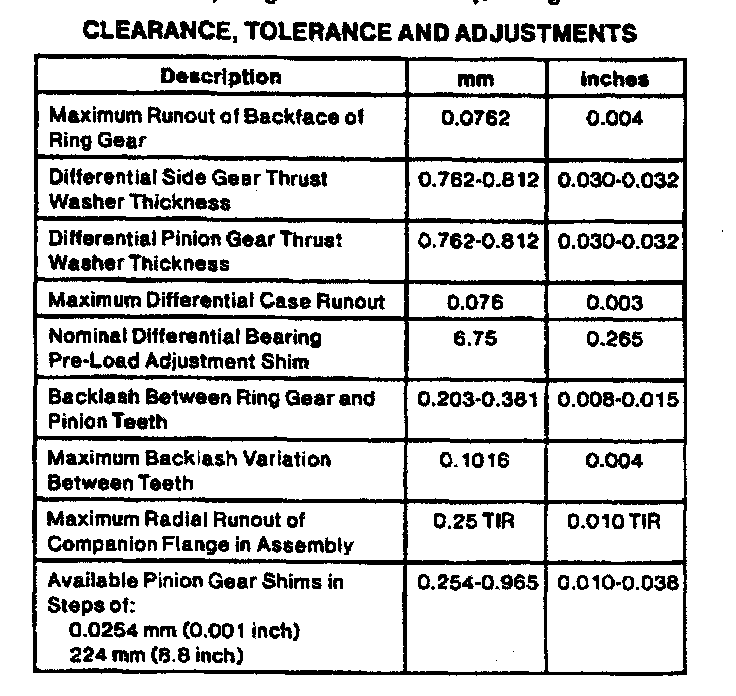

Ford 8.8 Inch, Clearances/Tolerances (Mark VII/III):

Ford 8.8 Inch, Clearances/Tolerances Cont.:

Ford 8.8 Inch, Backlash Thickness:

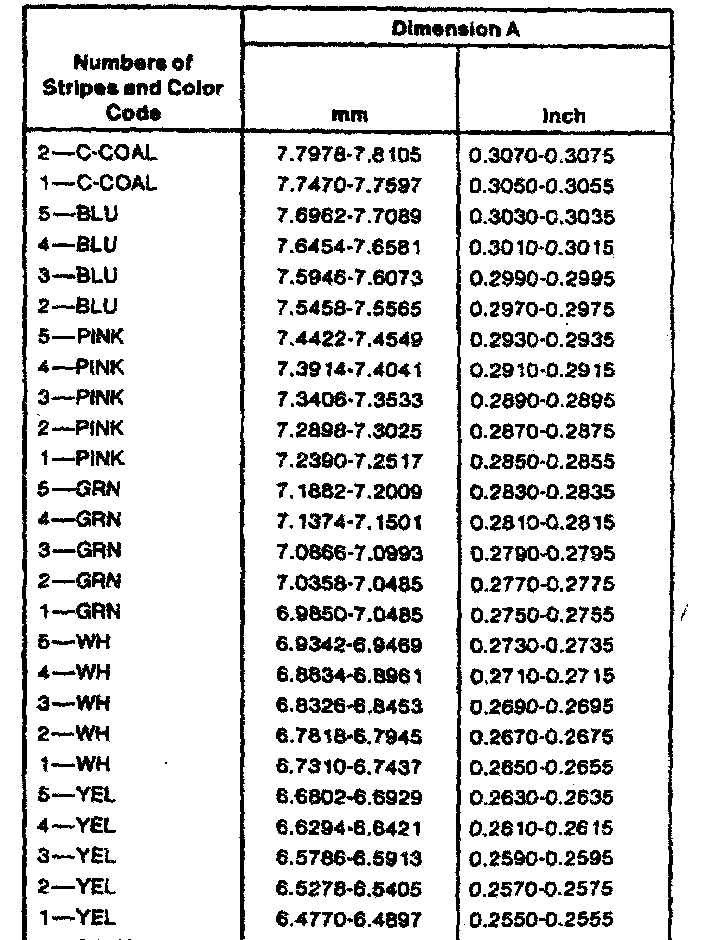

Ford 8.8 Inch, Differential Shim Chart:

Ford 8.8 Inch, Ring Gear Backlash (Mustang):

Ford 8.8 Inch, Ring Gear Runout:

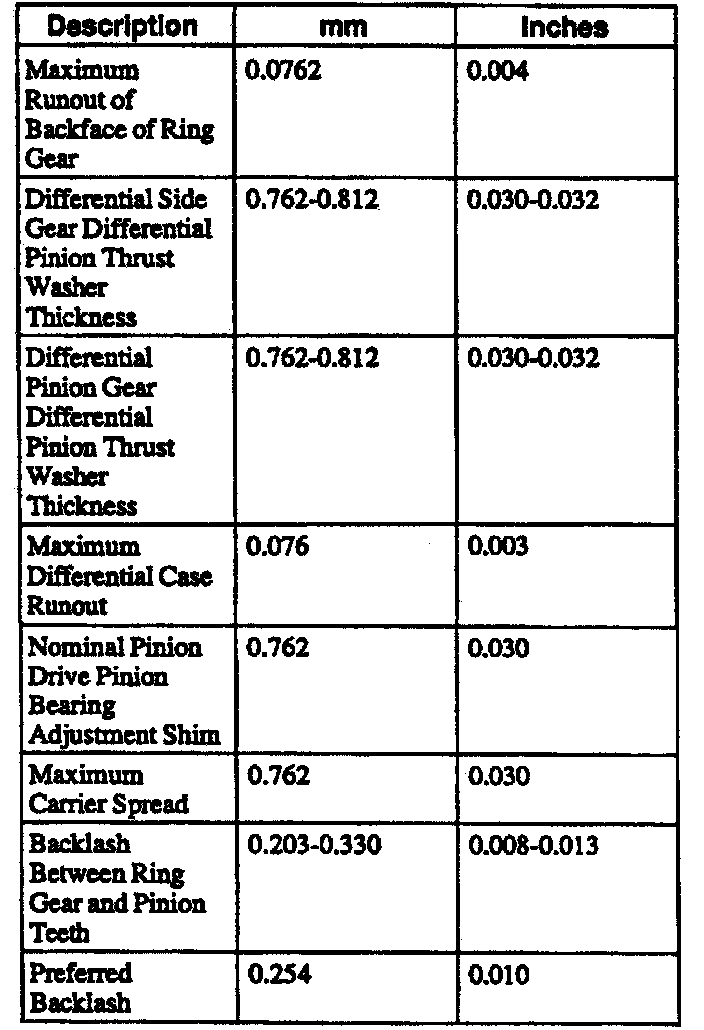

Ford 8.8 Inch, Clearances/Tolerances:

Ford 8.8 Inch, Carrier Bearing Backlash/Thinkness:

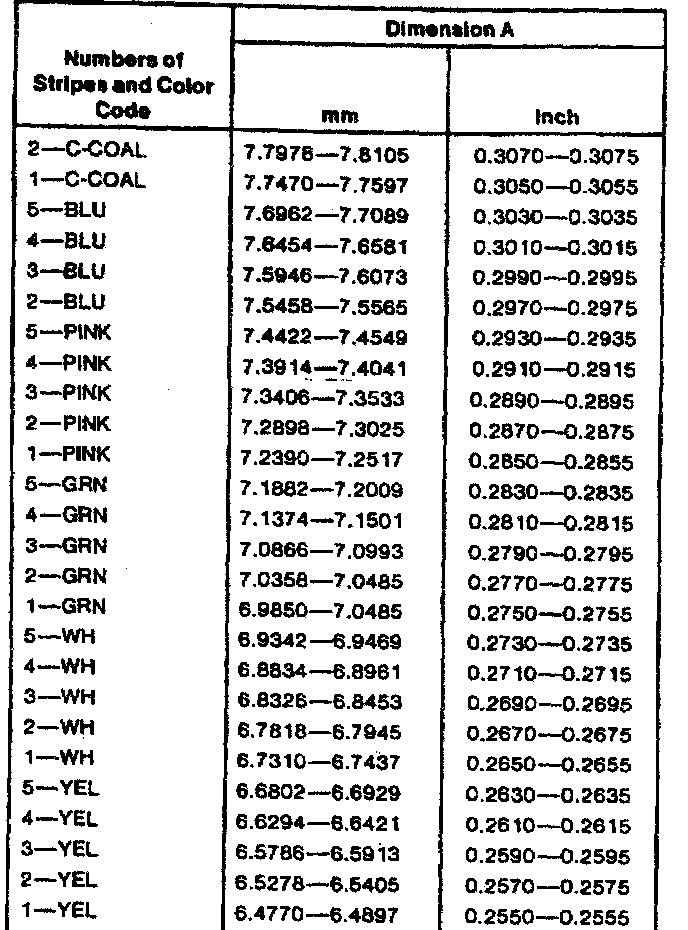

Ford 8.8 Inch, Shim Size Chart:

Ford 8.8 Inch, Clearances/Tolerances (T-bird/Cougar):

Ford 8.8 Inch, Carrier Backlash/Thickness:

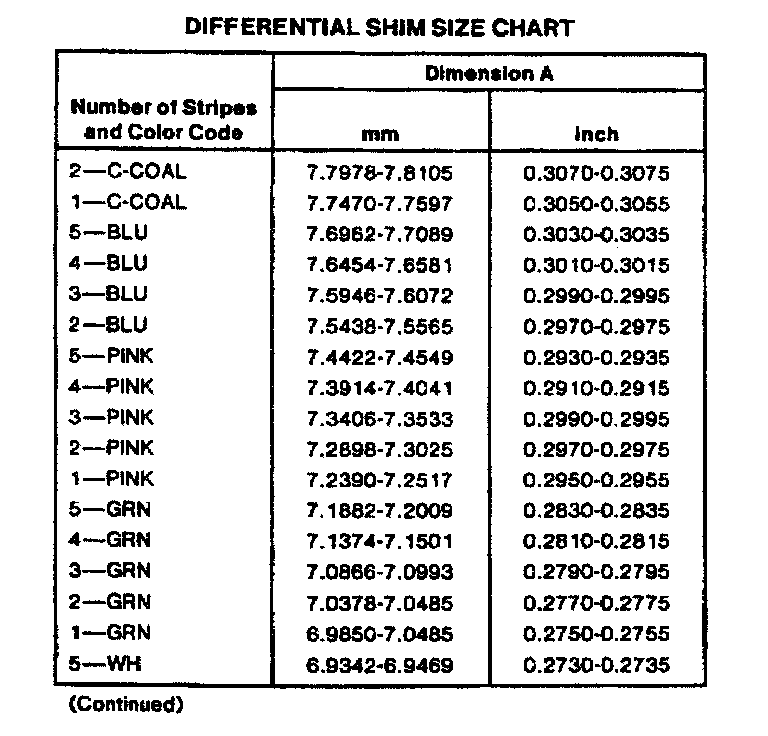

Ford 8.8 Inch, Shim Size Chart:

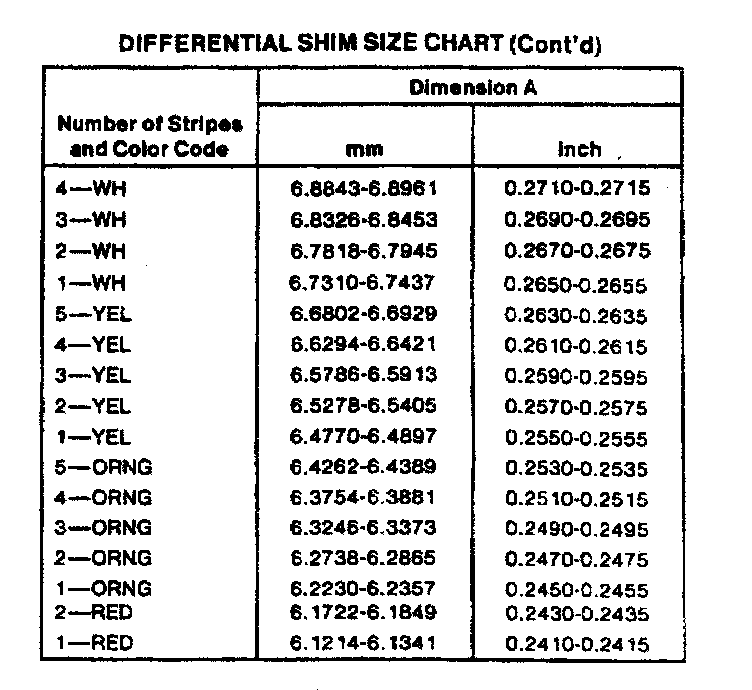

Ford 8.8 Inch, Shim Size Chart Cont.:

Ford 8.8 Inch, Ring Gear Backlash/Runout (Town Car):

Ford 8.8 Inch, Clearances/Tolerances:

Ford 8.8 Inch, Carrier Backlash/Shim Thickness:

Ford 8.8 Inch, Shim Size Chart:

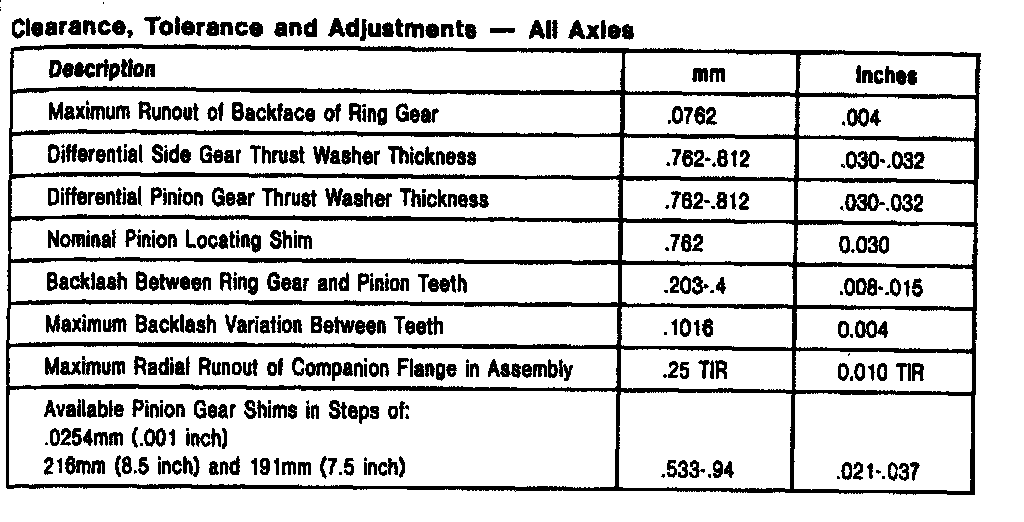

Ford 8.8 Inch, Clearances/Tolerances (All Other Vehicles):

Ford 8.8 Inch, Carrier Backlash/Shim Thickness:
