Fuse 1

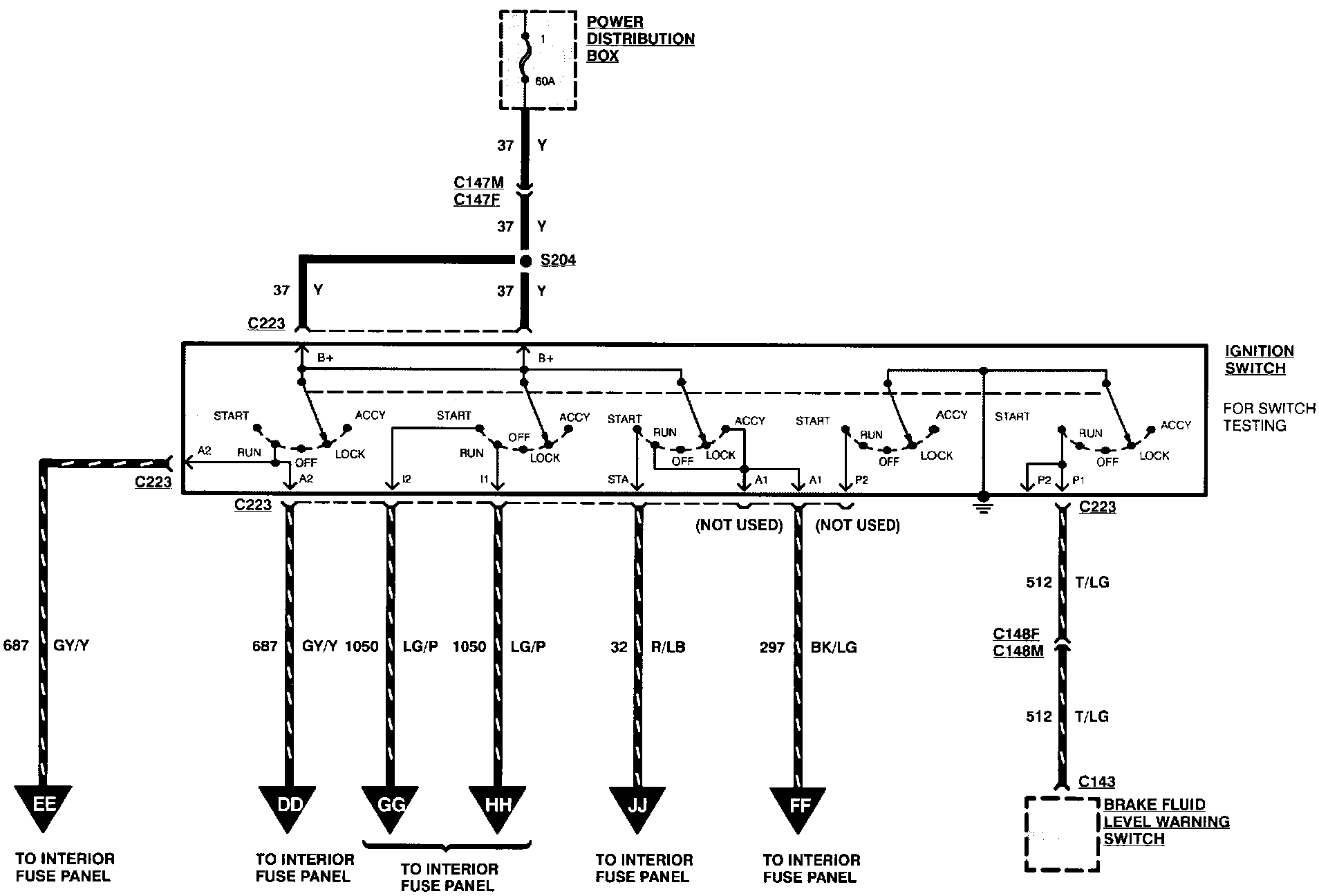

Fuse 1 - protects the following circuits:
^ Ignition Switch

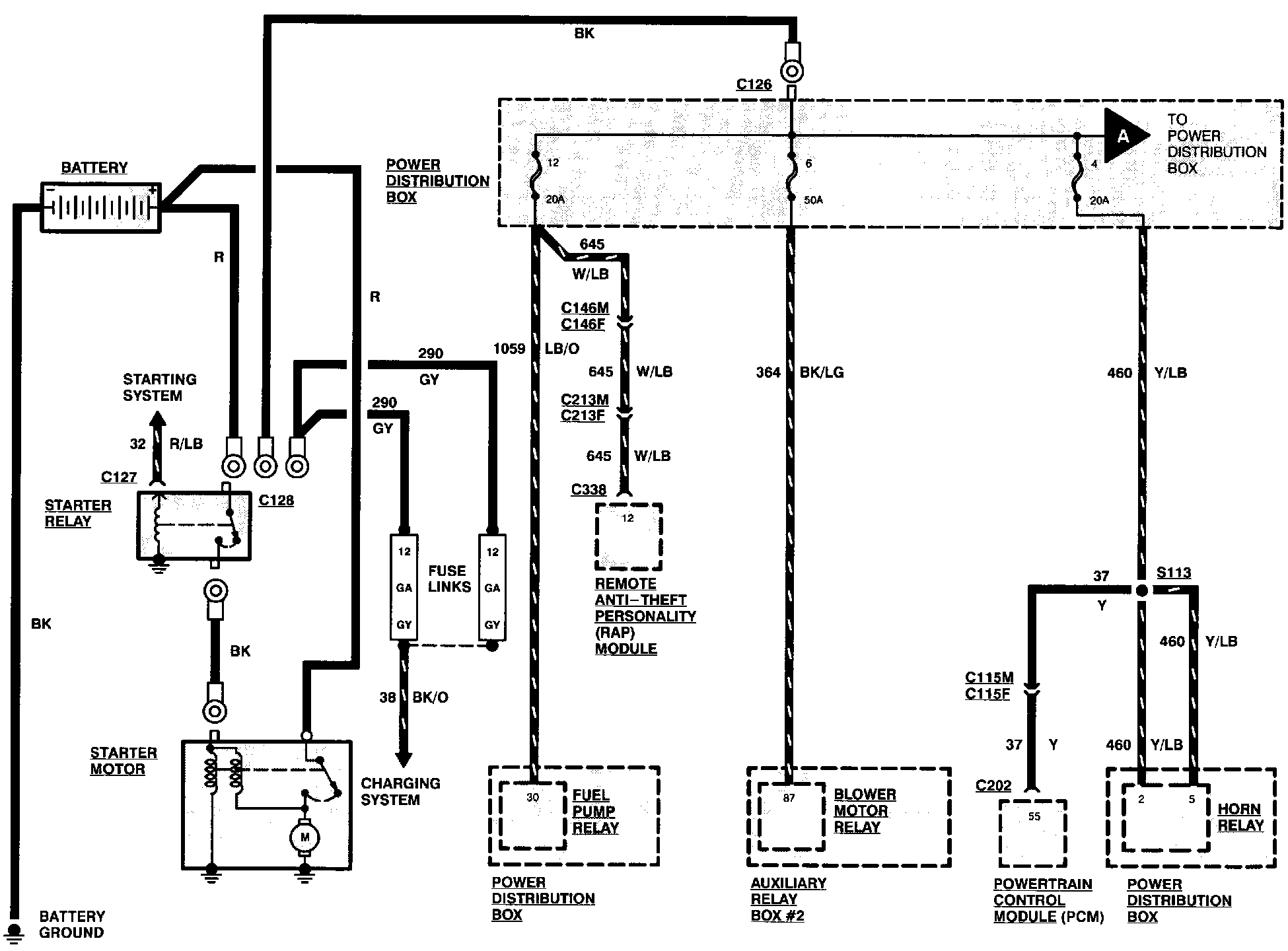

Power Distribution:

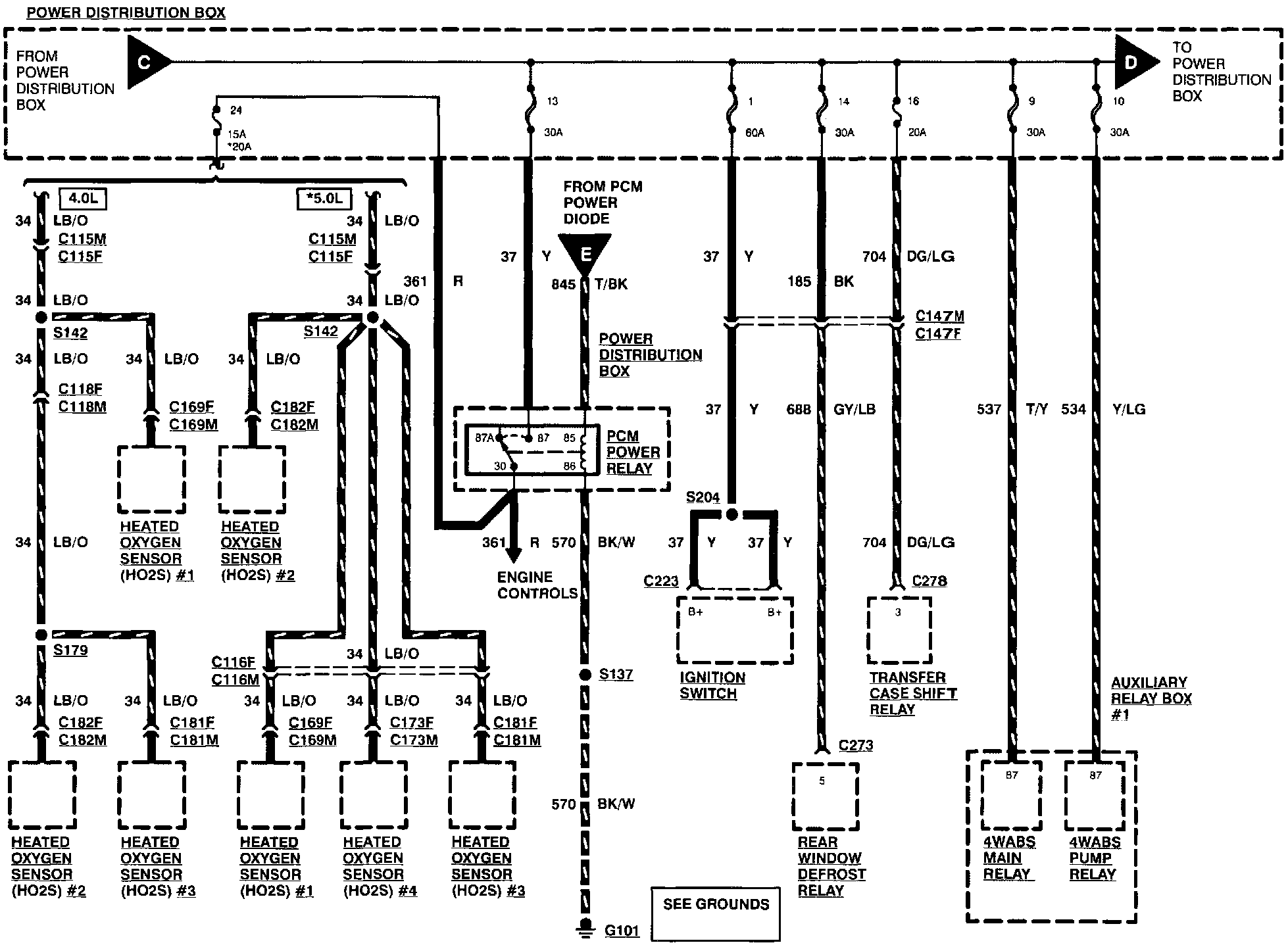

Power Distribution:




Power Distribution:
