Explorer 4WD V8-302 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Interior Fuse Panel
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Interior Fuse Panel

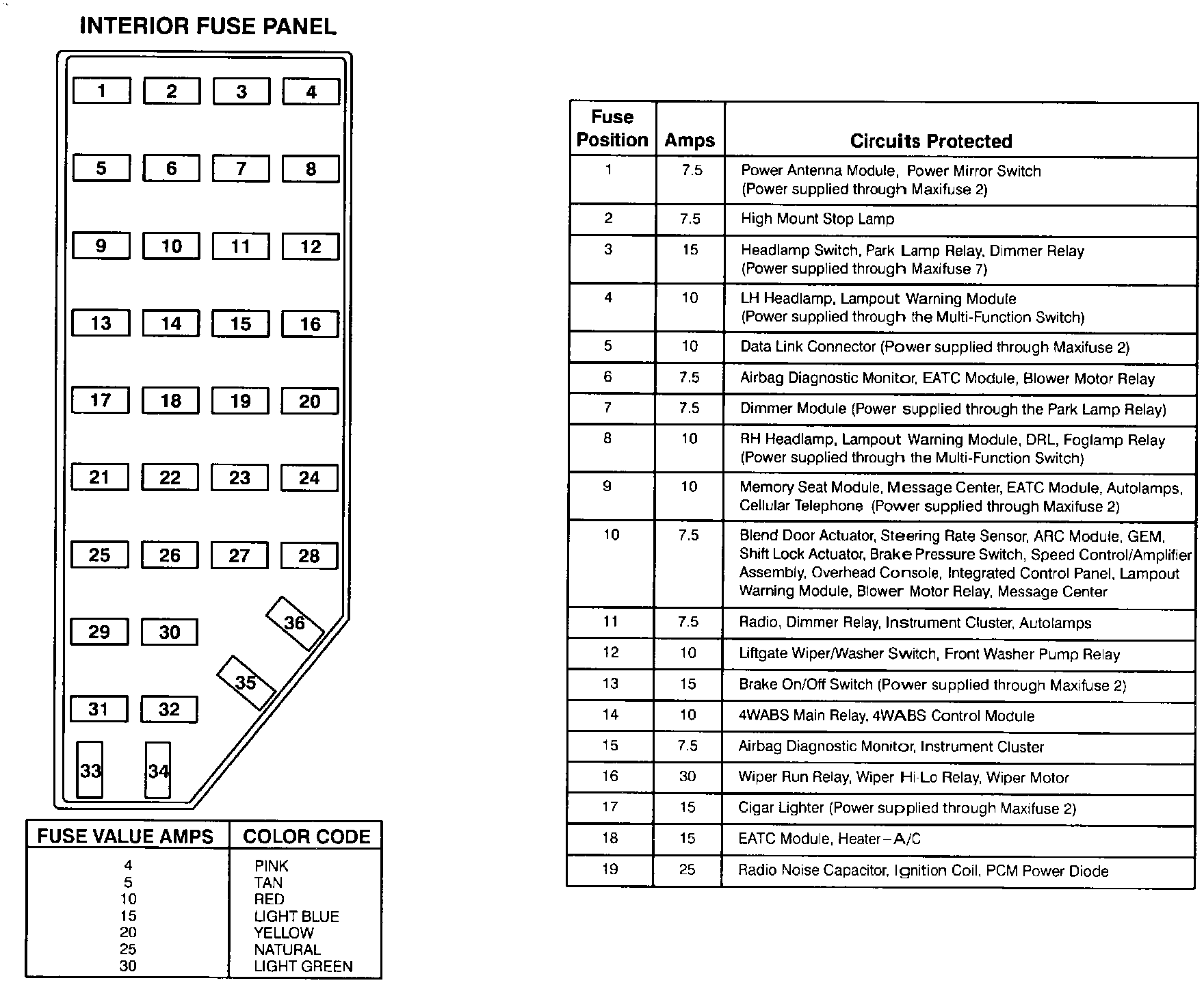

Interior Fuse Panel (Part 1 0f 2):

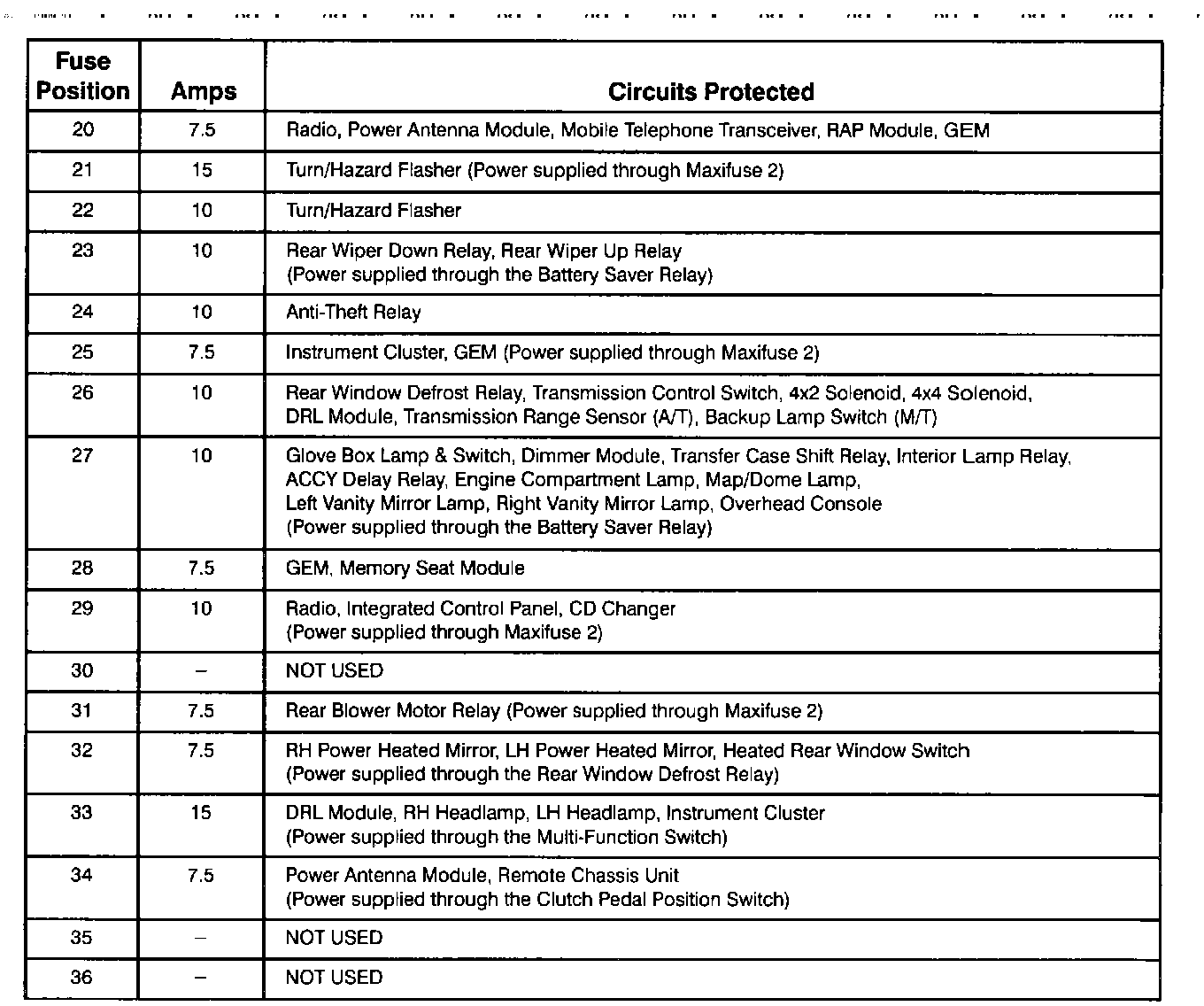

Interior Fuse Panel (Part 2 Of 2):
