Cargo Lamp
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Cargo Lamp

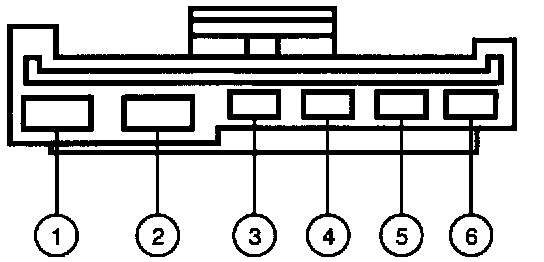

Pulse Width Dimmer/Cargo Lamp Switch:

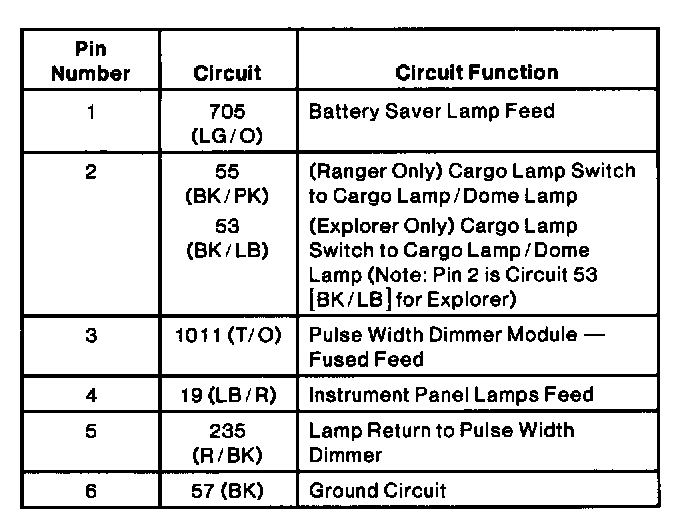

Pulse Width Dimmer/Cargo Lamp Switch:
