GEM Diagnostic Trouble Code Chart

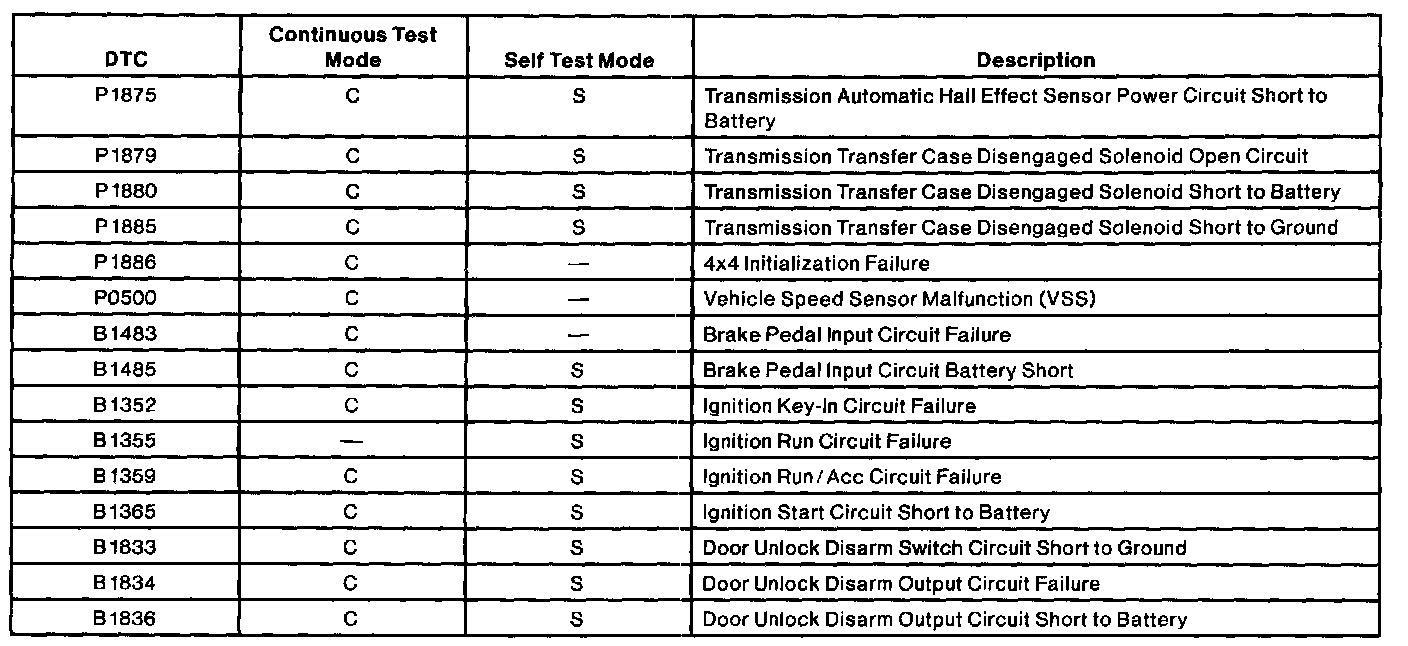

DTC Chart Part 1 Of 4:

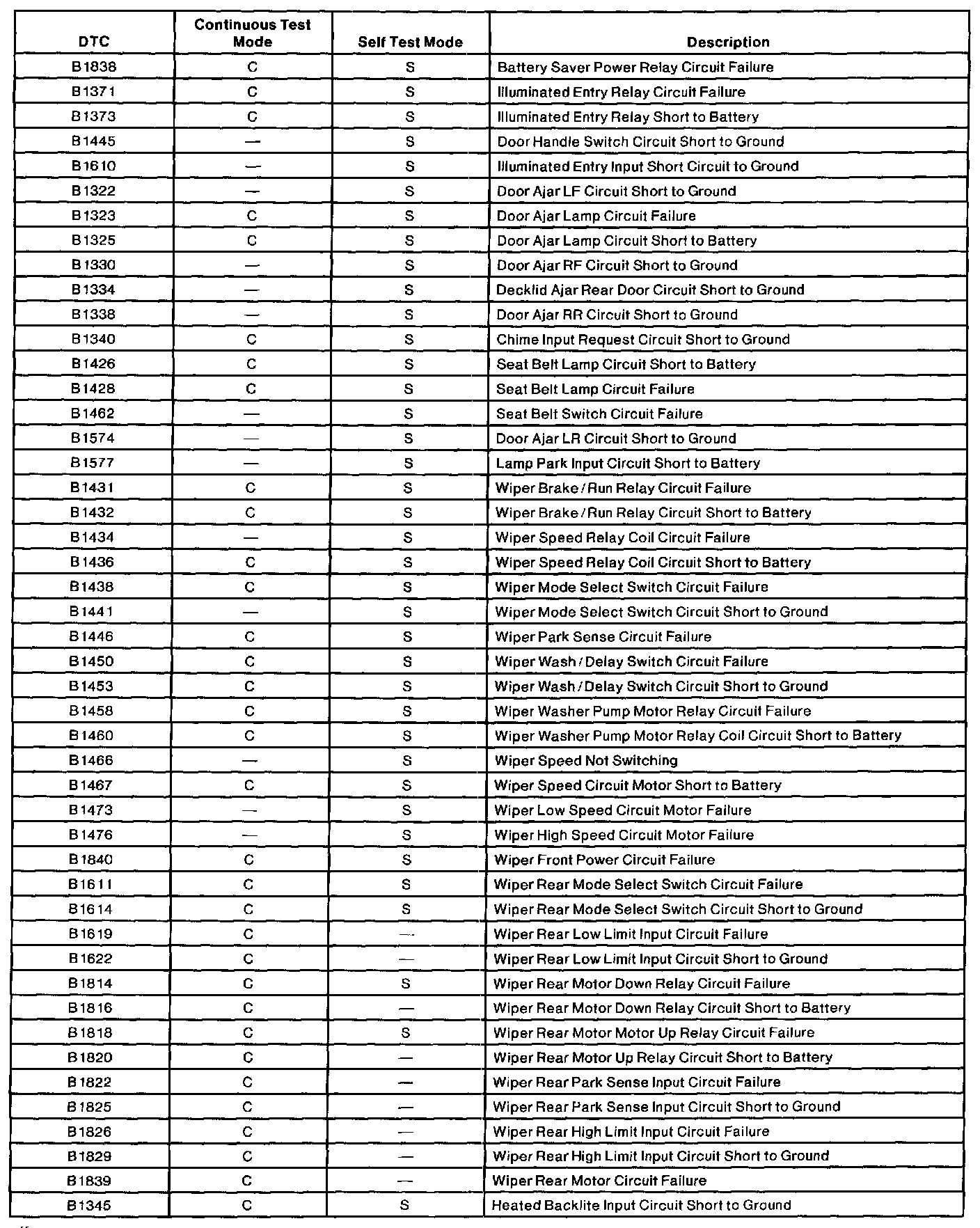

DTC Chart Part 2 Of 4:

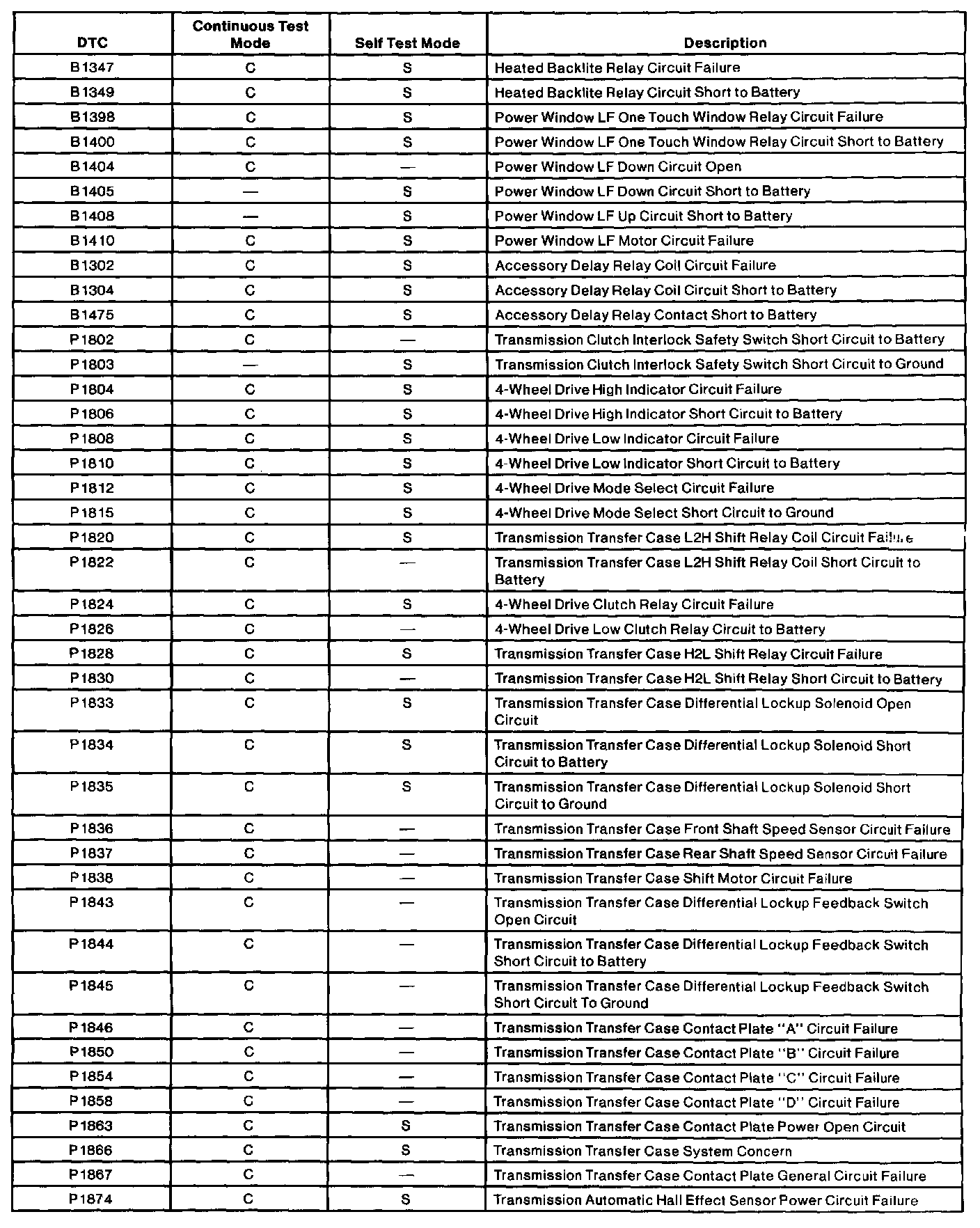

DTC Chart Part 3 Of 4:





DTC Chart Part 4 Of 4:





NOTE: If DTC B1342 is retrieved, replace the GEM.
