Power Distribution Box Identification (1995)

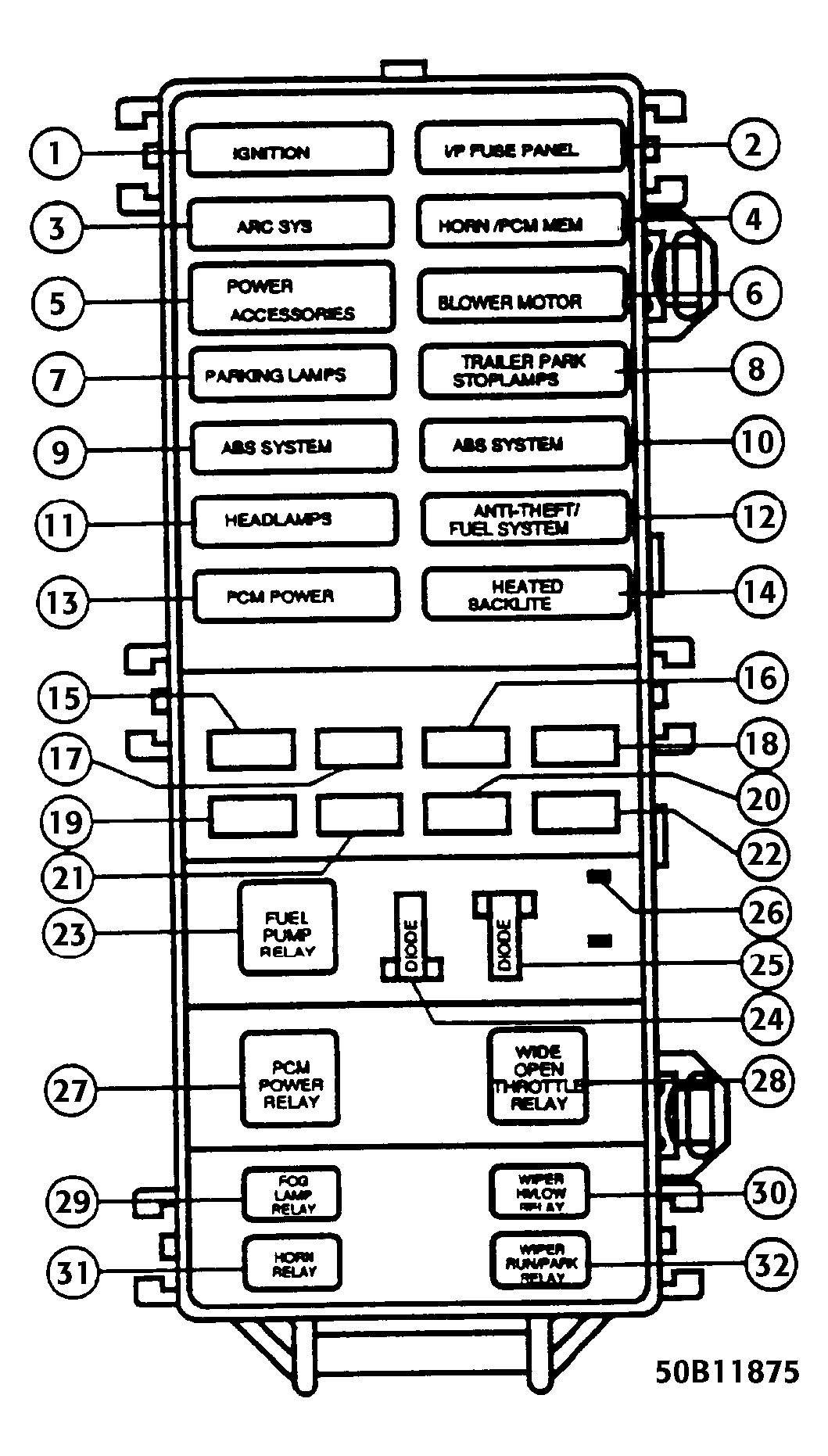

Fig 1: Power Distribution Box Identification (1995)

Courtesy of FORD MOTOR CO.

WARNING: Always disconnect battery ground cable before servicing high-current fuses. It is recommended that high-current fuses be replaced by a qualified technician.

Fuse & Circuit Breaker Identification

1 - 60 Amp (Blue) Ignition
2 - 60 Amp (Blue) Fuse Panel
3 - 50 Amp (Red) Automatic Ride Control Suspension (If Equipped)
4 - 20 Amp (Yellow) PCM Power, Horn
5 - 30 Amp (Circuit Breaker) Power Locks, Power Windows, Power Seats
6 - 50 Amp (Red) Blower Motor
7 - 20 Amp (Yellow) Parking Lamps
8 - 20 Amp (Yellow) Trailer Park/Stop Lamps (With Trailer Package)
9 - 30 Amp (Green) ABS System
10 - 30 Amp (Green) ABS System
11 - 20 Amp (Yellow) Headlights
12 - 20 Amp (Yellow) Fuel System, Anti-Theft System
13 - 30 Amp (Green) PCM Power
14 - 30 Amp (Green) Rear Window Defogger
15 - 15 Amp (Blue) Foglights, Offroad Lights, DRL System
16 - 20 Amp (Yellow) 4 Wheel Drive System
17 - 15 Amp (Blue) Alternator
18 - 15 Amp (Blue) Pusher Fan
19 - 10 Amp (Red) Air Bag System
20 - 30 Amp (Green) Power Point
21 - 15 Amp (Blue) Rear Wiper
22 - 30 Amp (Green) JBL System
23 - Fuel Pump Relay
24 - Diode Rear Wheel Anti-Lock
25 - Diode PCM
26 - Diode ABS
27 - PCM Power Relay
28 - W.A.C. Relay
29 - Fog Lamp Relay
30 - Wiper Hi-Lo Relay
31 - Horn Relay
32 - Wiper Run Relay
